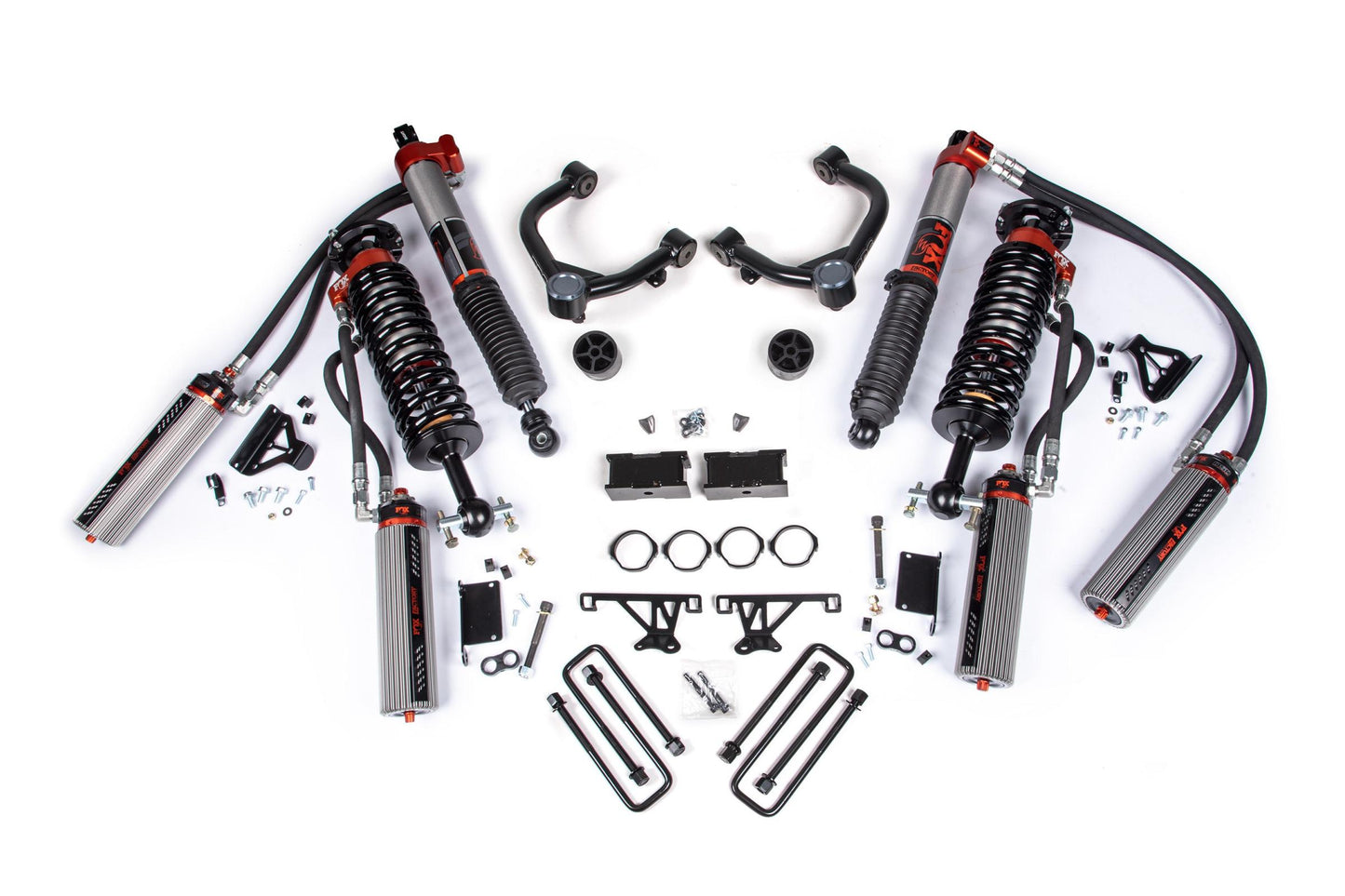

1.5 Inch Lift Kit - Fox Factory Race 3.0 IBP Coil Over Front- 3.0 IBP Rear - 2019-2024 GM 1500 Trail Boss/AT4 - 4wd
1.5 Inch Lift Kit - Fox Factory Race 3.0 IBP Coil Over Front- 3.0 IBP Rear - 2019-2024 GM 1500 Trail Boss/AT4 - 4wd
BDS Suspension:
Part #
BDS-BDS774FRS
UPC #
Regular price
$8,071.85 USD
Regular price
$8,071.85 USD
Sale price
$8,071.85 USD
Unit price
/
per
Product Description
Product Description
Built for strength performance and increased travel these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Builds off factory suspension geometry for improved performance with easy install.
- Optional weld on steering stops to help tire clearance to fenders control arms etc. Dependent upon wheel offset selected.
- Factory Protection Plus included.
- Front FOX 3.0 Factory Race Series IBP coil overs for unmatched performance and capability with simple adjustment of settings.
- Rear FOX 3.0 Factory Race Series IBP shocks for improved ride quality performance and capability.
- BDS HD upper control arms for strength and increased suspension travel.
- High misalignment angle greaseable heavy duty ball joints.
- Rubber control arm bushings to promote long life and no maintenance of the joint.
- Anodized ball joint cap to seal the top of the control arm ball joint cup from dirt and debris.
- Rear lift block kit to produce a level to slightly tail height stance.
- 1/4" wheel spacer provided to be used with the spare tire if needed.
Attributes
Attributes
- GTIN: 00840416421200
- Brand Name: BDS Suspension
- Front Lift Height: 3_5
- Front Lift Method: Coil Over
- Installation Difficulty: moderate
- Installation Time: 3-4 Hrs
-
Pvg Replacementparts:
BDS081203 - Ball Joint replacement kit.
- Rear Lift Height: 2_5
- Rear Lift Method: Block
- Rear Lift Option: 2 Inch Block Kit
- Shocks Included0: Yes
Extended Information
Extended Information
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information
Packing Information
- Quantity of Each: 1
- Package UOM: EA
- Weight: 0 lb
