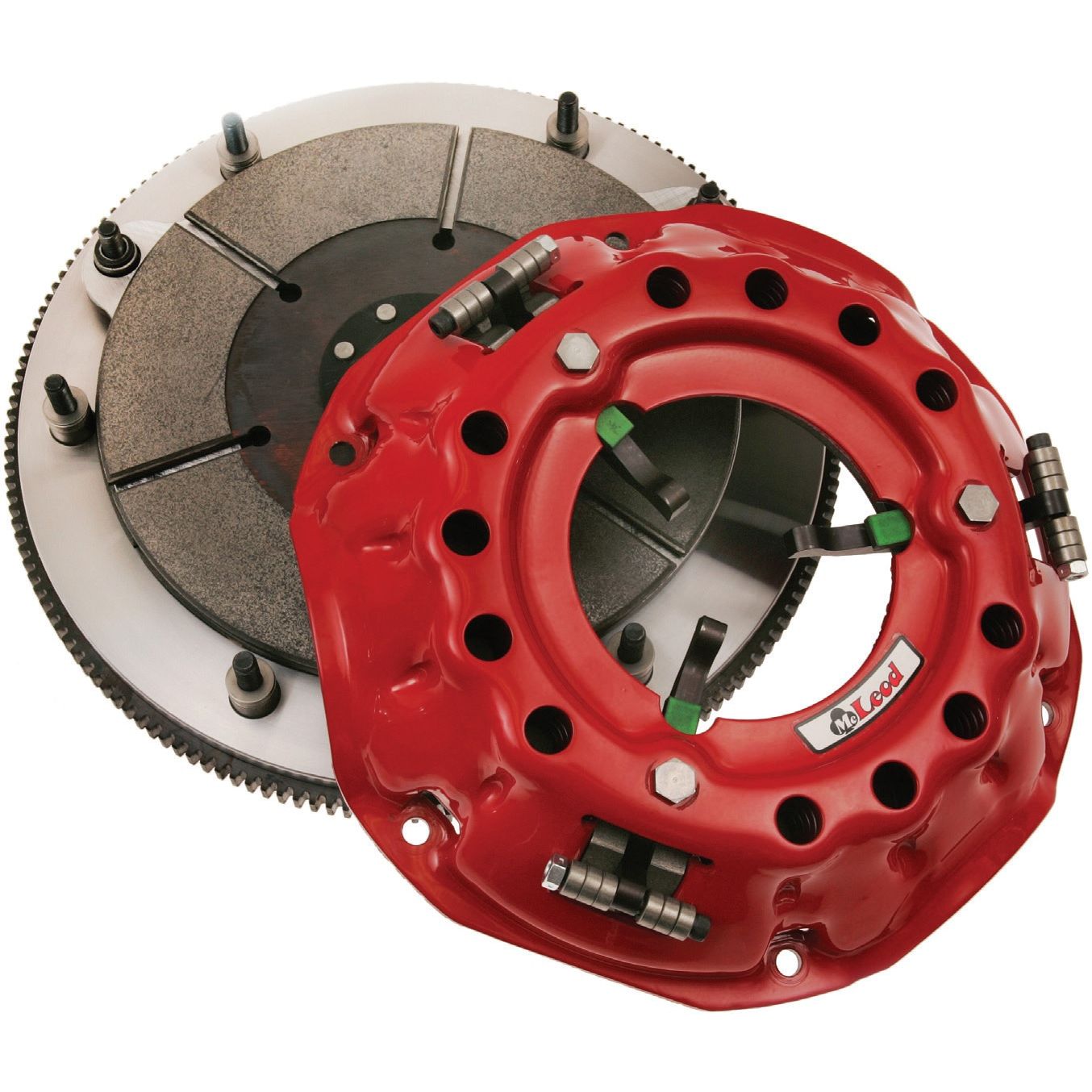

McLeod 4400 Series Truck Pull: 1963-95 SBF:1-3/8 x 10:0 Balance:164T:Each 4461-06

The 4400 Series clutch system from McLeod is ideal for truck puller and high horsepower sand drag applications. Recommended for non shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly,unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM. Kits Include: Steel flywheel, 2 LCF sintered iron discs, floater plate & Borg & Beck Long Pressure plate.

• McLeod Racing Truck Pull Twin clutches complete with billet steel flywheel (2) 5191 compound sintered iron discs and a Borg & Beck pressure plate.

Attributes:

• GTIN: 00887753677792
• Brand Name: McLeod
• Make: Ford
• Application: Truck Pull
• Engine 1: 1963-1995 SBF 289/302/351
• Engine 2: 0 Balance
• Engine 3: 563333 (Sold Separately)
• Engine Balance: Billet Steel
• Counter Weight Kit: 164T
• Flywheel Material: 1-3/8 x 10
• Ring Gear: 10.5In.
• Input-shaft Spline: 5191 Sintered Iron
• Disc Diameter: Billet Aluminum with Steel Heat Shield
• Disc Material: Adjustable
• Casting Material (Donut): Billet Steel
• Counter-weighted Lever: Adjustable
• Lever Material: Billet Steel

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 17 x 16 x 5.5 inches
• Weight: 65.3 lb
