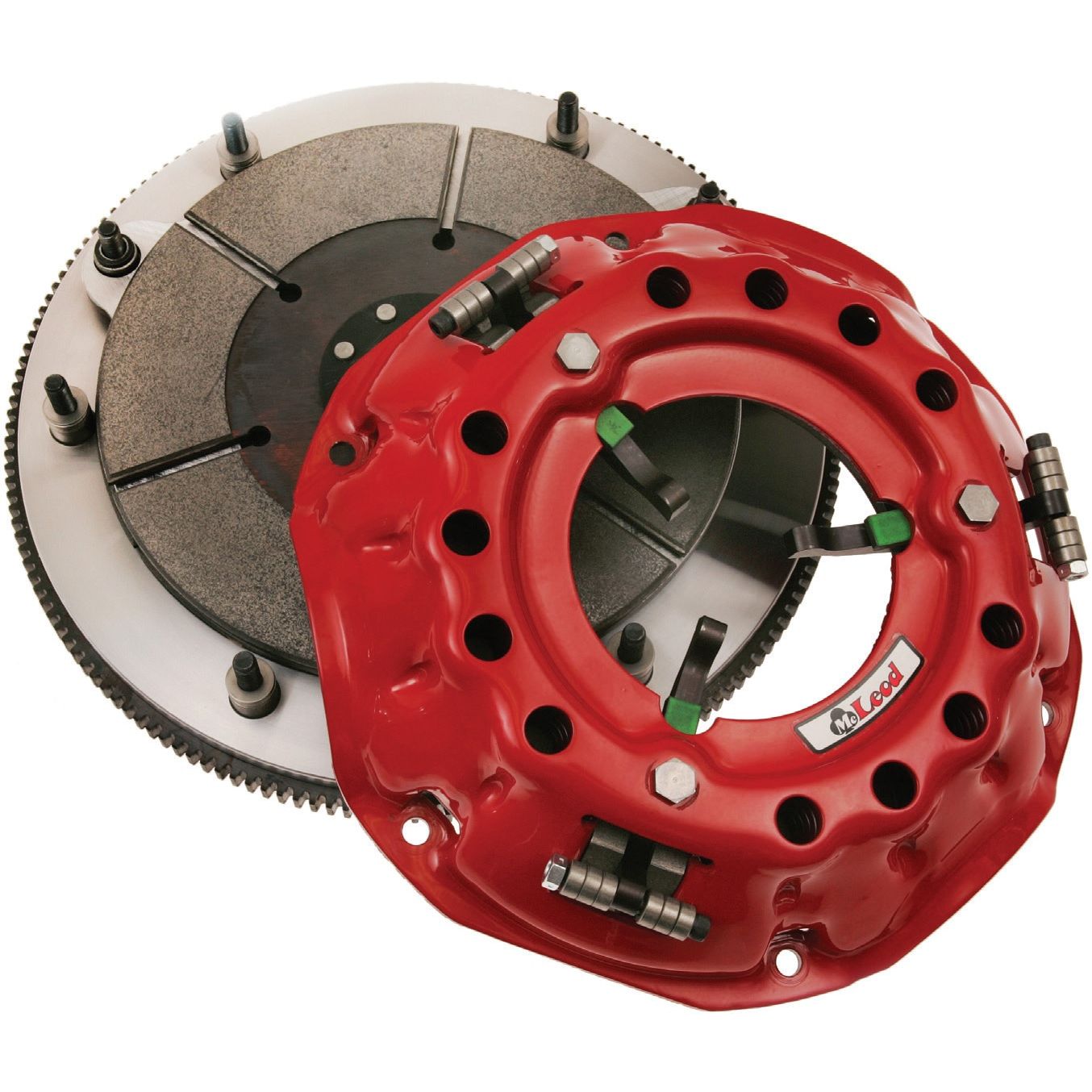

McLeod 4400 Series Truck Pull:318-440:1 x 23:0 Bal:130T:Each 4423-02

The 4400 Series clutch system from McLeod is ideal for truck puller and high horsepower sand drag applications. Recommended for non shifting motorsport applications. This series features a Borg & Beck/Long pressure plate assembly,unique to McLeod that also includes counterweights providing additional high RPM lockup capacity. Steel flywheels are included with these systems along with low coefficient friction sintered iron discs. Due to the pin style drive on the floater plate, these multi disc clutches are not suitable for street applications as they will be very noisy at idle and low RPM. Kits Include: Steel flywheel, 2 LCF sintered iron discs, floater plate & Borg & Beck Long Pressure plate.

• McLeod Racing Truck Pull Twin clutches complete with billet steel flywheel (2) 5191 compound sintered iron discs and a Borg & Beck pressure plate.

Attributes:

• GTIN: 00887753677860
• Brand Name: McLeod
• Engine 1: 1964-1999 SBC 318-440
• Engine Balance: 0 Balance
• Counter Weight Kit: 564111 (Sold Separately)
• Flywheel Material: Billet Steel
• Ring Gear: 130T
• Input-shaft Spline: 1 x 23
• Disc Diameter: 10.5In.
• Disc Material: 5191 Sintered Iron
• Casting Material (Donut): Billet Aluminum with Steel Heat Shield
• Counter-weighted Lever: Adjustable
• Lever Material: Billet Steel
• Make: Mopar
• Application: Truck Pull

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 17 x 16 x 5.5 inches
• Weight: 65.3 lb
