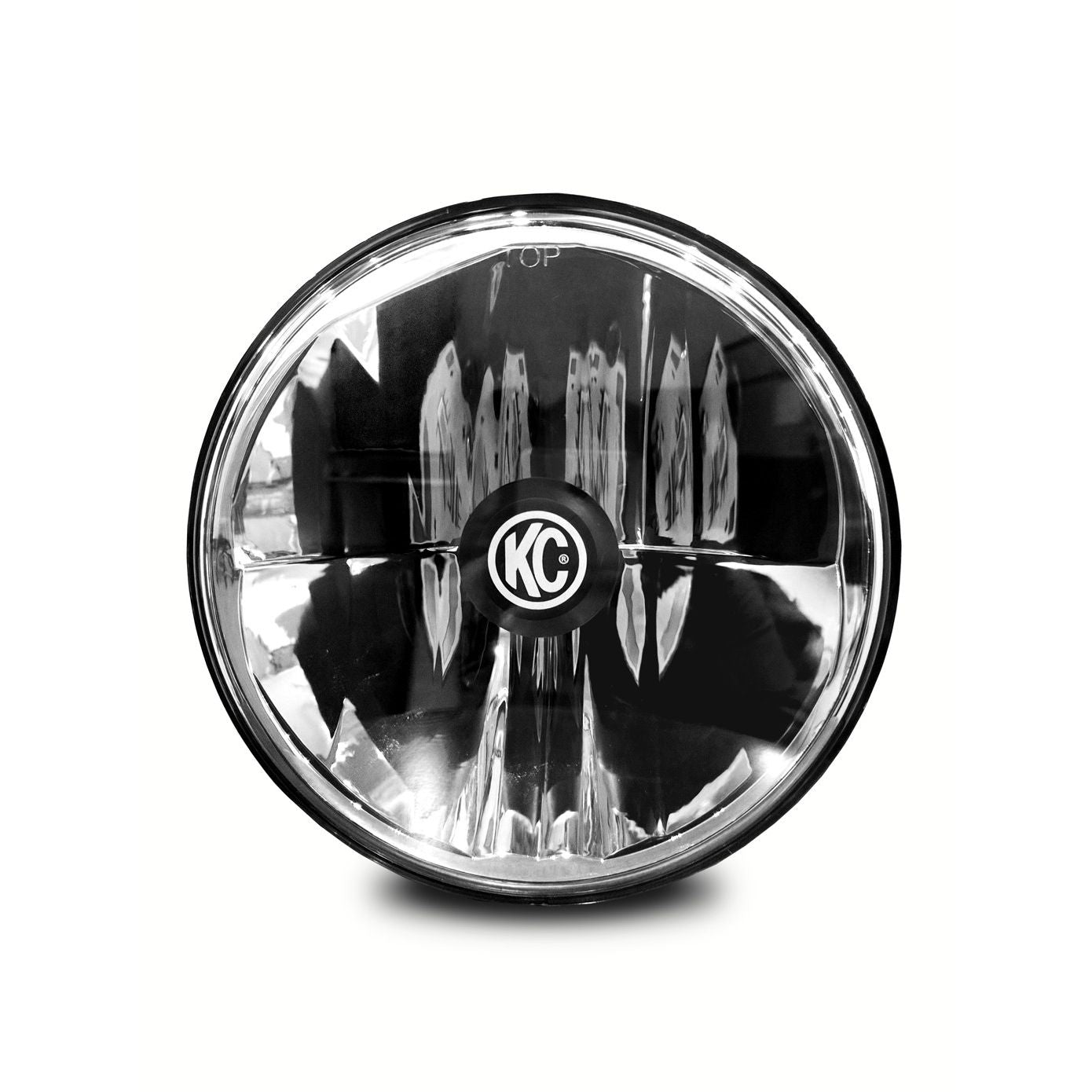

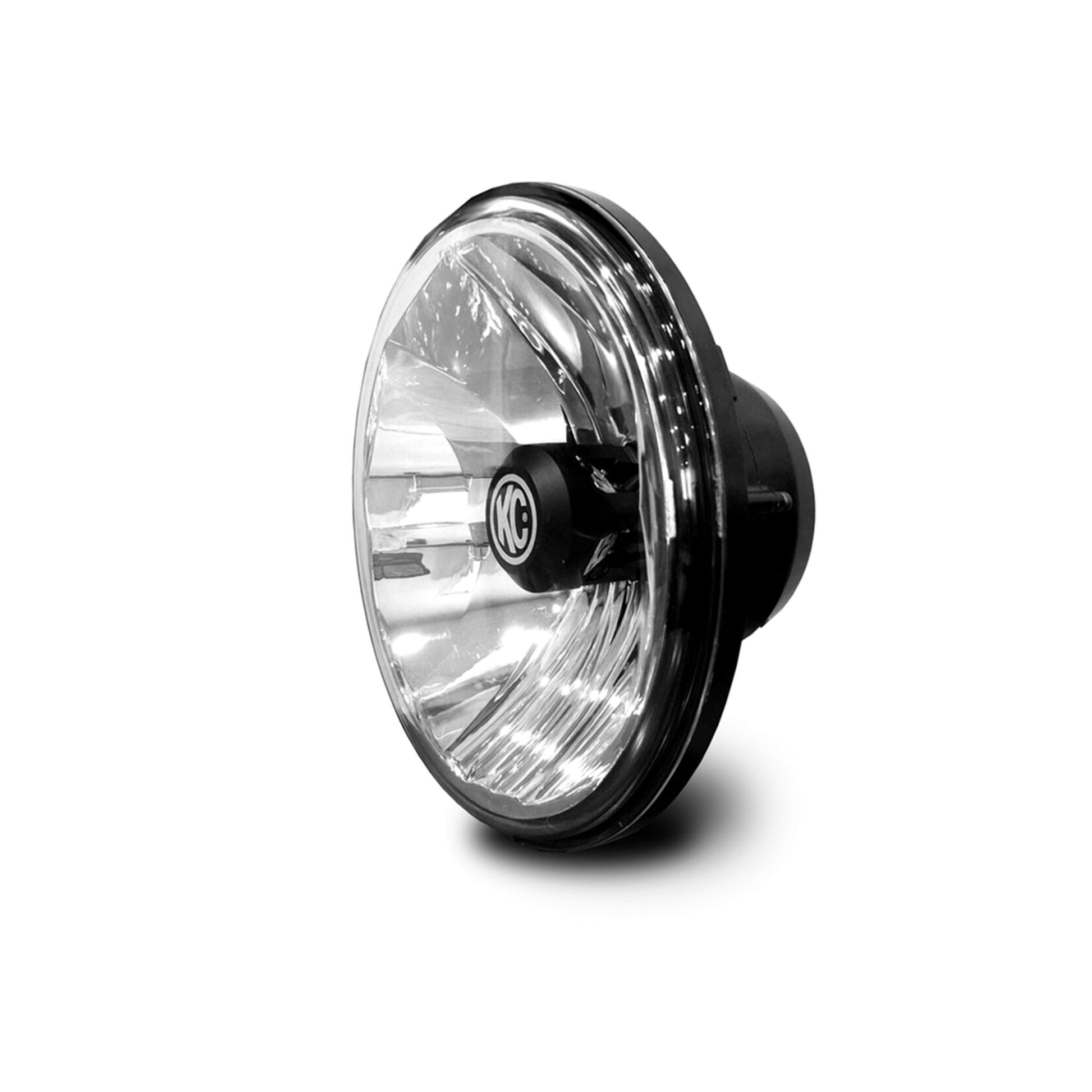

KC HiLiTES 7 in Gravity LED - Single Headlight - SAE/ECE - 40W Driving Beam - for 07-18 Jeep JK 4235

Gravity(R) LED 7 in Headlights feature KC's patented Gravity(R) Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.Compliance: D.O.T.D.O.T. Approved Beam3Position OnOffAmber SettingsHard Coated Polycarbonate LensHigh/Low Beam Function KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 2007-2018 Jeep Wrangler JK headlights. Surrounding our Gravity(R) LED 7 in Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.

• DOT Compliant Low Beam, High Beam and Day Running Light
• Hard Coated Polycarbonate Lens
• KC Engineered Polished Reflector Optics

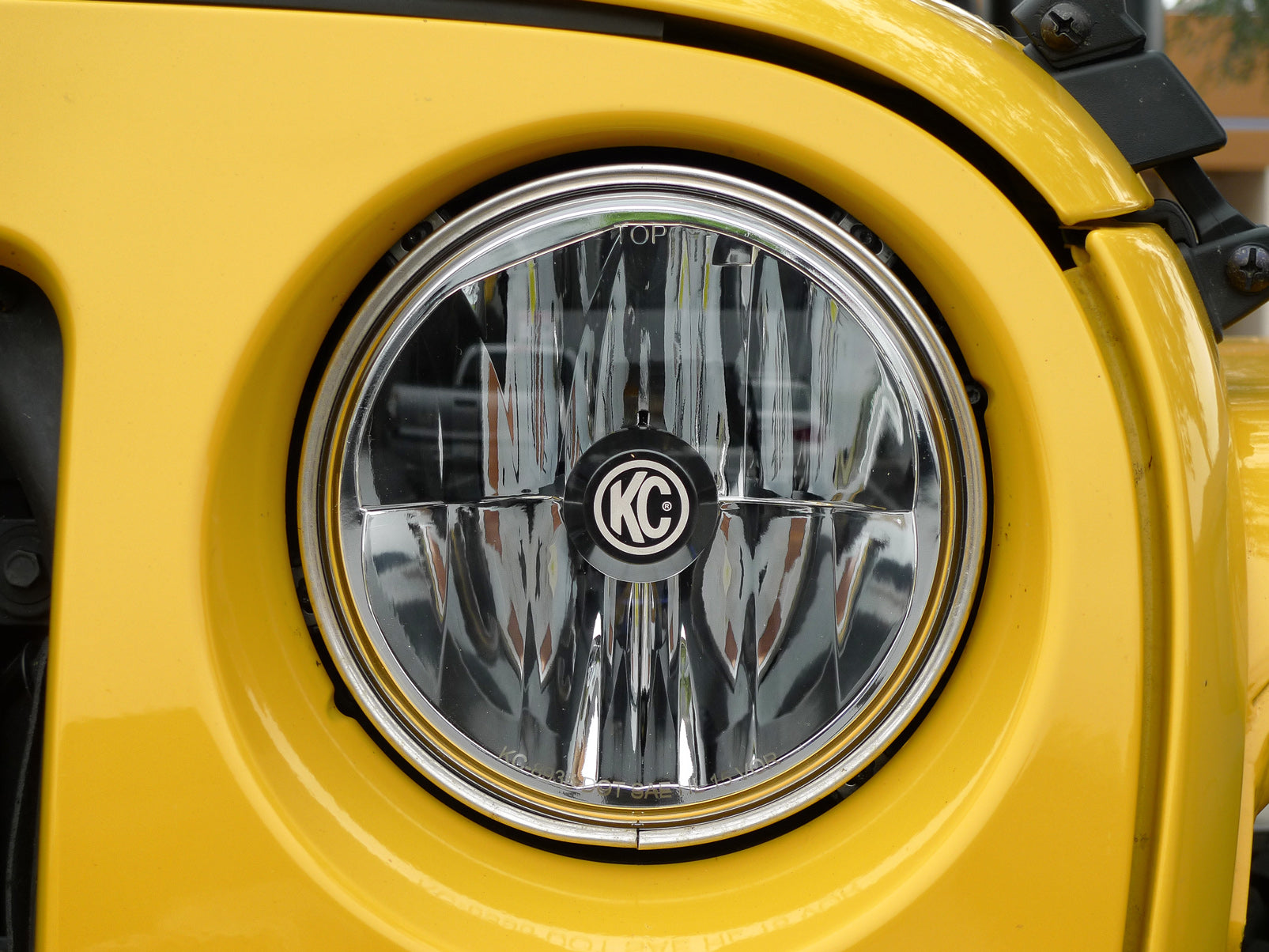

• Full Plug-n-Play for 07-18 Jeep JK Wrangler
• Precision Die-Cast Aluminum Housing

Attributes:

• GTIN: 00084709042356
• Brand Name: KC HiLiTES
• Add-On: N/A
• Amp Draw: 1.88A
• Beam Distance (Meters): Low 407m, High 557m
• Beam Pattern: Headlight
• Candela: Low- 41,500 Cd, High- 77,500 Cd
• Color Temperature: 5000K
• Compliance: SAE J851 ECE-R112
• IP Rating: IP68
• LED Bulb: CREE XHP35 HI and Nichia
• LED Source: CREE XHP35 HI and Nichia
• Light Temp: 5000K
• Lumens: 1260
• Lux at 10 Meters: Low 415 lx, High 775 lx
• Lux at 10 Meters: Low 415 lx, High 775 lx
• Lux: Low- 415, High- 775
• Parts Included: Plug-n-Play H13 Connector for Jeep JK
• Product Dimensions: W 6.96 in x D 3.72 in
• Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
• Voltage: 9V-18V
• Wattage: Low- 18W, High- 22W

Extended Information:

• Country of Origin: Taiwan
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7.25 x 7.25 x 7 inches
• Weight: 3 lb
