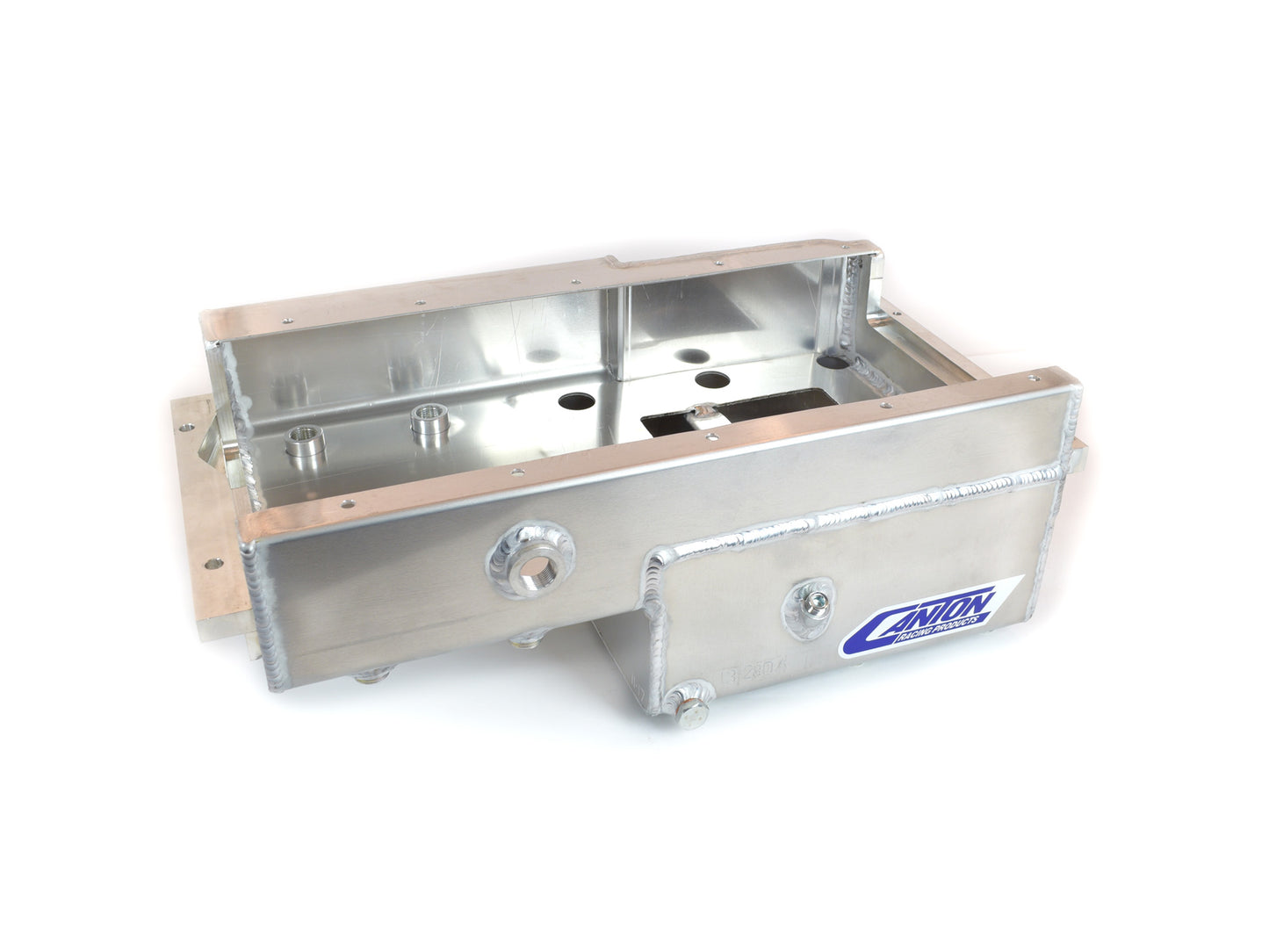

Canton 13-280A Oil Pan Dart LS Next Rear Sump Drag Race Pan

CANTON:

Part # CANTON-13-280A
UPC # 00887753711755

$1,227.00 USD

~~$1,619.64 USD~~ $1,227.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Product Description

Our LS NEXT rear sump drag pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our billet end caps offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-Style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our drag racing baffle is designed to control the oil in street and strip applications of hard acceleration and deceleration.

5.25" Deep from rear engine cover, 7.25" Deep from rail 11" long by 11" wide sump
6.5 qt Capacity
Pro Style Oil Recovery Pouch
Machined Billet Front & Rear Seals
Built in Slosh Baffle
Drag Race Trap Door Baffle System
Magnetic Drain Plug
Provision for pan mounted dipstick

Attributes

GTIN: 00887753711755
Brand Name: Canton
Baffled: Yes
Finish: Raw Aluminum
Recommended Accessory 4: 22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
Recommended Accessory 3: 22-304 - LS NEXT Oil Pan Stud Kit
Recommended Accessory 2: 21-870 - LS Flywheel Cover for T56 Bellhousing
Recommended Accessory 1: 13-281 - LS Next Pickup for #13-280
Pickup Included: No
Material: .100 Aluminum
Kicked Out: No
Hardware Included: No
Gasket or Seal Included: No
Feature 6: Magnetic Drain Plug
Capacity: 6.5 Quarts
Feature 5: Provision For Pan Mounted Dipstick
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 3: Double Trap Door Baffles
Feature 2: Machined Billet Front & Rear Seals
Feature 1: Pro-Style Recovery Pouch
Engine: Dart LS Next
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
