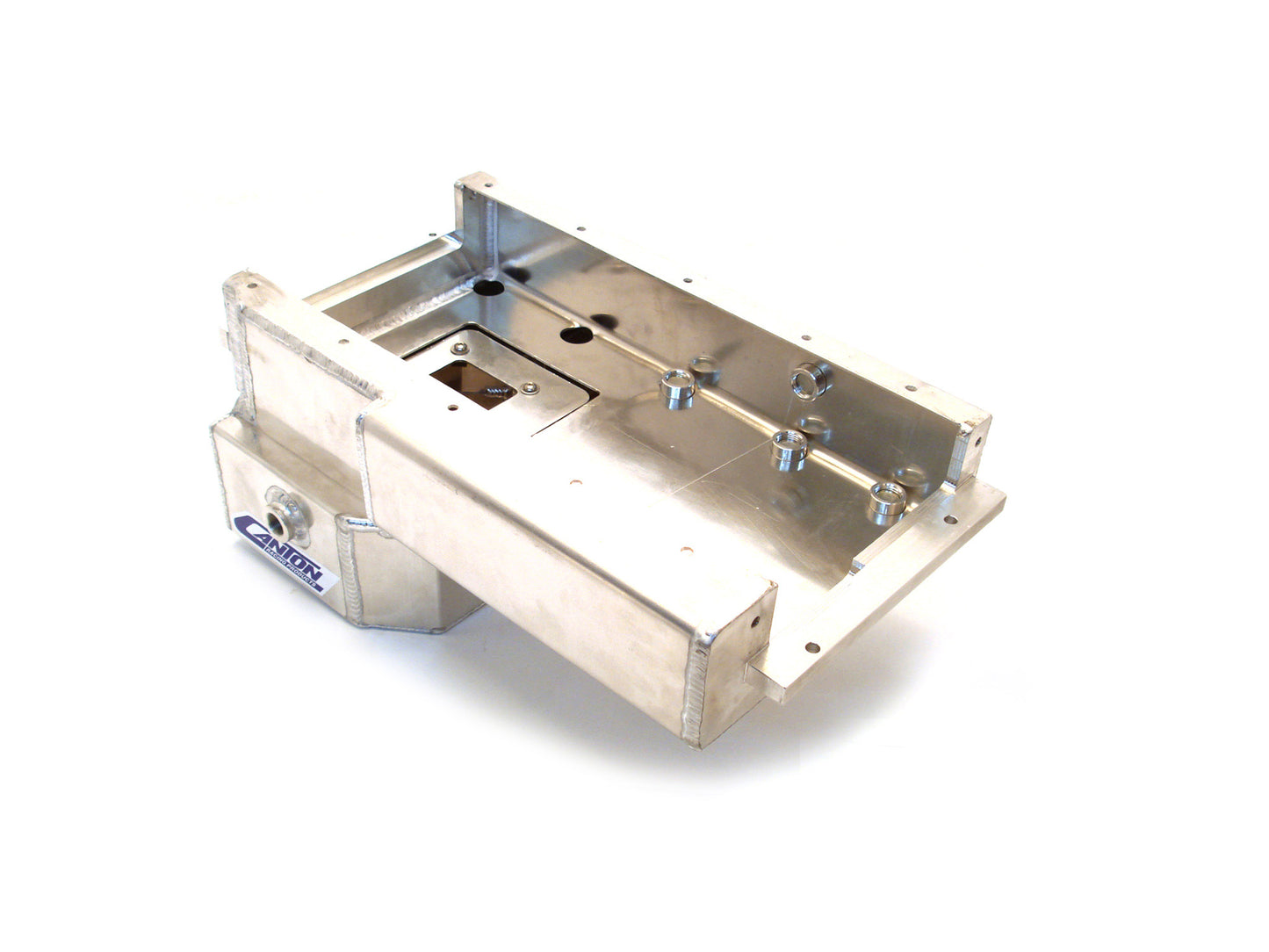

Canton 15-284A Oil Pan Dart LS Next Rear Sump Road Race Pan

CANTON:

Part # CANTON-15-284A
UPC # 00887753712370

$1,389.00 USD

~~$1,833.48 USD~~ $1,389.00 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Product Description

Our LS NEXT rear sump road race oil pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our pan features billet end caps that offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our diamond shape trap door baffle along with our anti-slosh baffle allow for maximum oil control in high performance driving situations.

Designed to fit most rear sump applications
6.5 qt System Capacity
Pro Style Oil Recovery Pouch
Machined Billet Front & Rear Seals
Removable Windage Anti-Slosh Baffle
Diamond Shape Road Race Trap Door Baffle System
20mm Bung for Low Oil Warning Sensor
Magnetic Drain Plug
Provision for pan mounted dipstick

Attributes

GTIN: 00887753712370
Brand Name: Canton
Baffled: Yes
Gasket or Seal Included: No
Recommended Accessory 5: 22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
Recommended Accessory 4: 22-405 - Plug for 20mm bung if low oil warning sender is Not used
Recommended Accessory 3: 22-304 - LS NEXT Oil Pan Stud Kit
Recommended Accessory 2: 21-870 - LS Flywheel Cover for T56 Bellhousing
Recommended Accessory 1: 15-285 - Dart LS NEXT rear sump pickup for 15-286A pan
Pickup Included: No
Material: .100 Aluminum
Kicked Out: Yes
Hardware Included: No
Finish: Raw Aluminum
Capacity: 6.5 Quarts
Feature 6: Magnetic Drain Plug
Feature 5: Provision for Pan Mounted Dipstick
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 3: Diamond Shape Baffle Assembly
Feature 2: Machined Billet Front & Rear Seals
Feature 1: Pro-Style Recovery Pouch
Engine: Dart LS Next
Drain Plug Included: Yes
Dipstick Port: No
Crank Scraper Included: No
Windage Tray Included: No
