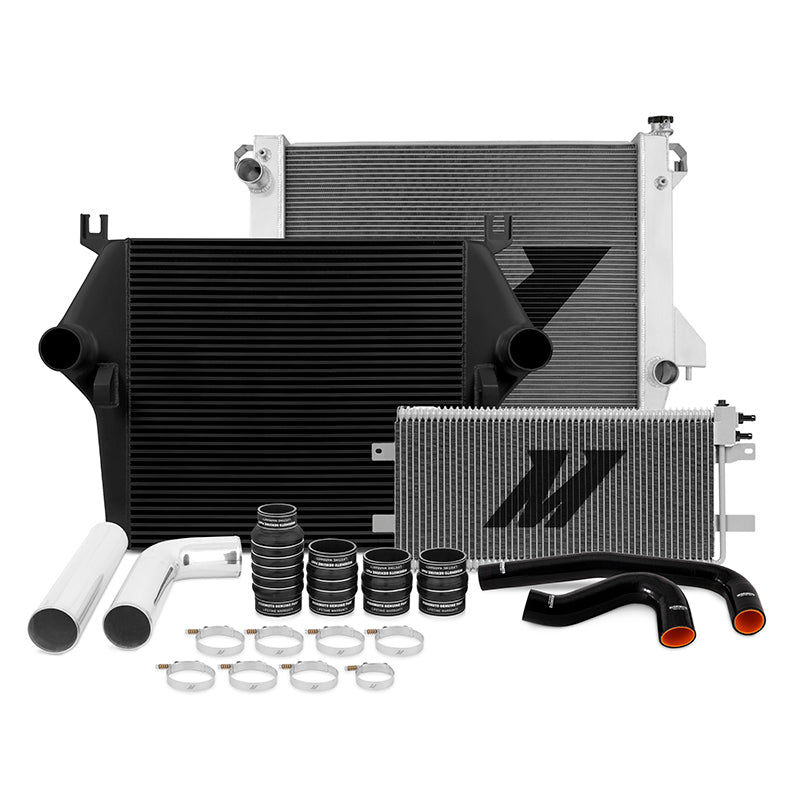

Mishimoto Dodge Ram 5.9L Cummins Essential Bundle, 2007.5-2009 MMB-RAM-003

If your 2003-2007 Dodge Ram 5.9L Cummins is lacking cooling, Mishimoto has the solution. Our heavy-duty bundle contains all the cooling products you need to get the most out of your 3rd Gen Ram. Included in this bundle is our Mishimoto aluminum radiator, transmission cooler, intercooler with pipe and boot kit, and silicone radiator hose kit.Our all-aluminum radiator has durable TIG-welded end tanks that are strong enough to withstand anything the road can throw at it. The two-row core ensures efficient cooling, while still fitting like stock. The included 1.3 bar high-pressure radiator cap and magnetic drain plug make sure coolant stays clean and where it belongs. We’ve also included our silicone radiator hoses. These hoses are constructed from four layers of silicone and heat resistant fibers for greater heat and pressure tolerance. Just like the radiator, these hoses fit like stock without any trimming.The Mishimoto transmission cooler gives your Ram a 212-percent increase in core volume and 244-percent increase in fluid capacity over stock for maximum cooling. The fully serviceable thermostat with included bypass means that whether you live in a cold or hot environment, you never have to worry about a stuck thermostat ever again.Finally, we’ve injected some cool air into this bundle with the addition of our performance intercooler and intercooler pipe kit. The Mishimoto intercooler is over 30-percent thicker than the stock intercooler for an impressive 30-percent increase in core volume. That extra volume and cooling capacity translates to intake air temps up to 10-percent cooler than with the stock intercooler. Our intercooler pipes are all-aluminum and mandrel bent for maximum durability and flow, while our intercooler pipe boots with DuraCore™ technology add even more durability and blowout protection.Like all of our Dodge Ram Cummins parts, this 2003-2007 Dodge Ram 5.9L Cummins Heavy-Duty Bundle is protected by our Mishimoto Lifetime Warranty.

• Direct fit for 2007.5-2009 Dodge Ram 6.7L Cummins
• Includes Mishimoto aluminum radiator, transmission cooler, intercooler with pipe and boot kit, and silicone coolant hose kit
• Mishimoto radiator provides increased fluid capacity for optimal heat dissipation
• Transmission cooler increases core volume by 212% and fluid capacity by 244% over stock
• Transmission cooler includes fully serviceable thermostat for fast warmup in cold climates and thermostat bypass for constant cooling in hot climates
• The Mishimoto intercooler is over 30% larger than the stock intercooler
• Intercooler reduces intake air temps by up to 10% compared to the stock intercooler
• Mandrel-bent aluminum intercooler pipes and boots with DuraCore™ technology for superior durability and flow
• Hoses are constructed from high-grade silicone with heat-resistant embedded fibers for superior heat and pressure tolerance
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00811580037191
• Brand Name: Mishimoto
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (ins): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Height (in): N/A
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Rows: N/A
• TechSpec Inlet (in): N/A
• TechSpec Outlet (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec DPI: N/A
• TechSpec Material: N/A
• TechSpec Applications: Dodge Ram 2500 I6 (6.7L) 2007-2009--Dodge Ram 3500 I6 (6.7L) 2007-2009--Dodge Ram 4500 I6 (6.7L) 2008-2009--Dodge Ram 5500 I6 (6.7L) 2008-2009
• TechSpec Engine Codes: N/A
• TechSpec Chassis Codes: N/A
• TechSpec Note: Note This kit requires cutting of the stock transmission cooler lines to remove the quick-disconnect fittings. Mishimoto provides CNC-machined stainless steel hose barb fittings to splice the supplied transmission cooler line with the stock soft-lines. Please see installation instructions for more details.
• TechSpec Includes: Mishimoto Radiator-- Mishimoto Stacked-Plate Transmission Cooler-- Mishimoto Intercooler--(2) Aluminum Intercooler Pipes--(4) Silicone Boots with DuraCore™ Technology--(2) Silicone Hoses--(2) High-Pressure Transmission Cooler Lines-- Removable Thermostat-- Removable Thermostat Bypass--(2) CNC-Machined Stainless Steel Barbed Fittings--(2) CNC-Machined Aluminum 3/4-inch-16 ORB to Hose Barb Fittings--(8) Constant Tension T-Bolt Clamps--(6) Worm Gear Clamps-- Mishimoto Radiator Cap-- Mishimoto Magnetic Drain Plug--(2) Aluminum Mishimoto M Logo Badges--Mounting Hardware--Mishimoto Lifetime Warranty
• SellingPoint01: Direct-fit for 2007.5-2009 Dodge Ram 6.7L Cummins
• SellingPoint02: Includes Mishimoto aluminum radiator, transmission cooler, intercooler with pipe and boot kit, and silicone coolant hose kit
• SellingPoint03: Mishimoto radiator provides increased fluid capacity for optimal heat dissipation
• SellingPoint04: Transmission cooler increases core volume by 212-percent and fluid capacity by 244-percent over stock
• SellingPoint05: Transmission cooler includes fully serviceable thermostat for fast warm-up in cold climates and thermostat bypass for constant cooling in hot climates
• SellingPoint06: The Mishimoto intercooler is over 30-percent larger than the stock intercooler
• SellingPoint07: Intercooler reduces intake air temps by up to 10-percent compared to the stock intercooler
• SellingPoint08: Mandrel-bent aluminum intercooler pipes and boots with DuraCore technology for superior durability and flow
• SellingPoint09: Hoses are constructed from high-grade silicone with heat-resistant embedded fibers for superior heat and pressure tolerance
• SellingPoint10: Mishimoto Lifetime Warranty
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48.5 x 12 x 46.5 inches
• Weight: 195 lb
