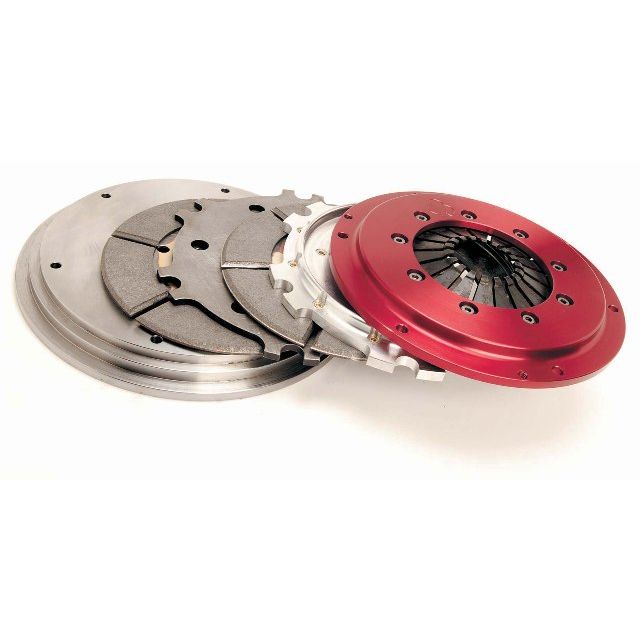

McLeod Mag Force:Double Disc:Steel:Pin Drive:1974-02 13B Turbo: 1-1/8x26 681712-00-07

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.

• The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.

Attributes:

• GTIN: 00887753315274
• Brand Name: McLeod
• Make: Mazda
• Engine: 13B Rotary, Turbo Crank
• Spline: 1 1/8In. x 26
• Clutch Usage: Drag Racing
• Disc Material: Sintered Iron
• Disc Style: Puck Style
• Engine Balance: Internal Balance
• Flywheel Included: Yes
• Flywheel Material: Steel
• Hardware Included: Yes
• Number of Discs: Double
• Alignment Tool Included: Yes
• Pilot Bushing Included: No
• Pilot Bushing Material: N/A
• Racing Application: Drag Racing
• Throwout Bearing Included: No
• Throwout Bearing Style: Standard
• NOTE:: This unit does not come with a Ring Gear. Customer must source the ring gear for this flywheel. Call McLeod Tech for more info at 714-630-2764

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 35 lb
