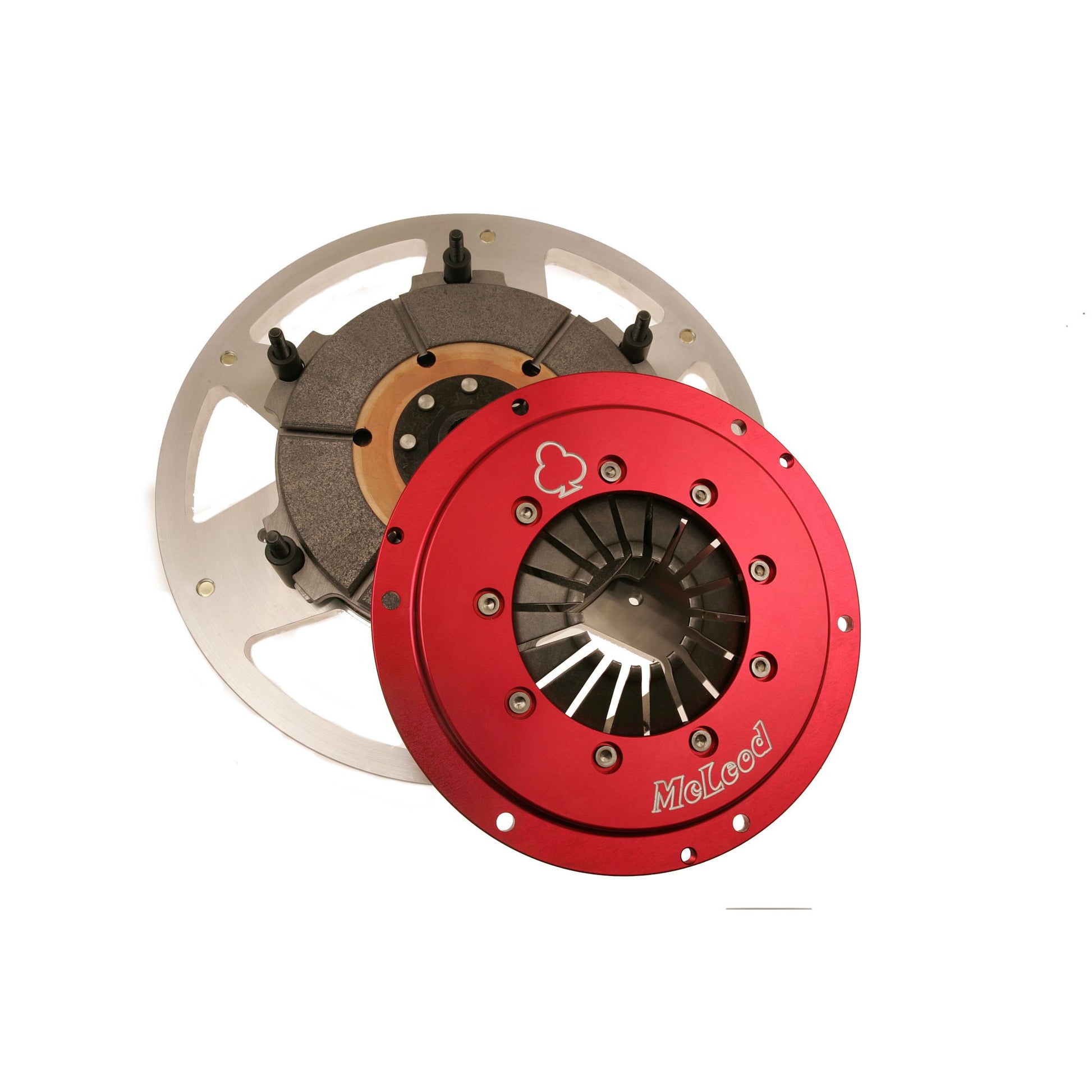

McLeod Mag Force:Double Disc:Steel:Pin Drive:1974-02 13B Turbo: 1x23 Metric 681712-00-25

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.

• The Mag Force is perfect for Road Racing, Drag Racing and Salt Flats Time trials.

Attributes:

• GTIN: 00887753315281
• Brand Name: McLeod
• Number of Discs: Double
• Hub Style: Solid
• Hardware Included: Yes
• Alignment Tool Included: Yes
• Flywheel Material: Steel
• Flywheel Included: Yes
• Engine Balance: Neutral
• Disc Style: Segmented
• Disc Material: Sintered Iron
• Disc Diameter: 8In.
• Throwout Bearing Included: No
• Clutch Usage: Drag Racing
• Clutch Patterns: Proprietery McLeod Mag Force
• Throwout Bearing Style: Standard
• Make: Mazda
• Engine: 13B Rotary Turbo
• Torque Rating: 900 Ft. Lbs.
• Spline: 1 x 23 Metric
• Additional Counter Weight Kit Required: N/A
• Ring Gear: NO RING GEAR
• Pressure Plate Style: Diaphragm
• Pilot Bushing Material: N/A
• Pilot Bushing Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
• Weight: 21 lb
