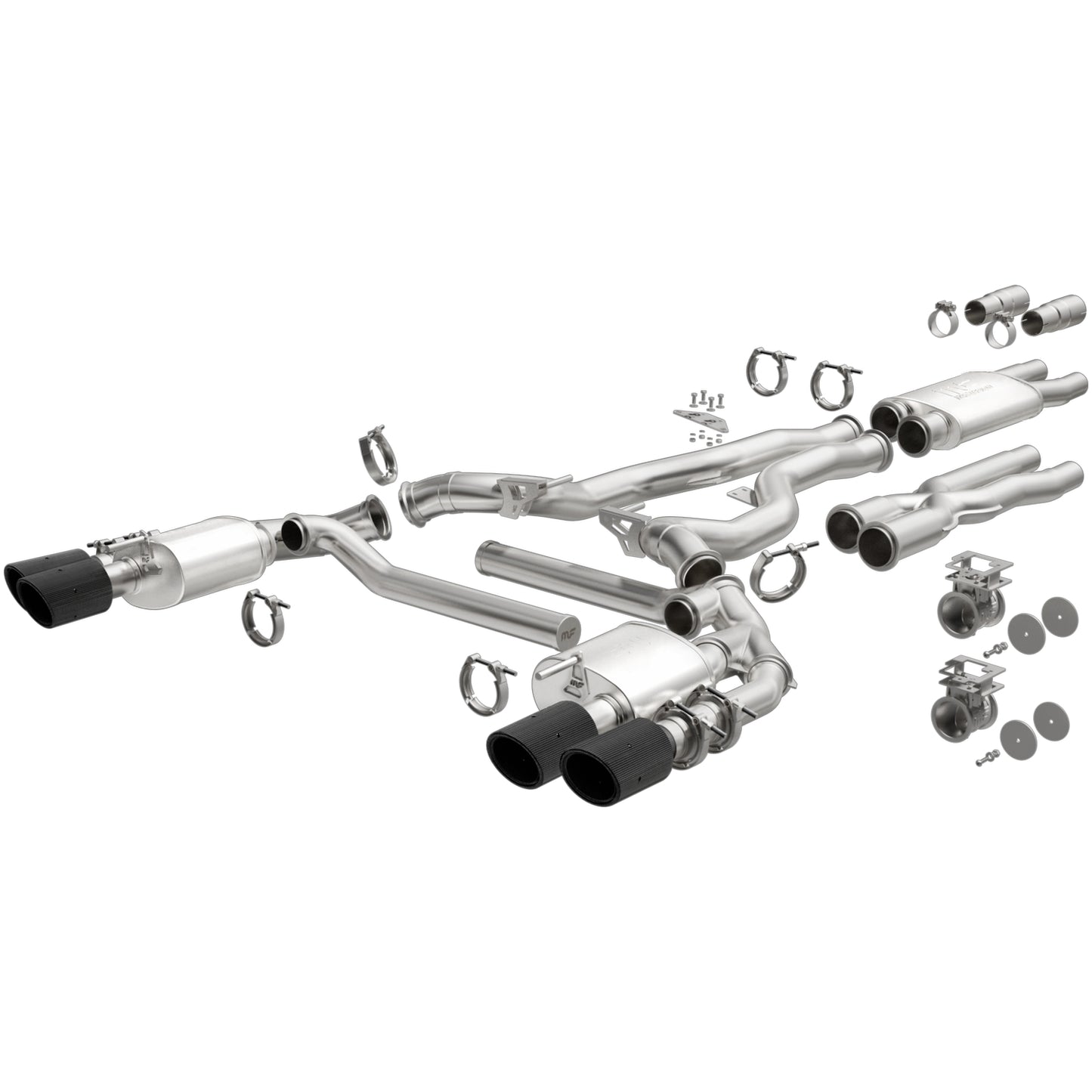

MagnaFlow 2018-2022 Ford Mustang xMOD Series Cat-Back Performance Exhaust System MAGNAFLOW-19535

Configure your 2018-2020 Mustang GT Coupe for the sound you want, when you want it! MagnaFlow's premium performance exhaust offering, the xMOD Series, provides an unrivaled exhaust experience! The revolutionary xMOD Series offers a completely modular exhaust system with all the benefits a MagnaFlow premium exhaust is known for: lifetime warrantied stainless-steel construction, dyno-proven performance featuring straight-through mufflers and fast-flowing mandrel bent pipes. xMOD Muffler Modules for the Mustang offer MagnaFlow's proven straight-through Tru-X core design with a 4" x 9” oval by 14" long muffler, and now feature race bred v-band clamps for quick installation and removal. Easily switch from the deep, aggressive signature MagnaFlow exhaust note to the wild straight-pipe race car sound offered by the xMOD xTreme Delete Tru-X. xMOD xTreme Delete Tru-X for the Mustang comes equipped with the same race bred v-bands which allow removal of the Tru-X core muffler modules for that unmatched xMOD xTreme sound experience. PLEASE NOTE: While xMOD systems are 100% emissions legal, the use of xTreme Deletes combined with xTreme Bypass is recommended for track use only. Check local noise regulations for street legality. In addition to the xMOD variable sound and flow modules, this system incorporates MagnaFlow’s latest exhaust tuning advancement called No Drone Technology (NDT). MagnaFlow’s NDT, along with careful muffler design and placement, utilizes 1/4 wave passive noise cancellation to remove unwanted drone that can occur when creating a maximum performance, high flow exhaust system. xMOD systems retain the original equipment exhaust valve functionality. The NDT resonators are also attached with v-bands to offer the ability to remove or tune them if you have made substantial modifications to your powertrain.

Attributes:

• GTIN: 00888563154572
• Brand Name: MagnaFlow Exhaust Products
• Muffler Quantity: 5
• Mounting Bracket Included: No
• Hangers Included: Yes
• Pipe Material: Stainless Steel
• Muffler Type Position Rear Inside: Tuned Chamber
• Muffler Finish: Polished
• Muffler Body Material: Stainless Steel
• Gasket Included: Yes
• Inlet Connection Type: Clamp-On
• Main Piping Diameter: 3
• Muffler Size Position Front: 4x9x14
• Muffler Size Position Rear Inside: 2.5x2.5x26.625
• Muffler Size Position Rear Outside: 5x8x8
• Muffler Type Position Front: Straight-Through
• Tip Finish: Carbon Fiber
• Series: xMOD
• Exit Style: Quad Split Rear
• Clamp Type: Band Clamp;V-Band Clamp
• Tip Diameter: 4
• Exhaust Tip Quantity: 4
• Tip Length: 7.75
• Tip Material: Carbon Fiber
• Tip Shape: Round
• Tip Type: Welded-On;Double Wall;Angle Cut;Rolled Edge
• Type: Cat-Back
• Valve Included: Yes
• Valve Type: Actuated
• Muffler Type Position Rear Outside: Straight-Through

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 49 x 23 x 18.5 inches
• Weight: 96 lb
