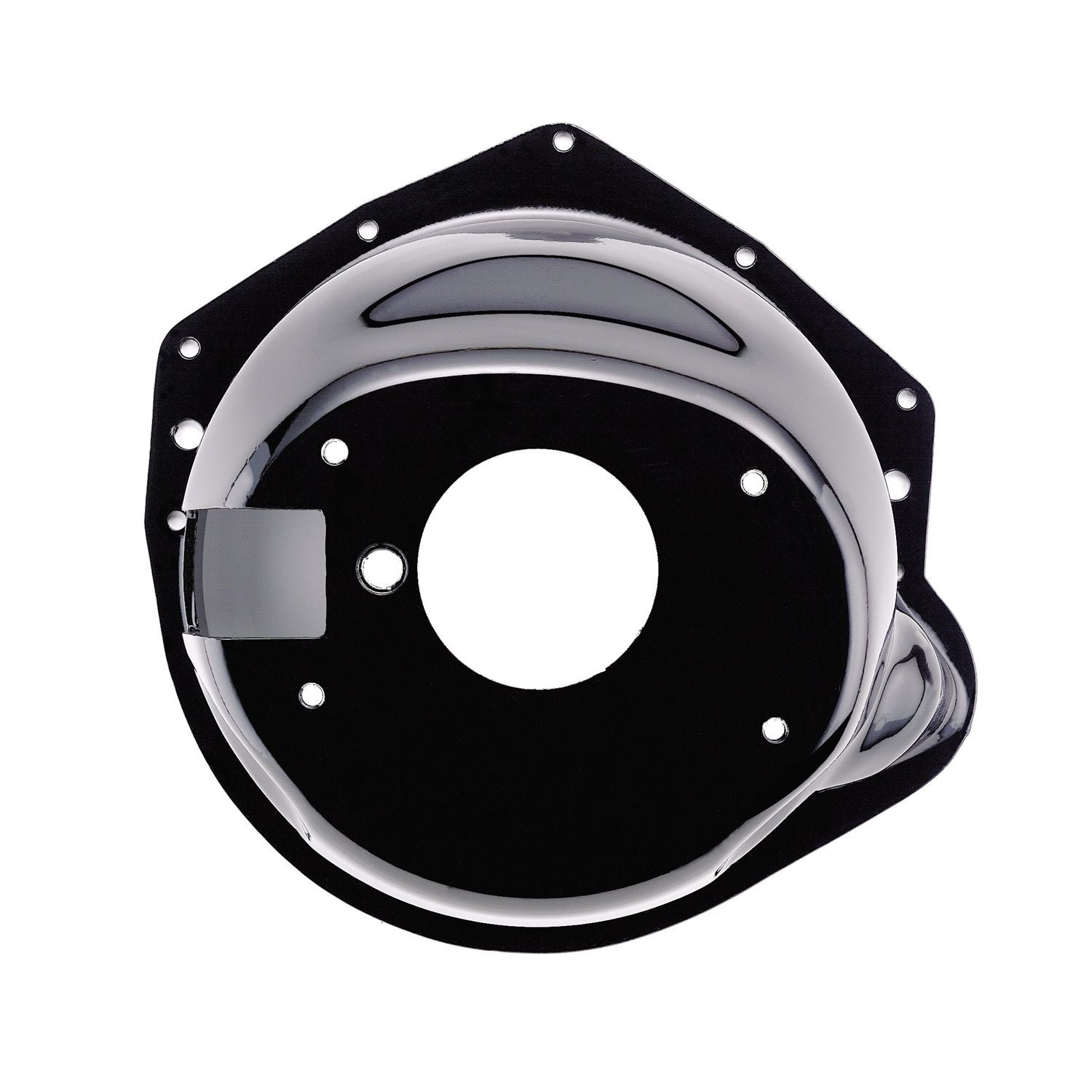

Lakewood Safety Bellhousing 77-150

The Lakewood 77-150 bellhousing connects small block and big block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is designed to fit GM full and midsized vehicles from 58 - 87. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. The adapter bellhousing is an excellent choice for street rods, street machines, or truck applications where the use of a S.F.I. bellhousing is not necessary. This bellhousing does not include or accept an engine block plate.

• Designed For Mechanical Fork Linkage
• Hydroformed From Premium Quality Steel
• Bellhousing Depth: 6.312 in
• Clutch Fork Opening: 2.5 In X 3.75 In
• Transmission Bore Diameter 4.684 In
• Made In The USA

Attributes:

• GTIN: 00084041771501
• Brand Name: Lakewood
• Clutch Disc Diameter: 11.000 in.
• Clutch Operation: Hydraulic or GM Mechanical
• Color: Black
• Engine: Chevy Big Block
• Flywheel Tooth Quantity: 153/168
• Item Height: 6.300 in.
• Material: Steel
• SFI Certification: NONE
• Transmission Bore Diameter: 4.685 in.
• Transmission Model: BorgWarner
• WARNING CA Proposition 65: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 9.5000 x 19.3000 x 8.3000 inches
• Weight: 35.3500 lb
