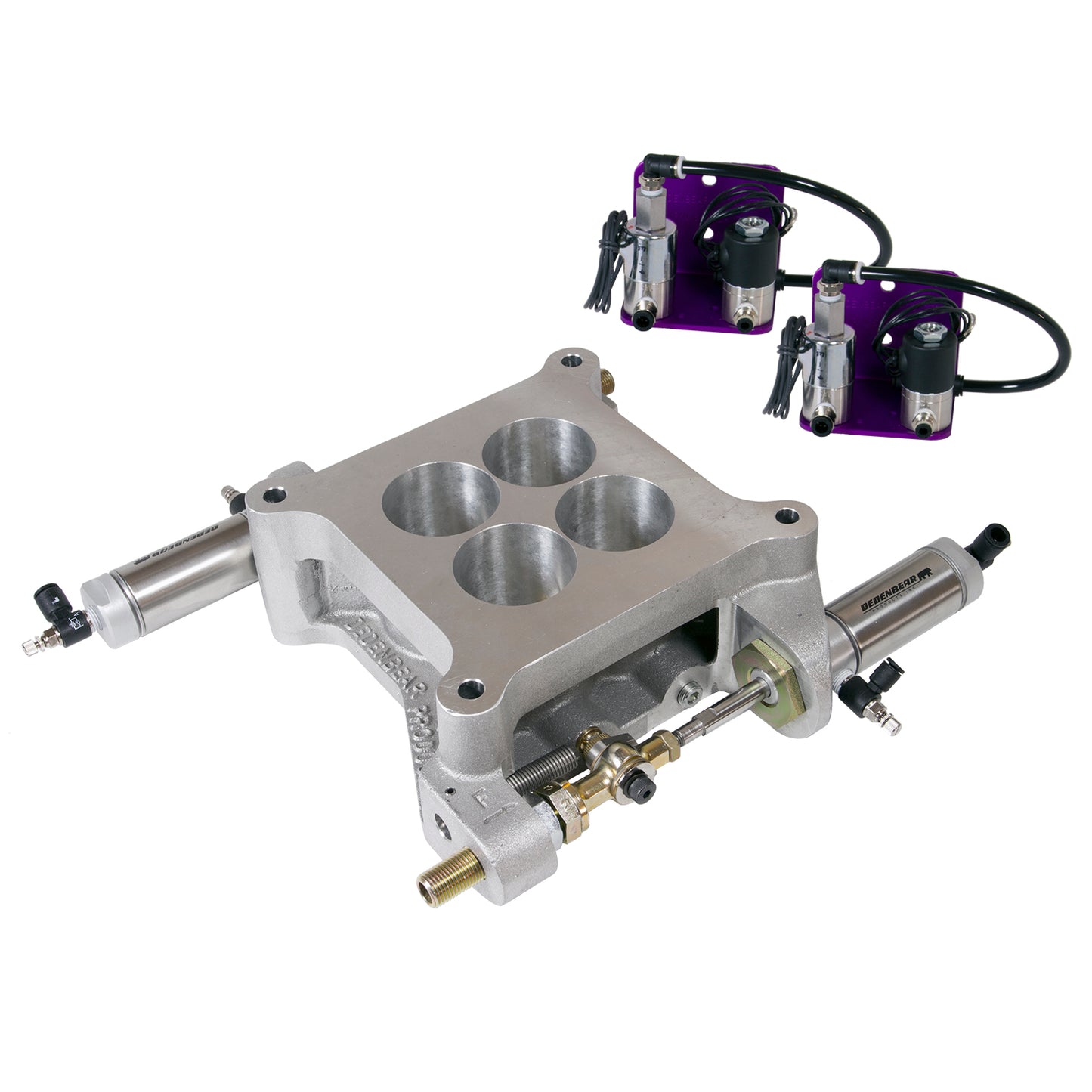

Dedenbear THROTTLE STOP BASEPLATE STYLE DUAL CO2 ACTUATED STD HOLLEY 4150 (DOUBLE ACTING) TS3ADAD

Dedenbears Double Bear Base Plate Throttle Stops Sit Underneath The Carburetor And Include Dual Actuators To Allow Independent Control Of Primary And Secondary Bore Butterflies To Limit Air/Fuel Flow While Allowing The Carburetor To Remain In Wide Open Position In Order To Help Assist A Drag Car In An Electronics Class Precisely Dial In To A Pre-Determined Et (Such As Super Classes) Or To Aid In Running A Higher Mph For A Given Et. Typically Used With A Throttle Stop Timer This Stop Employs Twin Dual Acting Co2 Cylinders For Maximum Tunability, Allowing Greater Control Over The Stop Primary And Secondary Butterfly Open And Close Rate For An Incredible Amount Of Possibilities During A Run. Launch With The Secondary Closed To Control Tire Spin, Close The Primary To Control Et And Then Bring The Primary Followed By The Secondary Open Progressively To Control Tire Spin Coming Back Off The Stop!

• Fits Standard Holley (4150 style) and Demon carburetors
• The Quality of a Dedenbear Double Bear Stop is obvious. Self-compensating for wear, regardless of age. 1pc aluminum casting prevents vacuum leaks, misalignment, distortion or loose parts commonly found in welded or bolted throttle stops
• Indexed stop bolt makes adjustments simple, precise and repeatable.
• Stainless steel butterflies are bolted to a ground stainless steel shaft actuated by levers which are TIG welded to the throttle shaft, preventing any possibility of loosening.

Attributes:

• GTIN: 00046074165221
• Brand Name: Dedenbear
• Add-On: AB10K;L1;L2;CC3;TSC2A;2163;BEX-5000;2159;2172;2183

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13 x 15 x 4 inches
• Weight: 11 lb
