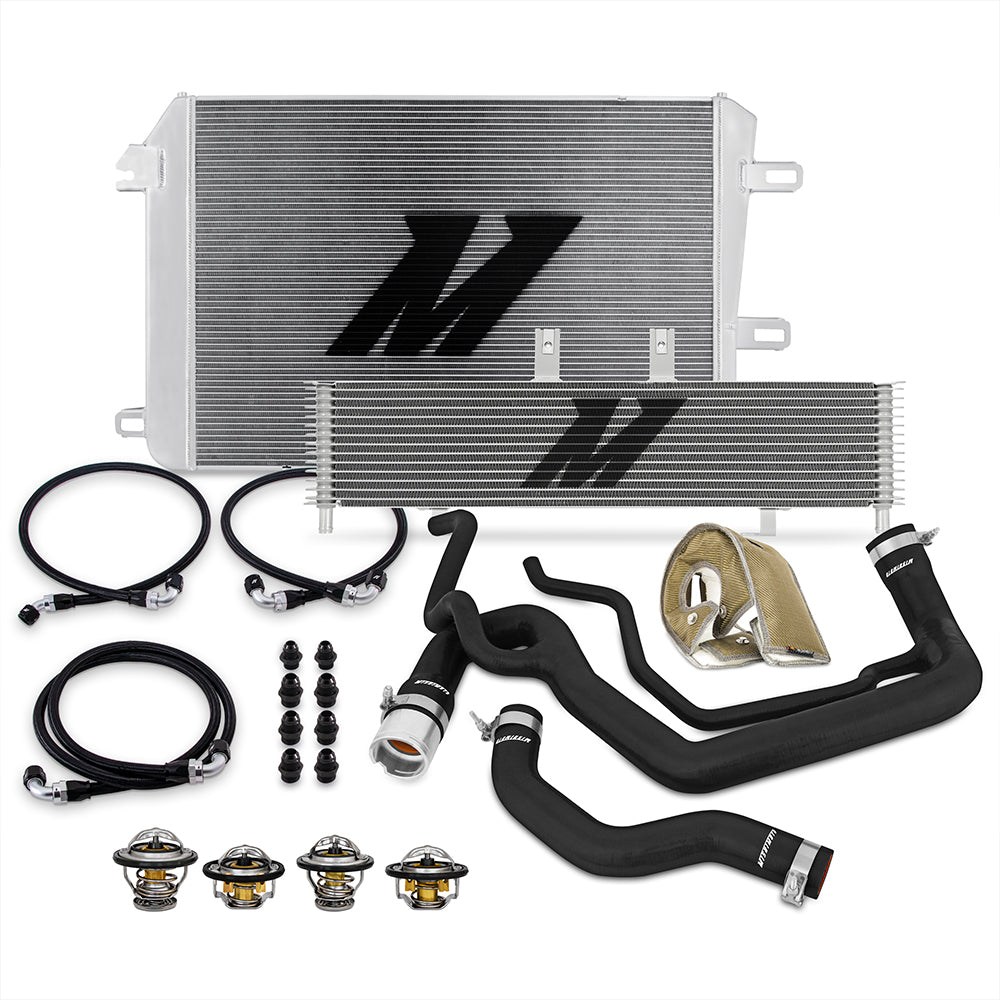

Mishimoto Ultimate Bundle, for 2006-2010 Chevrolet/GMC 6.6L Duramax MMB-DMAX-002

Restore and enhance your cooling system with the Mishimoto Ultimate Bundle. The Mishimoto Ultimate Bundle includes high-quality upgraded cooling components to replace items we've found to be the most failure-prone. For the 2006-2010 Chevrolet/GMC 6.6L Duramax, we've bundled together our aluminum radiator, silicone radiator hose kit, high-temperature thermostat, low-temperature thermostat, transmission cooler, transmission cooler line kit, and titanium turbo blanket. As the stand-out component, our aluminum radiator features full aluminum construction with durable TIG-welded end tanks. In addition, this radiator is designed with a massive 2-row 2.2-in thick core, which provides substantial improvements in cooling efficiency. To supplement our robust radiator, we've included our incredibly durable silicone radiator hose kit. This Mishimoto Silicone Radiator Hose Kit is constructed from four layers of silicone with heat-resistant embedded fibers. Other engine coolant enhancements within this bundle include our pair of thermostat sets for the 6.6L Duramax. The Mishimoto high-temperature thermostats hasten engine warmup making it ideal for use in cold climates. The Mishimoto low-temperature thermostats allow coolant to flow through the engine earlier, reducing the risk of overheating in hot environments. The Mishimoto Duramax Transmission Cooler provides a 125-percent increase in external fin surface area, resulting in considerable improvements in cooling efficiency. The included transmission cooler lines are pre-assembled and feature a PTFE inner liner for improved heat and pressure tolerance. Finally, our new Titanium Turbo Blanket is rounding out our Duramax Ultimate Bundle, which protects vital engine bay components from excessive heat. Time to re-habilitate the cooling system of your Duramax with the Mishimoto Ultimate Bundle. As with all our products, this bundle includes the signature Mishimoto Lifetime Warranty.

• Direct fit for the 2006-2010 Chevrolet/GMC 6.6L Duramax
• Ultimate kit includes our aluminum radiator, silicone radiator hose kit, high-temperature thermostat, low-temperature thermostat, transmission cooler, transmission cooler line kit, and titanium turbo blanket
• Replace all primary cooling system failure points at once to reduce vehicle downtime
• Radiator features full aluminum construction with durable, TIG-welded end tanks
• Radiator features a two-row 2.2" thick brazed aluminum core, providing ideal temperatures in any driving condition
• Silicone radiator hose kit constructed from four layers of silicone with heat resistant embedded fibers
• CNC-machined aluminum radiator hose couplers for enhanced long-term durability
• High-temperature thermostat hastens engine warmup making it ideal for use in cold climates
• Low-temperature thermostat allows coolant to flow through the engine earlier, reducing the risk of overheating in hot environments
• Direct-fit transmission cooler provides 125% increase in external fin surface area, resulting in superior cooling efficiency
• Pre-assembled transmission cooler lines constructed with a PTFE inner liner for improved pressure and heat tolerance
• Turbo blanket protects vital engine bay components from excessive heat
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00840197709467
• Brand Name: Mishimoto
• SellingPoint08: High-temperature thermostat hastens engine warmup making it ideal for use in cold climates
• SellingPoint09: Low-temperature thermostat allows coolant to flow through the engine earlier, reducing the risk of overheating in hot environments
• SellingPoint10: Direct-fit transmission cooler provides 125-percent increase in external fin surface area, resulting in superior cooling efficiency
• SellingPoint11: Pre-assembled transmission cooler lines constructed with a PTFE inner liner for improved pressure and heat tolerance
• SellingPoint12: Turbo blanket protects vital engine bay components from excessive heat
• SellingPoint13: Mishimoto Lifetime Warranty
• SellingPoint14: N/A
• SellingPoint15: N/A
• TechSpec Overall Height (in): N/A
• TechSpec Overall Length (in): N/A
• TechSpec Overall Width (ins): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Height (in): N/A
• TechSpec Fluid Capacity (gal): N/A
• TechSpec Rows: N/A
• TechSpec Inlet (in): N/A
• TechSpec Outlet (in): N/A
• TechSpec Core Thickness (in): N/A
• TechSpec Drain Plug Thread Size: N/A
• TechSpec DPI: N/A
• TechSpec Material: N/A
• TechSpec Applications: Chevrolet Silverado 2500HD V8 (6.6L) 2006-2010--Chevrolet Silverado 3500HD V8 (6.6L) 2006-2010--GMC Sierra 2500HD V8 (6.6L) 2006-2010--GMC Sierra 3500HD V8 (6.6L) 2006-2010
• TechSpec Engine Codes: LBZ--LMM
• TechSpec Chassis Codes: 2500HD--3500HD
• TechSpec Note: Please reference individual pages for additional product details and specifications:-- Aluminum Radiator, fits Chevrolet/GMC 6.6L Duramax 2006-2010----Silicone Coolant Hose Kit, fits Chevrolet/GMC 6.6L Duramax 2006-2010----High Temperature Thermostats (Set of 2), fits Chevrolet/GMC 6.6L Duramax 2001-2016----Low Temperature Thermostats (Set of 2), fits Chevrolet/GMC 6.6L Duramax 2001-2016----Transmission Cooler, fits Chevrolet/GMC 6.6L Duramax (LBZ/LMM) 2006-2010----Transmission Cooler Line Kit, fits Chevrolet/GMC 6.6L Duramax (LLY/LBZ/LMM) 2006-2010----Titanium Turbo Blanket, fits Chevrolet/GMC 6.6L Duramax 2004.5-2016----
• TechSpec Includes: Aluminum Radiator-- Silicone Radiator Hose Kit-- High-Temperature Thermostat Kit-- Low-Temperature Thermostat Kit-- Transmission Cooler-- Transmission Cooler Line Kit-- Titanium Turbo Blanket--Mishimoto Lifetime Warranty
• SellingPoint01: Direct fit for the 2006-2010 Chevrolet/GMC 6.6L Duramax
• SellingPoint02: Ultimate kit includes our aluminum radiator, silicone radiator hose kit, high-temperature thermostat, low-temperature thermostat, transmission cooler, transmission cooler line kit, and titanium turbo blanket
• SellingPoint03: Replace all primary cooling system failure points at once to reduce vehicle downtime
• SellingPoint04: Radiator features full aluminum construction with durable, TIG-welded end tanks
• SellingPoint05: Radiator features a two-row 2.2-in thick brazed aluminum core, providing ideal temperatures in any driving condition
• SellingPoint06: Silicone radiator hose kit constructed from four layers of silicone with heat resistant embedded fibers
• SellingPoint07: CNC-machined aluminum radiator hose couplers for enhanced long-term durability

Extended Information:

• Country of Origin: China
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48 x 8 x 28 inches
• Weight: 64.77 lb
