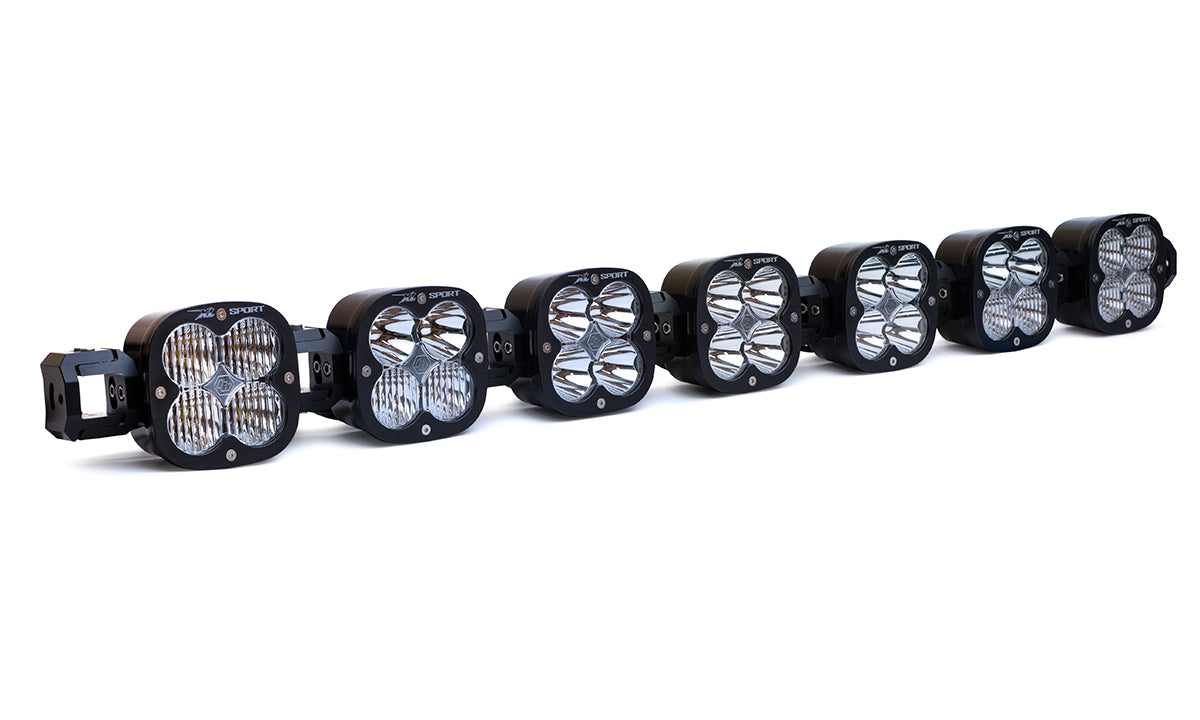

Baja Designs XL Linkable LED Light Bar 740005

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 7 XL Sports, Links, and Rock Guards. This system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arced configurations to perfectly match the lines of your vehicle. The wiring comes fully crimped and trimmed, allowing for easy install and the ability to add links down the road. If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!

• Satisfaction Guarantee -30-Day Money Back Guarantee
• Limited Lifetime Warranty -Complete Purchase Protection
• uService -Replaceable Lenses And Optics
• ClearView -All The Light, Right Where You Need It
• MoistureBlock -Waterproof, Rain Proof, Submersible
• CopperDrive -Only LED Driven At 100 Percent
• 5000K Daylight -Less Driver Fatigue, Natural Color

Attributes:

• GTIN: 00810031741250
• Brand Name: Baja Designs
• Add-On: Associated Products-748000-Brackets
• Amperage Rating (A): 14
• Average Rated Life (hr.): 49,930
• Beam Pattern: Multi-Pattern
• Bezel Material: Billet Machined Aluminum
• Brightness (Lumens): 22,050
• Depth (in.): 2.8
• Description: 7XL Sport; Multi-Pattern; Clear
• Height (in.): 4.43
• Housing Color: Black
• Housing Material: Hard Anodized and Powder Coated Cast Aluminum
• Length (in.): 45.34
• Lens Color: Clear
• Lens Material: Hardcoated Polycarbonate
• Light Quantity: 7
• Lighting Modes: Beam
• Lighting Quantity: 28
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Mounting Hardware Description: Pre-Load Kit; Links; Rock Guards
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Overvoltage Protection: Built-In
• Product Type: XL Linkable LED Light Bar
• Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
• Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
• Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
• Universal or Specific: Universal
• Wattage (W): 182
• Wiring Harness Included: Yes
• Add-On: Accessories-668004-Light Cover (Amber)
• Add-On0: Associated Products-748002-Pre-Load Mount
• Add-On1: Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
• Add-On2: Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
• Add-On3: Compatible Products-640094-Upfitter Harness
• Add-On: Accessories-668005-Light Cover (Clear)
• Add-On: Accessories-668003-Rock Guard (Black)
• Add-On: Accessories-660115-Lens Kit (Driving/Combo; Amber)
• Add-On: Accessories-660104-Lens Kit (Driving/Combo; Clear)
• Add-On: Accessories-660106-Lens Kit (Spot; Clear)
• Add-On: Accessories-660107-Lens Kit (Wide Cornering; Amber)
• Add-On: Accessories-660105-Lens Kit (Wide Cornering; Clear)

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 36.0 x 10.0 x 10.0 inches
• Weight: 21.0 lb
