Derale 16 Pass Electra-Cool Remote Fluid Cooler, -8AN 15800

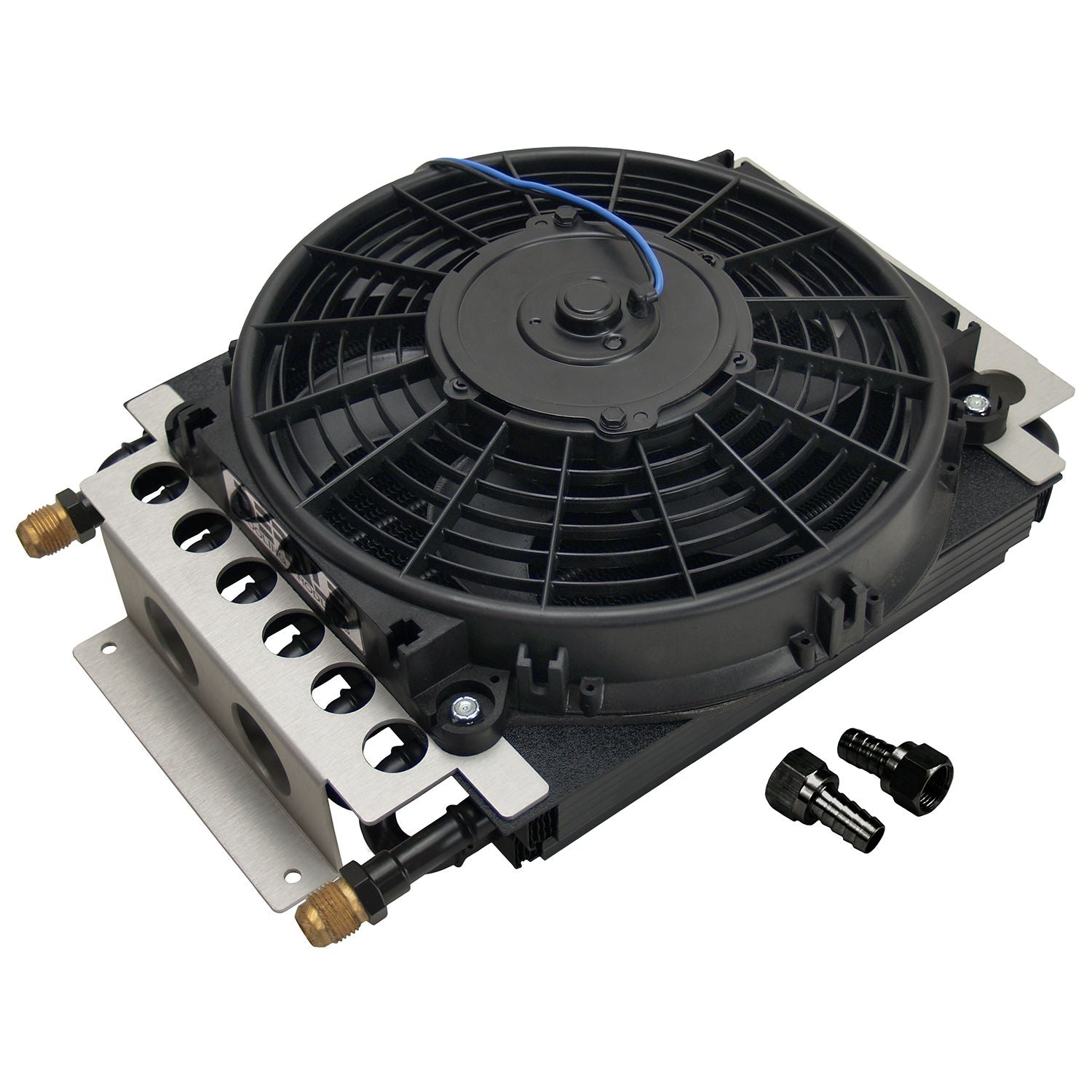

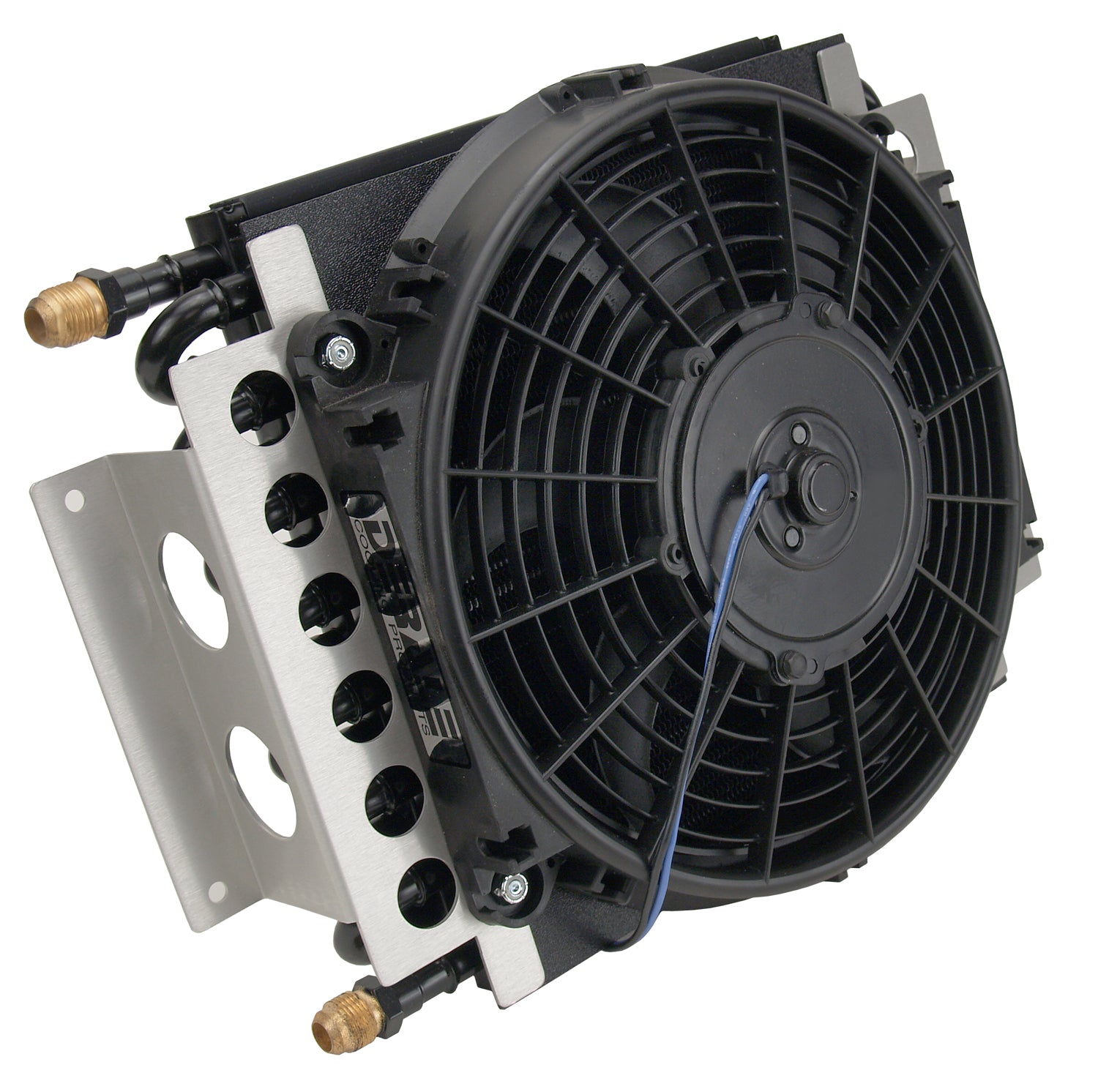

With its own air supply, the ever-popular Electra-Cool remote cooler can literally be mounted almost anywhere, making it a popular addition for performance compacts, hot rods, muscle cars and trucks. An efficient 16-pass tube and fin cooler coupled with a Tornado fan and aluminum brackets, built with -8AN male fittings and includes 2 each -8AN x 1/2" barb fittings. With the large -8AN fittings this cooler was designed primarily for engine oil applications, but also can be used for heavy duty transmission or fuel cooling. Made in the USA.

Attributes:

• GTIN: 00083277158001
• Brand Name: Derale
• Airflow: Puller (reversible)
• Amp draw: 5.3
• Barb size: 1/2
• CFM: 650
• Color: Black
• Cooler fluid capacity: 19.6
• Cooler style: 16 pass Tube & Fin
• Depth: 5
• Fan size: 10
• Height: 11-1/2
• Inlet dim: 8-3/4
• Inlet size: -8AN
• Mounting: 14-3/4 x 5-1/4
• Width: 15-3/4

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 19.25 x 6.75 inches
• Weight: 8.6875 lb
