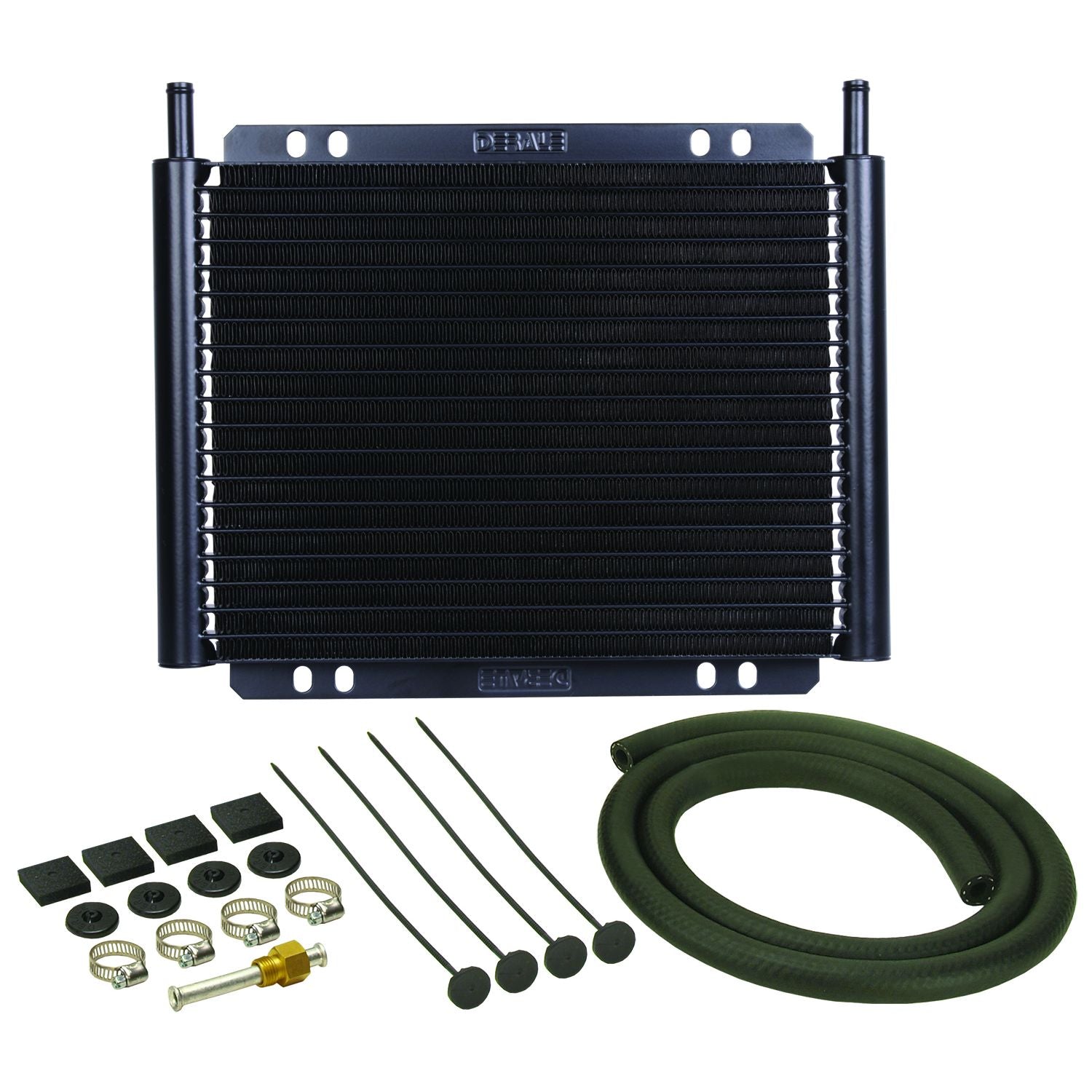

Derale 19 Row Series 8000 Plate & Fin Transmission Cooler Kit, 11/32" 13503

A step up from Tube & Fin type coolers, this Plate and Fin cooler features strong furnace-brazed construction, 7/8" wide plates, 3/4" embossed turbulators which maximize heat transfer while also minimizing pressure drop. This unit is perfect for medium to full-size cars and intermediate SUVs that see light to medium duty use and some towing. It greatly extends transmission life by preventing heat-related transmission failures, and improve shifting performance. This kit comes with a complete transmission cooler hardware kit to easily install onto vehicles with 5/16" transmission cooler lines.

Attributes:

• GTIN: 00083277135033
• Brand Name: Derale
• Color: Black
• Cooler style: Plate & Fin
• Depth: 7/8
• GVW: 20500
• Height: 9-1/4
• Hose length: 4
• Hose size: 11/32
• Inlet dim: 10-1/4
• Inlet size: 11/32 barb
• Material: Aluminum
• Mounting: 6-3/4 x 8
• Width: 10-1/8

Extended Information:

• Country of Origin: Taiwan
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18.625 x 13 x 2.125 inches
• Weight: 3.25 lb

PDF:
