2003-2011 Crown Victoria Big Brake Kit

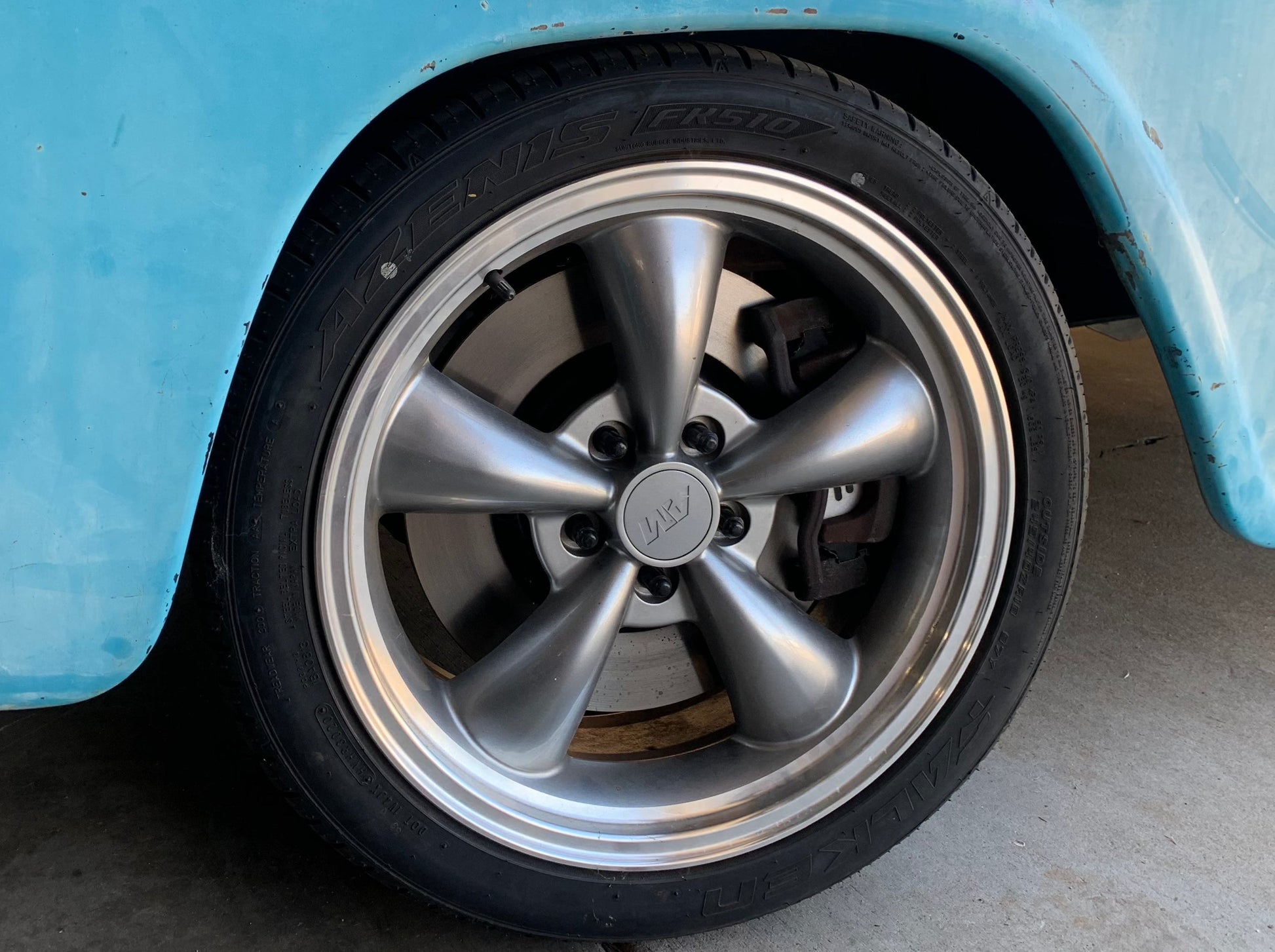

Have 18” or bigger wheels on your 2003-2011 Crown Vic swap? How about filling them out with 14” brakes?

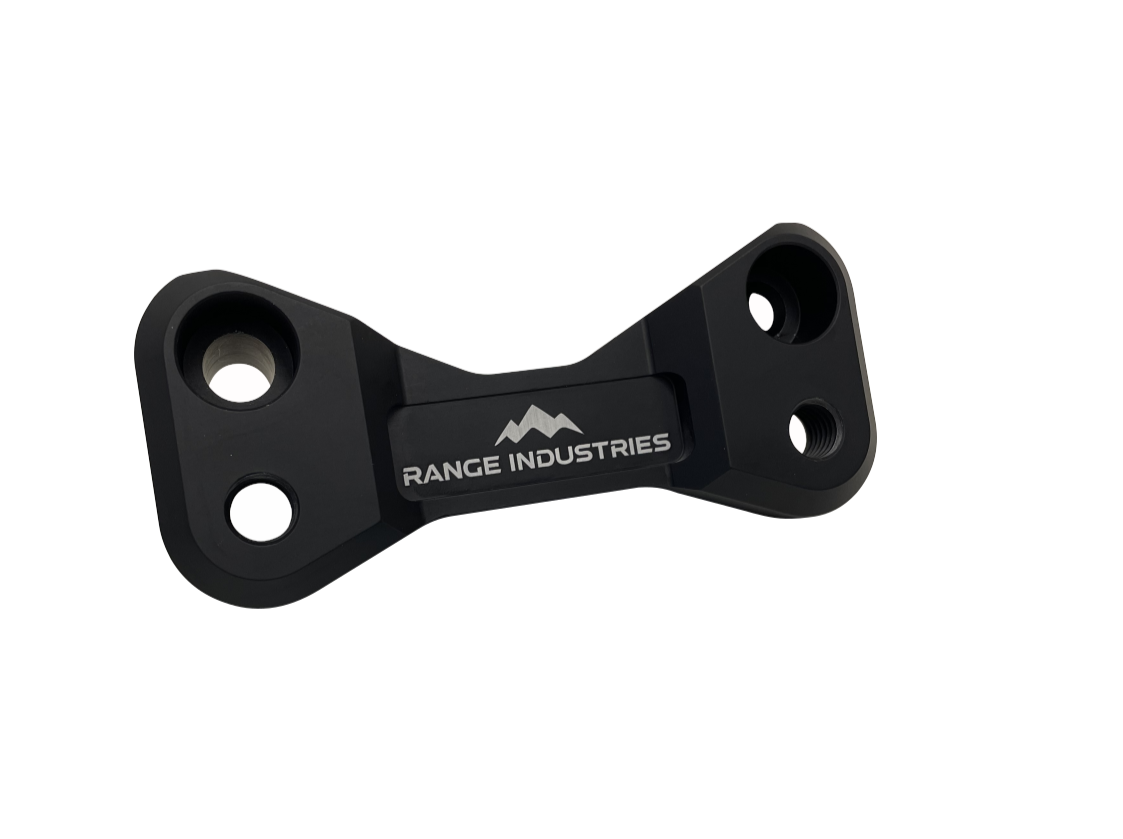

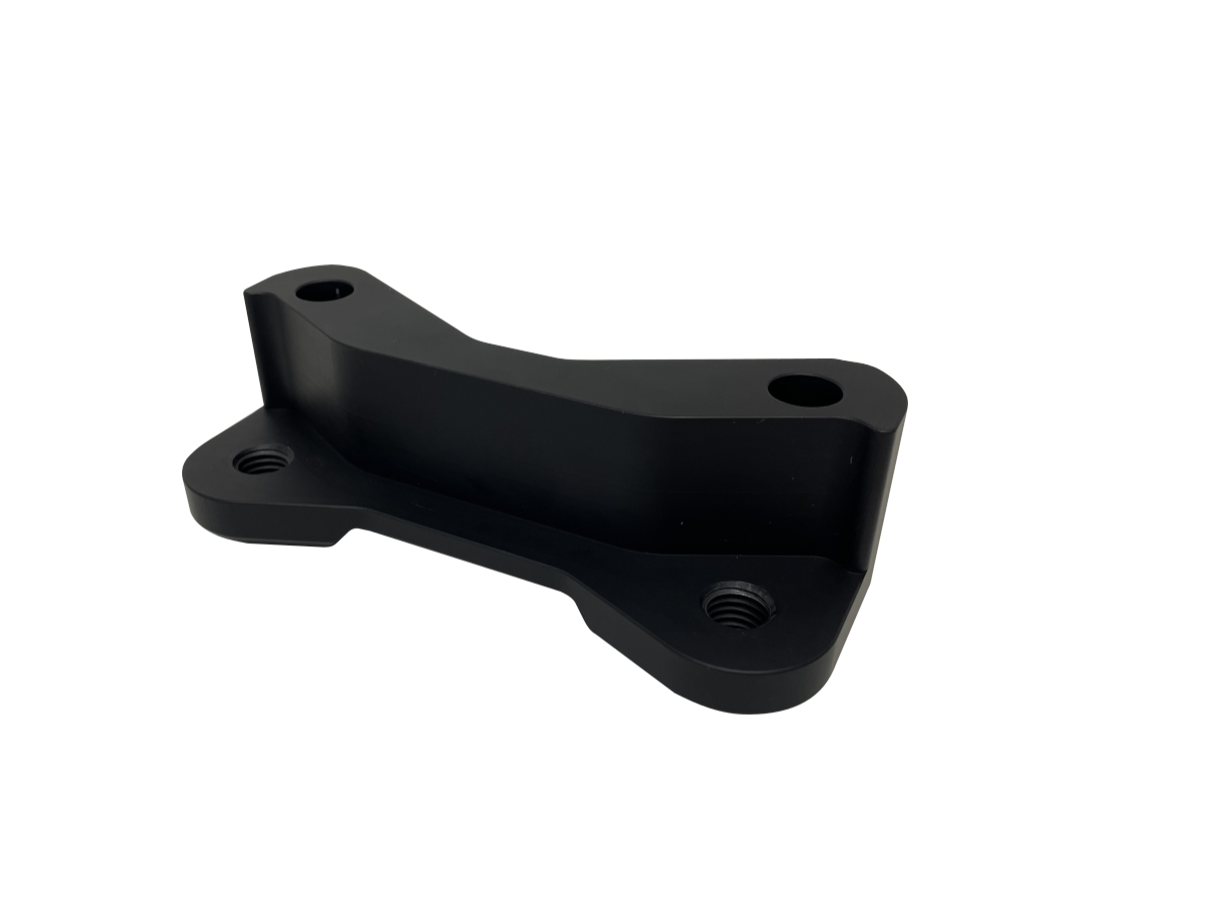

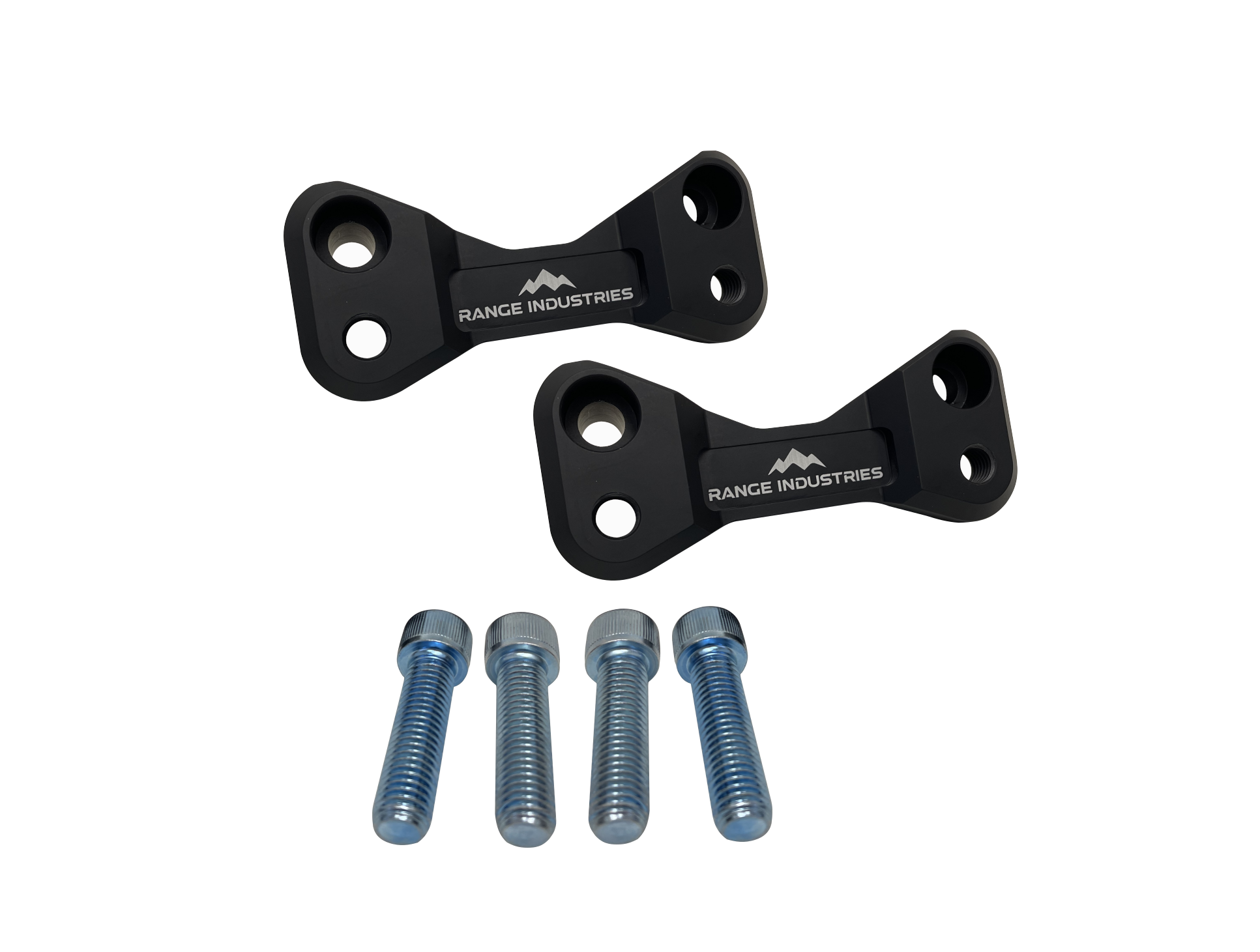

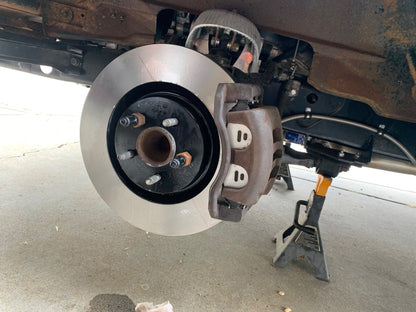

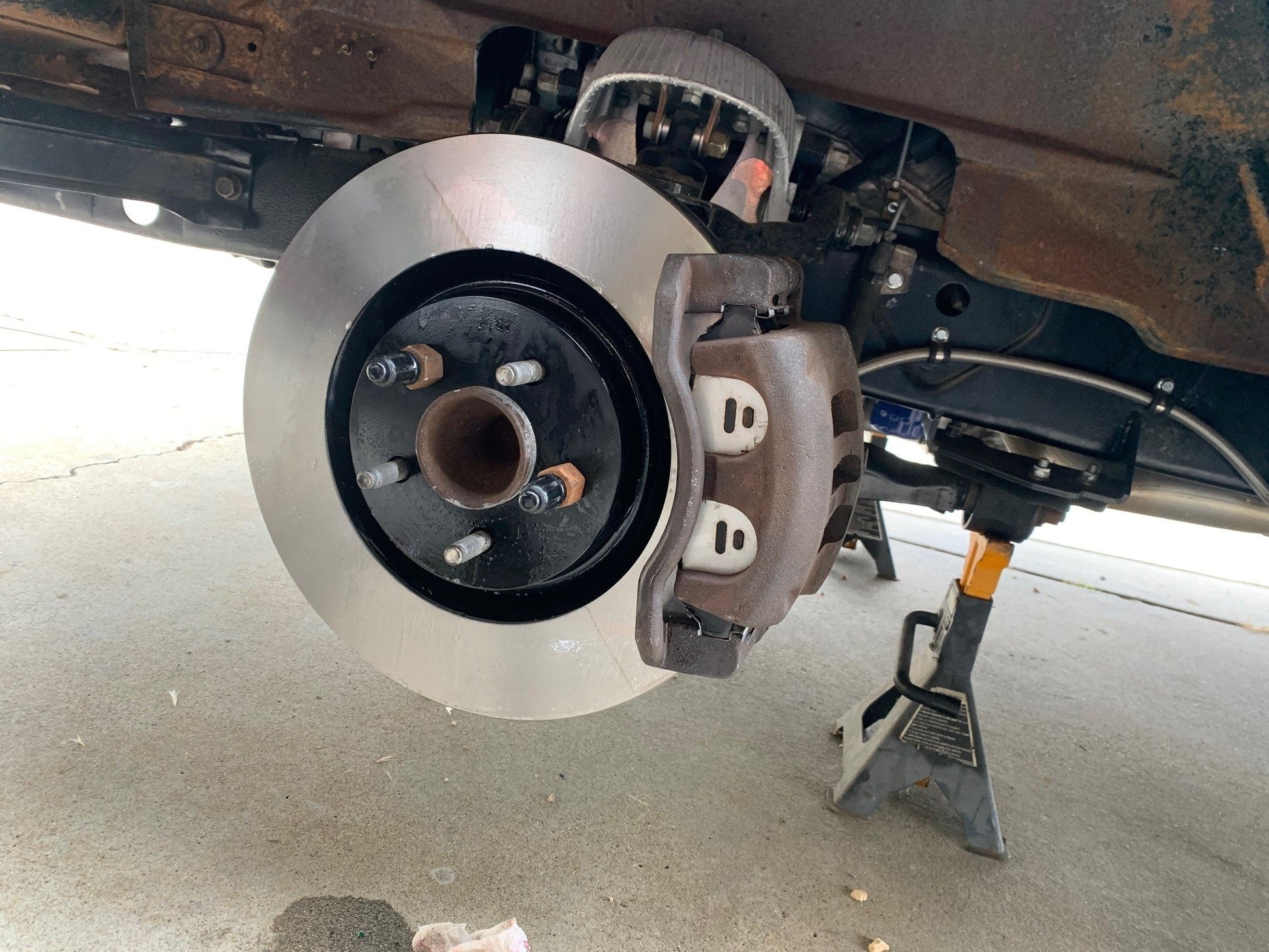

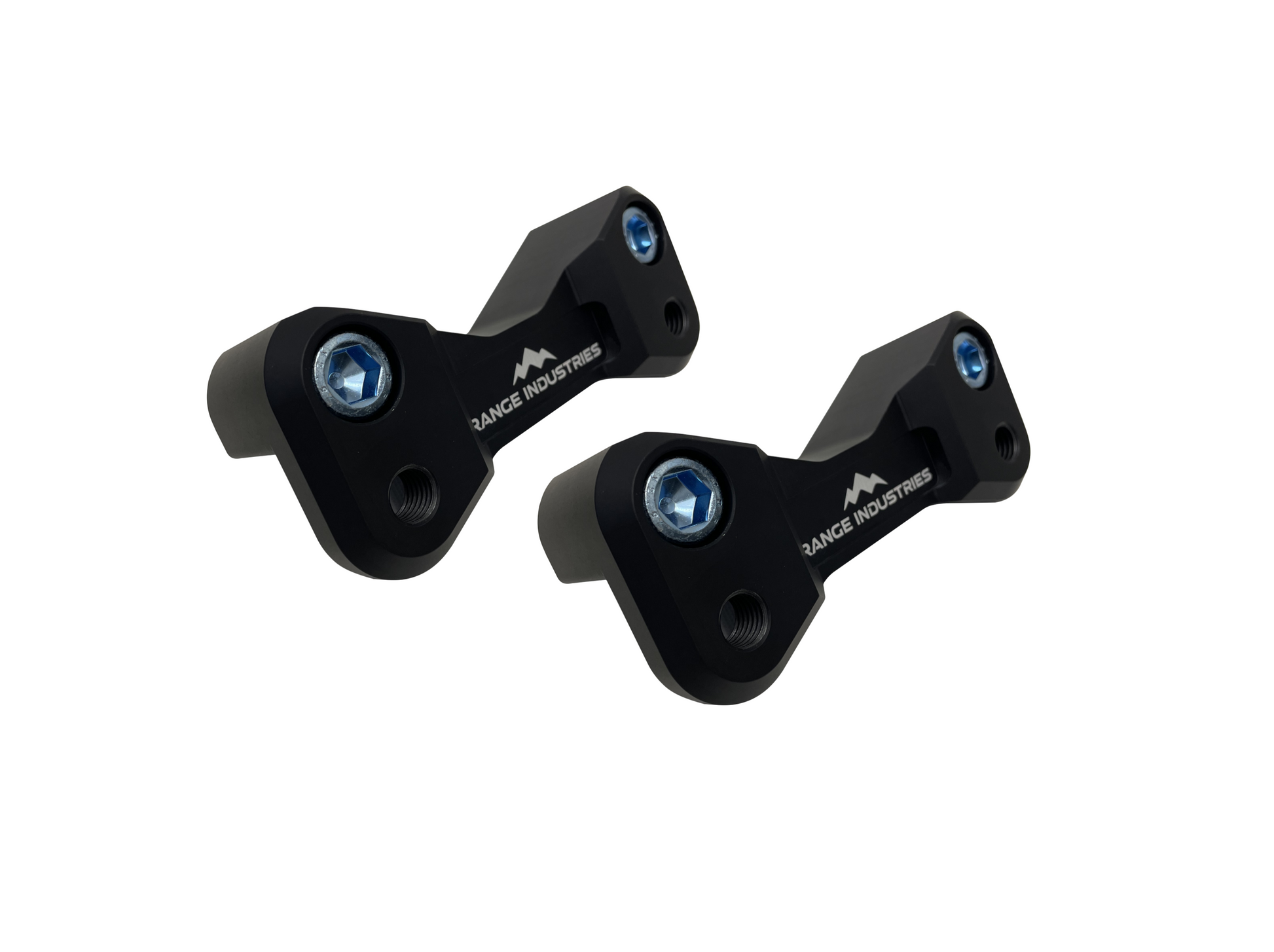

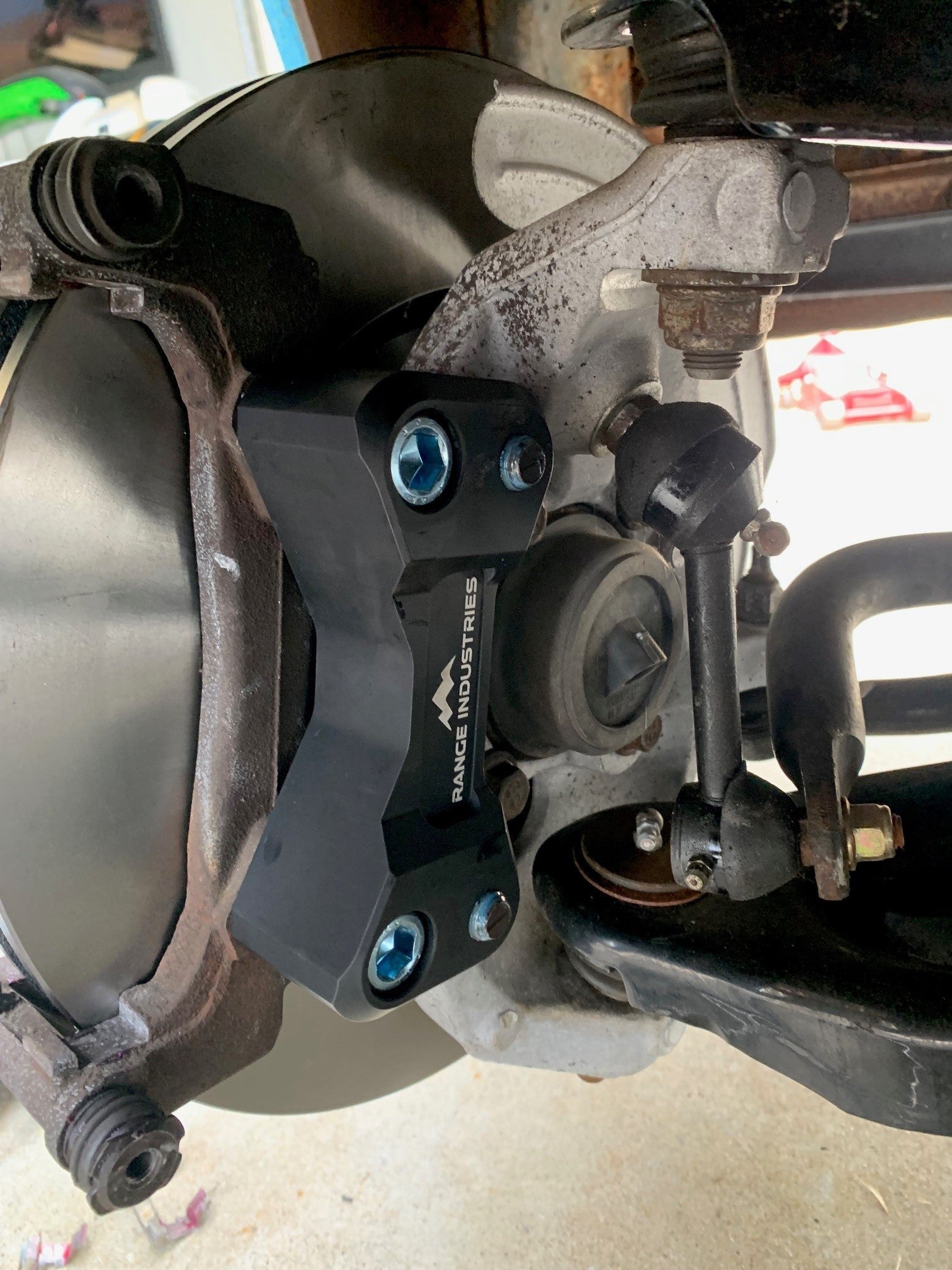

These brackets shift your stock CV calipers outward to allow use of a 14” Mustang rotor. This will give approximately a 20% increase in braking power.

 If you’re doing a brake job anyway, why not go for it?

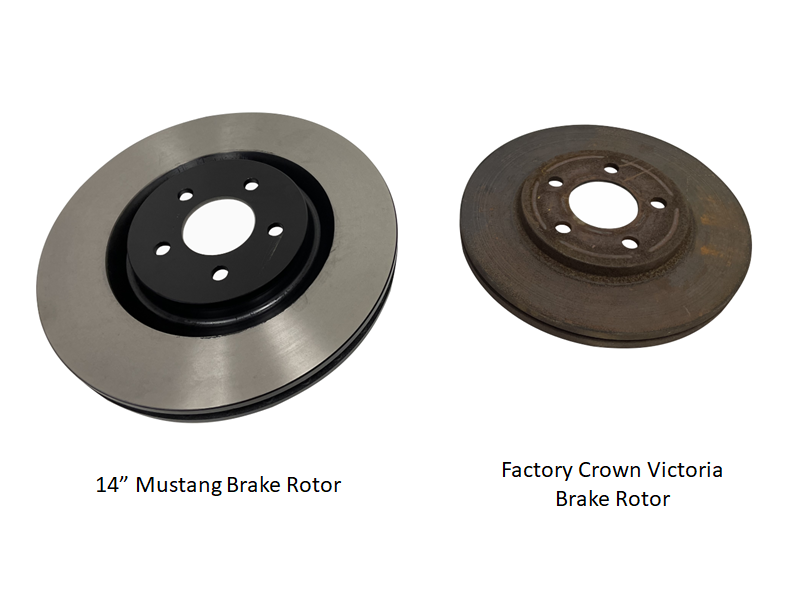

 Just use a 2007-2014 14” mustang rotor such as AC Delco 18A2939 or Durago BR900918 and open the center bore up by .030” to 2.833”. This can be done in a lathe, or very carefully with a rotary tool by hand.

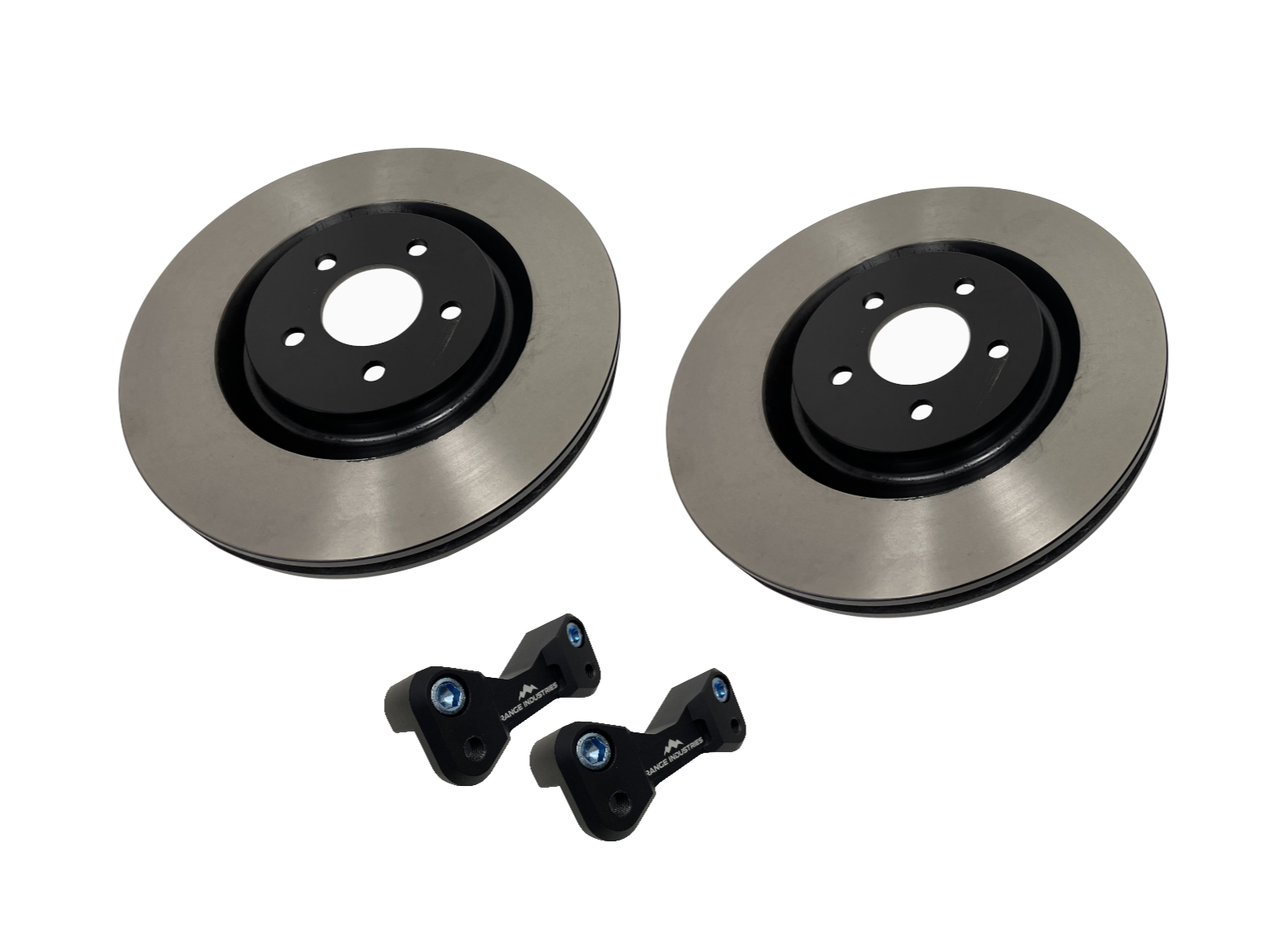

 OR buy the rotors from us with the center bore already machined to fit.

INSTALL GUIDE

Wheel fitment template

 *** Note- due to the difference in the rotor diameters, a sliver of the brake pad will overhang the rotor. We have found no ill effect to this. If it bothers you- it is simple to mark the pads and chisel away some of the friction material to match the curve of the bigger rotor.

Looking for the ultimate Big Brake Upgrade for your Crown Vic Subframe? Check out our BREMBO Modified Knuckles found here:

CROWN VICTORIA BREMBO MODIFIED KNUCKLES
