3D Scan: 2016-2023 Toyota Tacoma Rear Axle Assembly (TRD Off-Road)

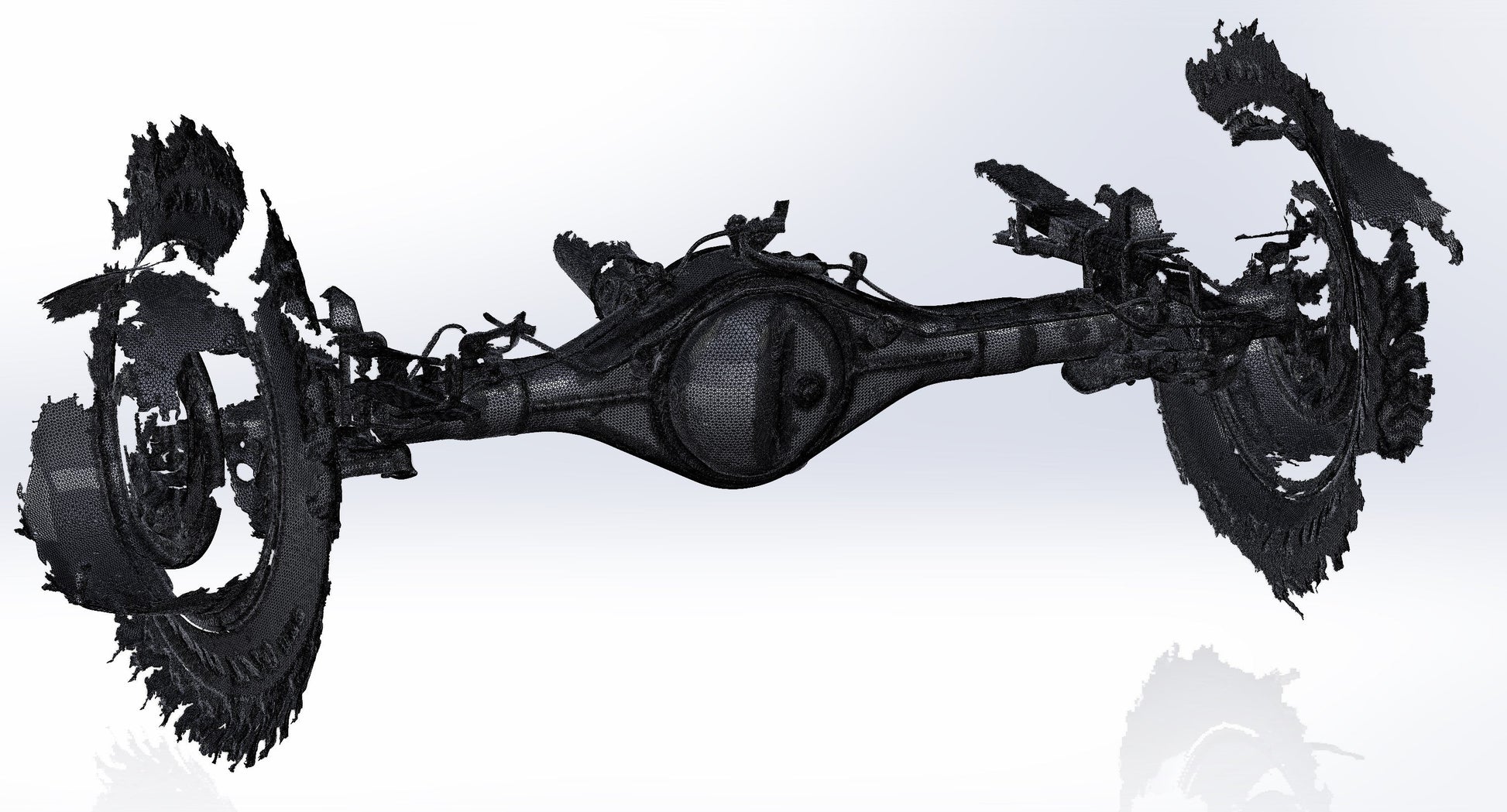

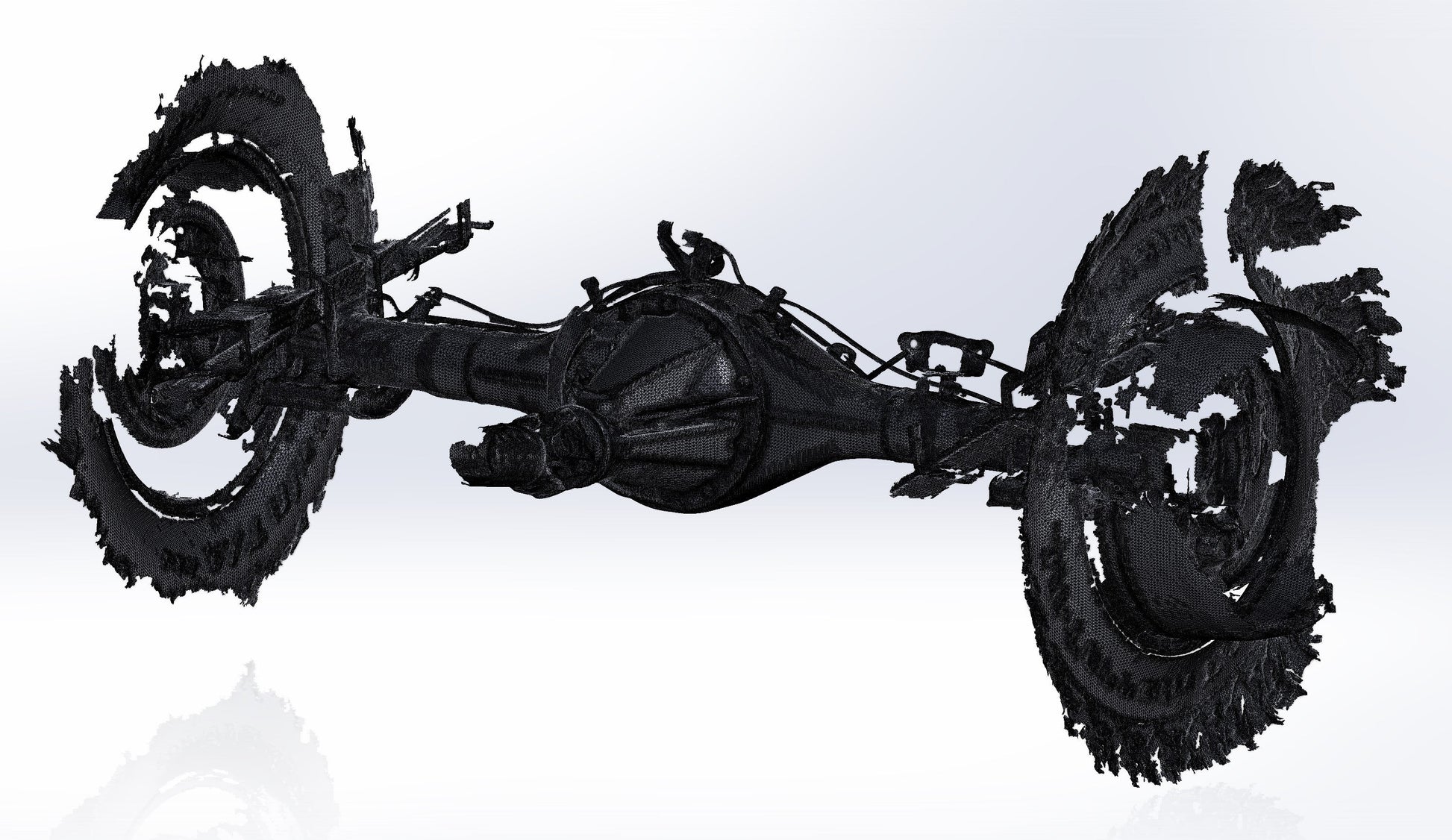

3D Scan data is from a 2020 TRD Off-Road Toyota Tacoma with factory e-locker, zero offset wheels and 285/70r17 tires.

Files Included:

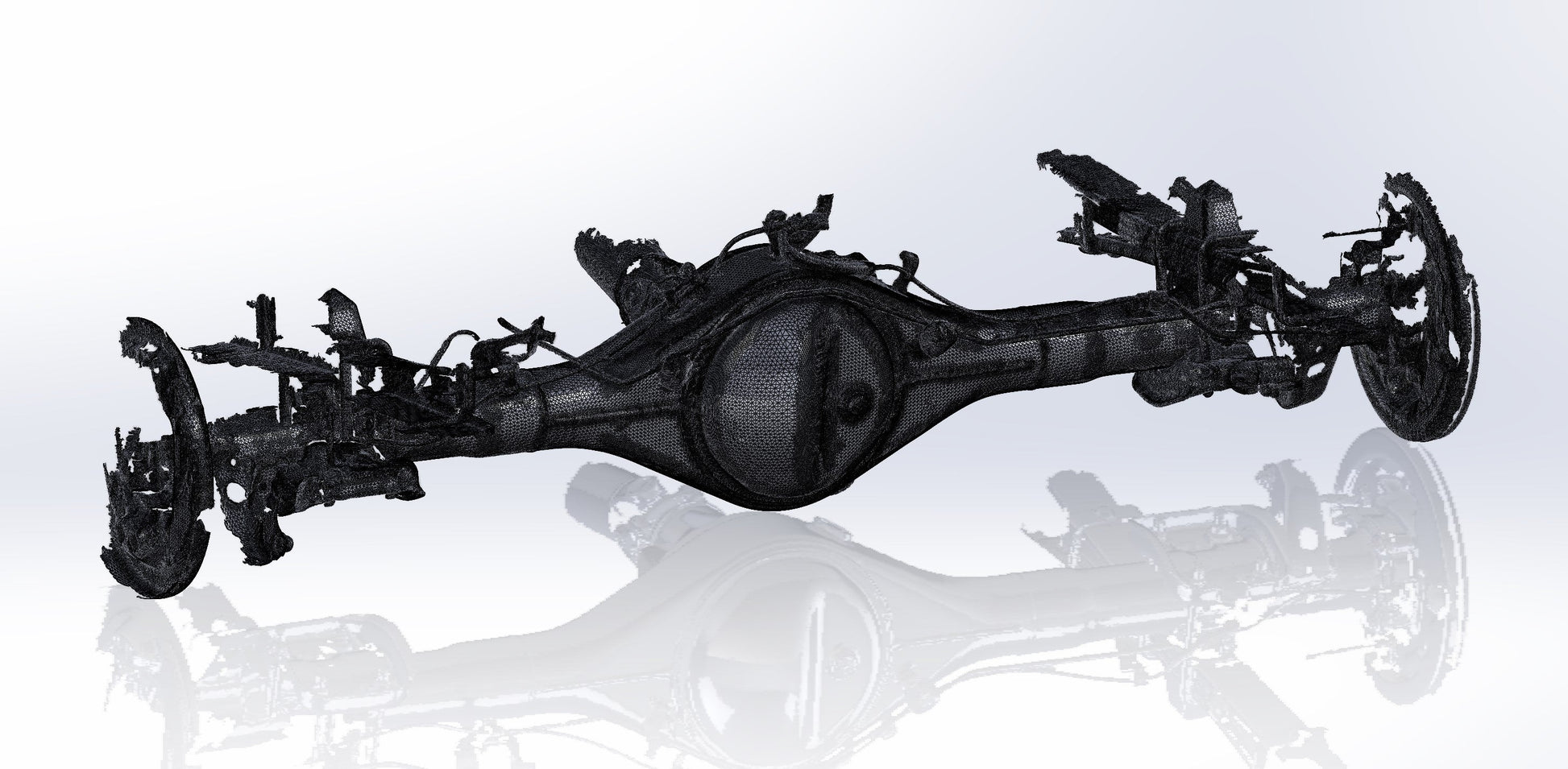

3GTAC-DRAXRA-01-HOUSING.STL

• 3D scan file of axle housing only.

3GTAC-DRAXRA-01-TIRES.STL

• 3D scan file of tires.

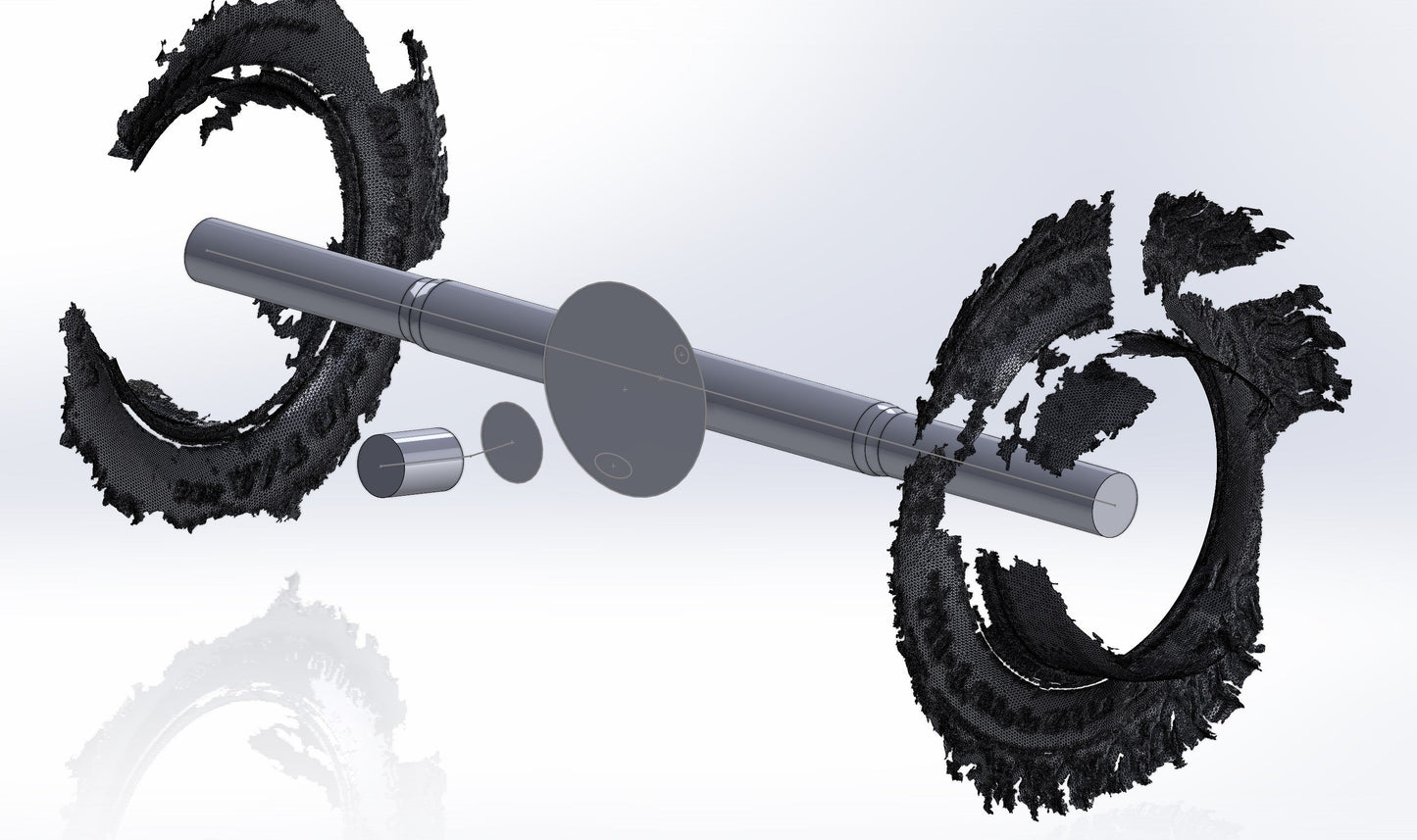

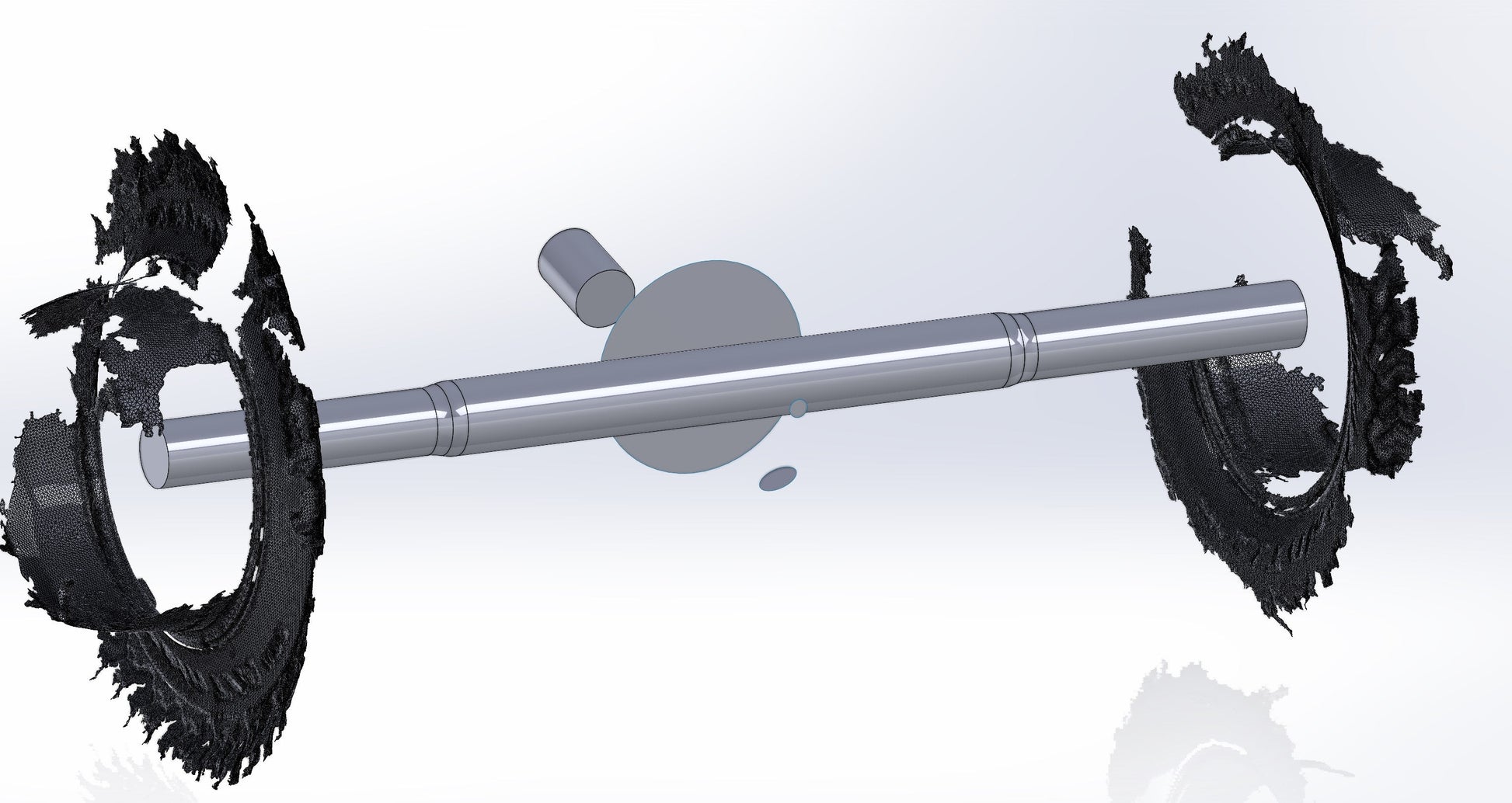

3GTAC-DRAXRA-01-SOLIDS AND SURFACES.STEP

• Solid and surface body file defining axle tube and other important geometry.

3GTAC-DRAXRA-01-GEOMETRY.IGS

• Sketches and plane files defining important geometry.
