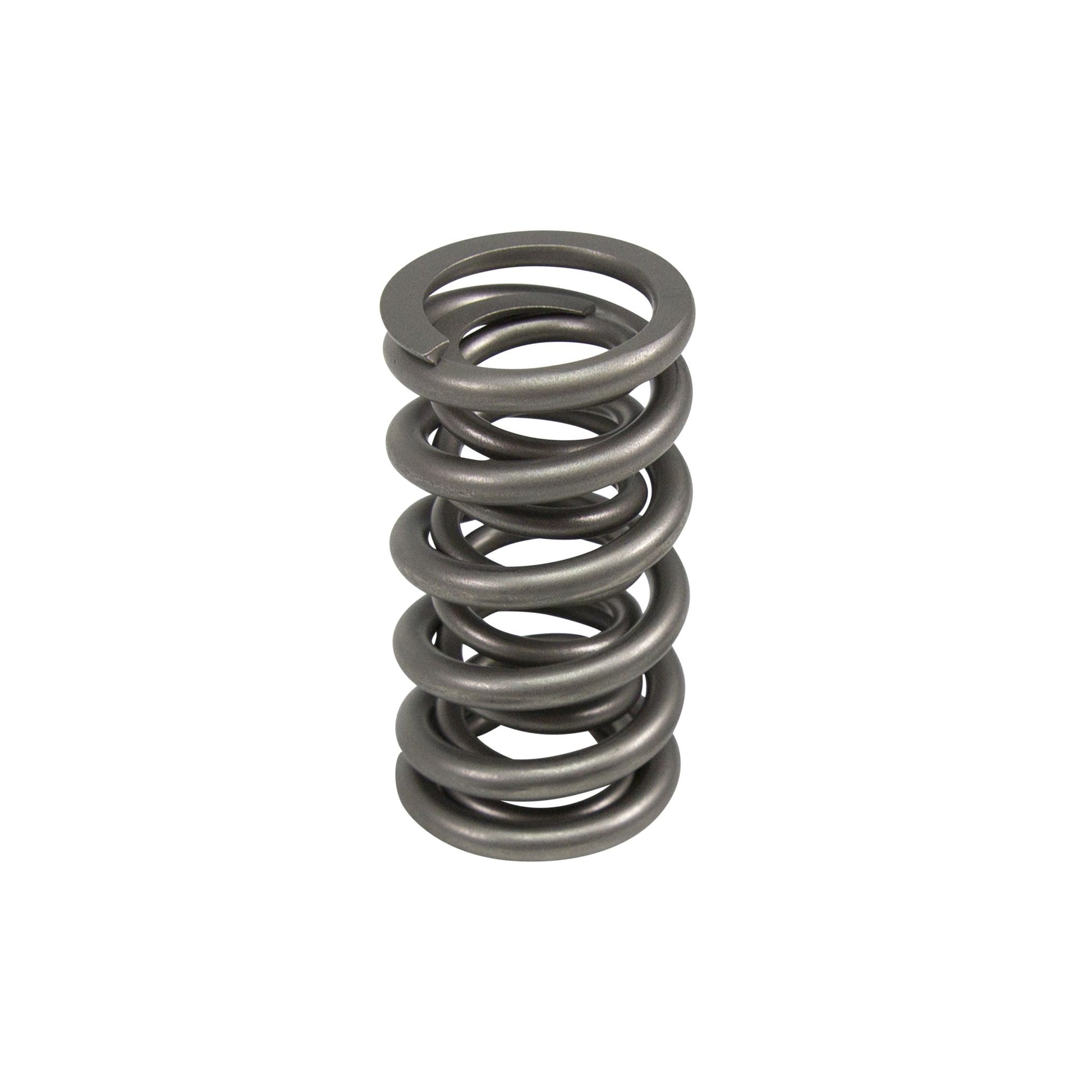

COMP Cams .700" Max Lift Dual Valve Spring for GM LS7 LT1 & LT4 Engines COMP-26527-1

Attributes:

• GTIN: 00036584384755
• Brand Name: COMP Cams
• Number of Springs: 2
• Compatible .520" Guide Diameter Spring Seat: 4695-1
• Spring Style: Dual
• Valve Spring Series: Dual
• Damper: No
• Compatible Retainer: 779-1
• Compatible Spring Cup (O.D. Locator): 4709-1
• Compatible .570" Guide Diameter Spring Seat: 4682-1
• Compatible Shims: 4753
• Outer Spring Outside Diameter: 1.301
• Spring Rate: 427
• Open Load: 458
• Seat Pressure: 159
• Installed Height: 1.9
• Coil Bind Height: 1.15
• Inner Spring Inside Diameter: 0.646
• Outer Spring Inside Diameter: 0.924
• Amazon ASIN: B07MK8RZF9
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 6 x 4 x 0.2 inches
• Weight: 0.25 lb
