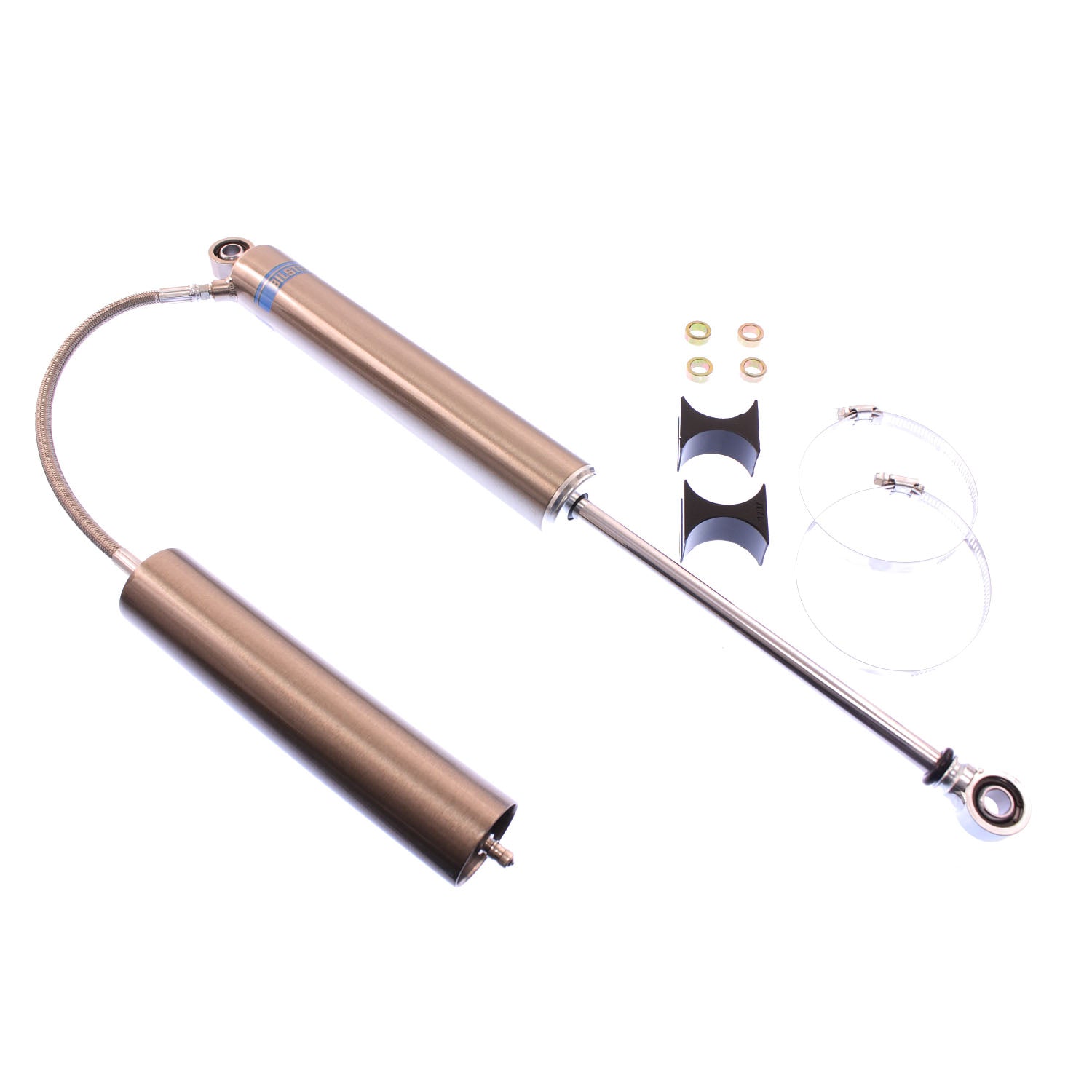

Bilstein Shock Absorbers AK7110SB

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

Attributes:

• GTIN: 00790832510869
• Brand Name: Bilstein
• Extended Length (MM): 617.5
• Extended Length (IN) Rounded: 24
• Collapsed Length (IN) Rounded: 14
• Extended Length (IN): 24.31
• Rebound @0.52m/s: 2550
• Body Design: Smooth Body (Non-Coilover)
• Upper Mount Type: 1/2in Heim
• Mount Type: Eye-to-Eye
• Body Diameter (ID): 46mm
• Series: M 7100
• Internal Design: Monotube
• Reservoir: Yes
• Lower Mount Type: 1/2in Heim
• Spring Seat Included: No
• Optional Reservoir Clamp: N/A
• Compression @0.52m/s: 700
• Finish: Nickel Plated with Clear Powder Coat
• Collapsed Length (IN): 14.29
• Collapsed Length (MM): 363.0

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 37.0000 x 7.0000 x 2.0000 inches
• Weight: 25.0400 lb
