COMP Cams CAMSHAFT KIT, CB NX274H COMP-SK11-564-4

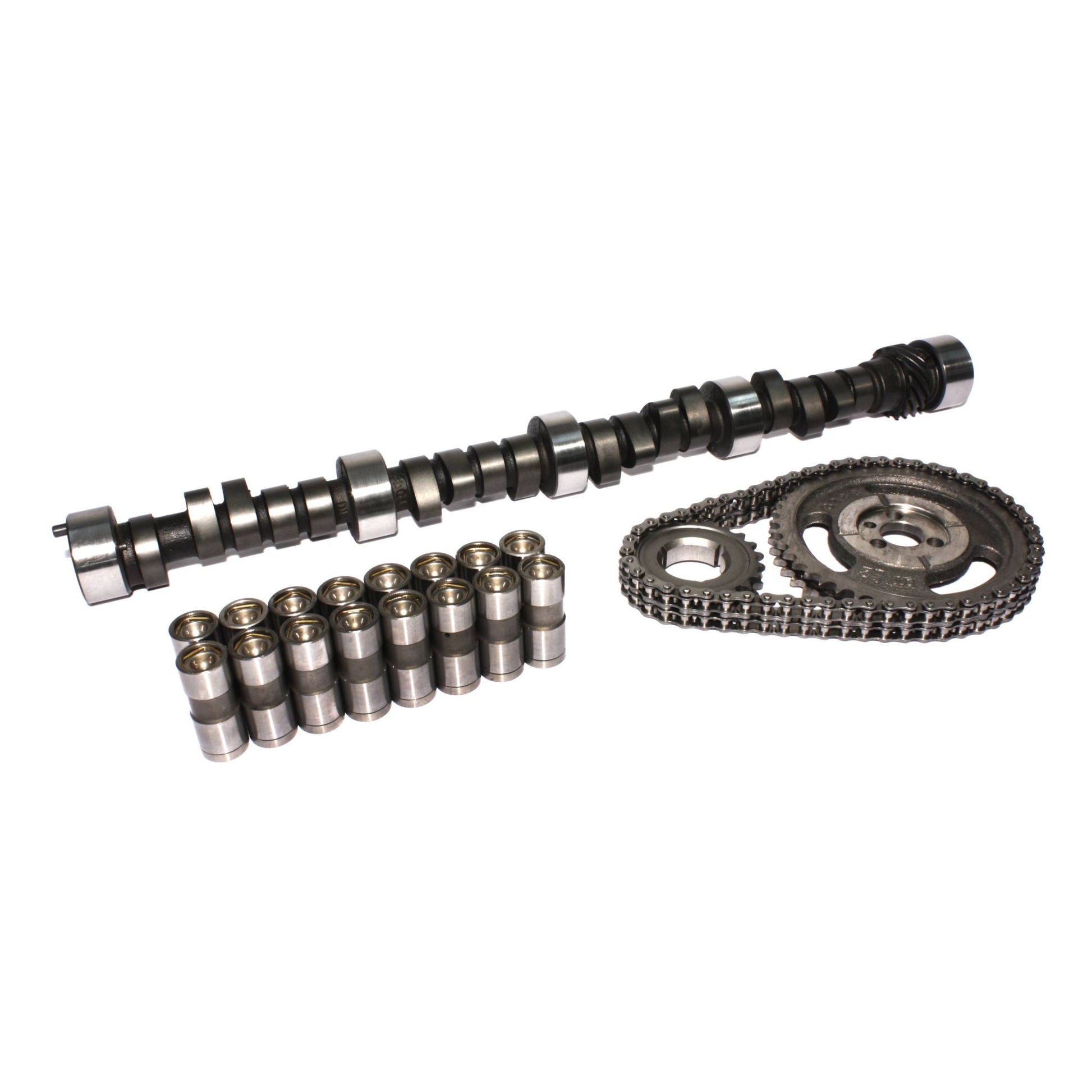

SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions.

Attributes:

• GTIN: 00036584040125
• Brand Name: COMP Cams
• Kit Type: SK-Kit - Small Kit
• Usage: Street/Strip
• Cam Type: Hydraulic Flat Tappet
• Basic Operating RPM Range: 2,000-6,500
• Intake Duration at .050 Inch Lift: 230
• Exhaust Duration at .050 inch Lift: 244
• Advertised Intake Duration: 274
• Advertised Exhaust Duration: 292
• Lobe Separation: 113
• Intake Valve Lift: 0.551
• Exhaust Valve Lift: 0.556
• Lifters Included: Yes
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Lifter Type: Hydraulic Flat Tappet
• Timing Chain and Gears Included: Yes
• Valve Stem Seals Included: No
• Retainers Included: No
• Locks Included: No
• Pushrods Included: No
• Gaskets Included: No
• Amazon ASIN: B001GF0KB2
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 26 x 10.5 x 5 inches
• Weight: 19 lb
