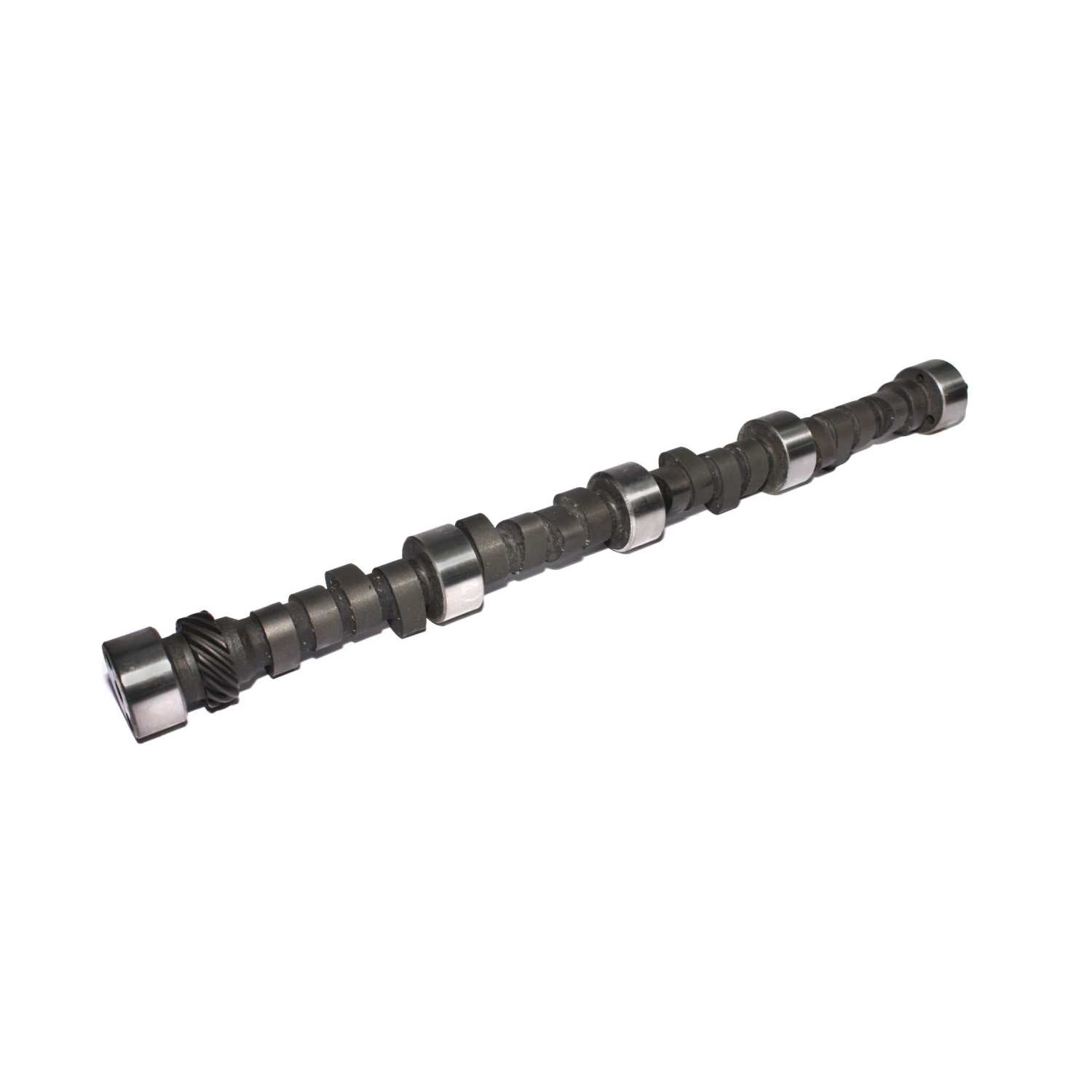

COMP Cams Drag Race 4/7 Swap 270/280 Solid Flat Cam for Chevrolet Big Block 396-454 COMP-11-683-47

Attributes:

• GTIN: 00036584084198
• Brand Name: COMP Cams
• Camshaft Series: Drag Race 4 and 7 Swap Firing Order
• Usage: Strip
• Cam Type: Solid Flat Tappet
• Grind Number: 47S 310C-10
• Basic Operating RPM Range: 4,500-7500
• Intake Duration at .050 Inch Lift: 270
• Exhaust Duration at .050 inch Lift: 280
• Advertised Intake Duration: 310
• Advertised Exhaust Duration: 320
• Lobe Separation: 110
• Intake Valve Lift: 0.638
• Exhaust Valve Lift: 0.638
• Lifters Included: No
• Valve Springs Required: Yes
• Assembly Lubricant Included: Yes
• Camshaft Gear Attachment: 3-Bolt
• Camshaft Material: Cast Iron
• Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
• Lifter Type: Solid Flat Tappet
• Amazon ASIN: B000P5G5DQ
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24.5 x 3 x 2.75 inches
• Weight: 10.38 lb
