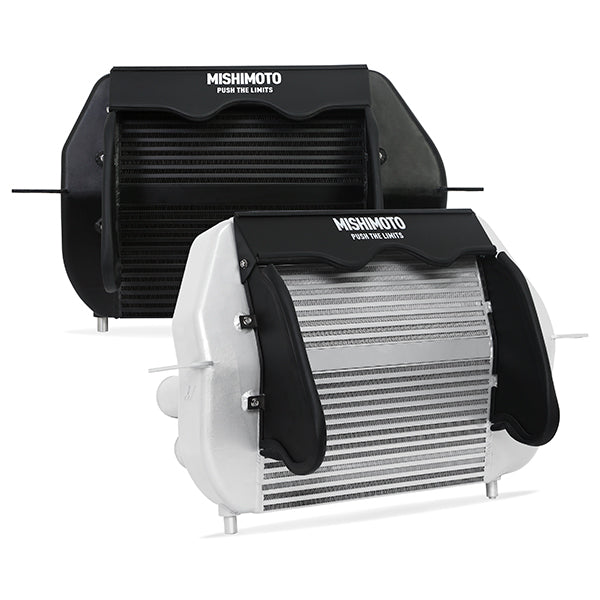

Mishimoto Ford F-150 Ecoboost Intercooler MMINT-F150-11BK

Cool down those charge air temperatures with the Mishimoto direct-fit performance intercooler kit for the 2011-2014 Ford F-150 EcoBoost. The small, factory intercooler sits in the bottom part of spacious, but unconventionally shaped cavity behind the front bumper -- There's a lot of wasted space there that could be used for cooling improvements! That's why the Mishimoto intercooler has been cleverly engineered to feature a unique angled design to take full advantage of the space for maximum performance, boasting an 88-percent increase in core size, a 66-percent increase in internal core volume, and a 40-percent increase in external fin surface area. Our all-aluminum, TIG-welded core is a tough and durable as the rest of your truck, and incorporates an NPT-threaded bung on the bottom to help deal with the condensation that the 2011-2014 F-150 is notorious for. Also included is a CNC bypass bung for 2011-2012 trucks, and a set of air diversion plates to guide ambient air directly through the core for the best performance possible. Speaking of performance, this intercooler has been dyno-tested for maximum gains using both the stock tune and a specialized tune to optimize the ECU to the improved cooling performance. The Mishimoto intercooler lowers intake temperatures by 50 F (10 C) compared to the factory part. Available in your choice of Stealth Black or Sleek Silver, every 2011-2014 F-150 EcoBoost intercooler fits with both the stock intercooler pipes and the upcoming Mishimoto performance hot and cold pipes, and each intercooler ships with the Mishimoto lifetime warranty.

• Direct fit for the 2011--2014 Ford F150 Ecoboost
• 50 F (10 C) reduction in AIT
• 88-percent increase in core size
• 66-percent increase in internal core volume and 40-percent increase in external fin surface area
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748354031348
• Brand Name: Mishimoto
• TechSpec Applications: 2011-2014 Ford F-150 3.5L V6 EcoBoost--2015-2017 Ford Expedition 3.5L V6 EcoBoost--2015-2017 Lincoln Navigator 3.5L V6 EcoBoost
• TechSpec Engine Codes: 3.5L V6 EcoBoost
• TechSpec Chassis Codes: N/A
• TechSpec Maximum Recommended Boost Pressure (PSI): 50
• TechSpec Maximum Recommended Horsepower: N/A
• TechSpec Overall Length (in): 27.6
• TechSpec Overall Height (in): 19
• TechSpec Overall Width (in): 6.75
• TechSpec Core Type: Bar-and-Plate
• TechSpec Core Thickness (in): N/A
• TechSpec Core Length (in): N/A
• TechSpec Core Height (in): N/A
• TechSpec Inlet (in): 2.5
• TechSpec Outlet (in): 3
• TechSpec Weight (lbs): N/A
• TechSpec Note: N/A
• TechSpec Includes: (1) Mishimoto Intercooler--(3) Air Diversion Panels with Assembled Rubber Trim--Mounting Hardware--(1) CNC Bypass Bung--Mishimoto Lifetime Warranty
• TechSpec Installation Notes: N/A
• TechSpec Pipe Shape: N/A
• TechSpec Pipe Diameter: N/A
• TechSpec Pipe Length: N/A
• TechSpec Centerline Radius: N/A
• SellingPoint01: Direct fit for the 2011-2014 Ford F-150 EcoBoost
• SellingPoint02: 50F (28C) reduction in AIT
• SellingPoint03: 88-percent increase in core size
• SellingPoint04: 66-percent increase in internal core volume and 40-percent increase in external fin surface area
• SellingPoint05: Includes air diversion plates to direct air through the intercooler core for maximum efficiency
• SellingPoint06: Stock location prevents airflow blockage to radiator and AC condenser
• SellingPoint07: Features CNC Bypass Plug for 2011-2012 models
• SellingPoint08: All-aluminum, TIG-welded construction
• SellingPoint09: Available in Sleek Silver or Stealth Black
• SellingPoint10: Fits with stock, Mishimoto, and most aftermarket intercooler pipe kits
• SellingPoint11: 11 whp and 13 tq bolt-on power increase with stock tune
• SellingPoint12: 39 whp and 33 tq bolt-on power increase with aftermarket performance tune
• SellingPoint13: 1/4-in NPT drain plug incorporated into lower mount
• SellingPoint14: Mishimoto Lifetime Warranty
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 37 x 9 x 25 inches
• Weight: 48 lb
