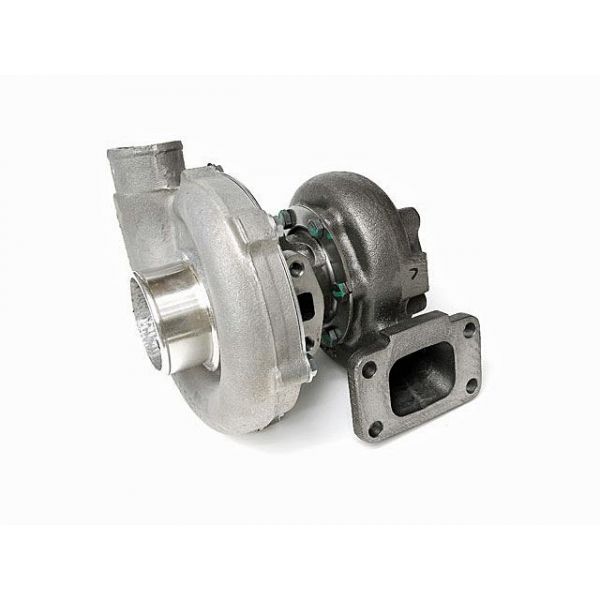

Garrett TA3405 Turbocharger "50" T3/T4E 0.63 A/R 466159-5011S

The T3/T4 hybrid turbo that started it all. Garrett's T3/T4 is an affordable turbo with great spool characteristics and excellent durability. Many people have had tremendous success with this simple unit. Available with (4) different compressor trims, we normally recommend 57trim for 4 cylinder engines however 50 trim is also very popular.

Compressor Specifications

• 0.60 AR T04E compressor housing

Compressor Trim Option

• 50 Trim¬†- max flow rate of 46 lb/min. Efficient to 420 whp.
• 54 Trim¬†- max flow rate of 44 lb/min. Efficient to 400 whp.
• 57 Trim¬†- max flow rate of 50 lb/min. Efficient to 460 whp.
• 60 Trim¬†- max flow rate of 53 lb/min. Efficient to 490 whp.

Turbine Specifications

• Stage 3 (standard) or stage 5 turbine wheel available
• 0.48, 0.63 (standard), or 0.82A/R turbine housing available
• 4 bolt standard turbine discharge
