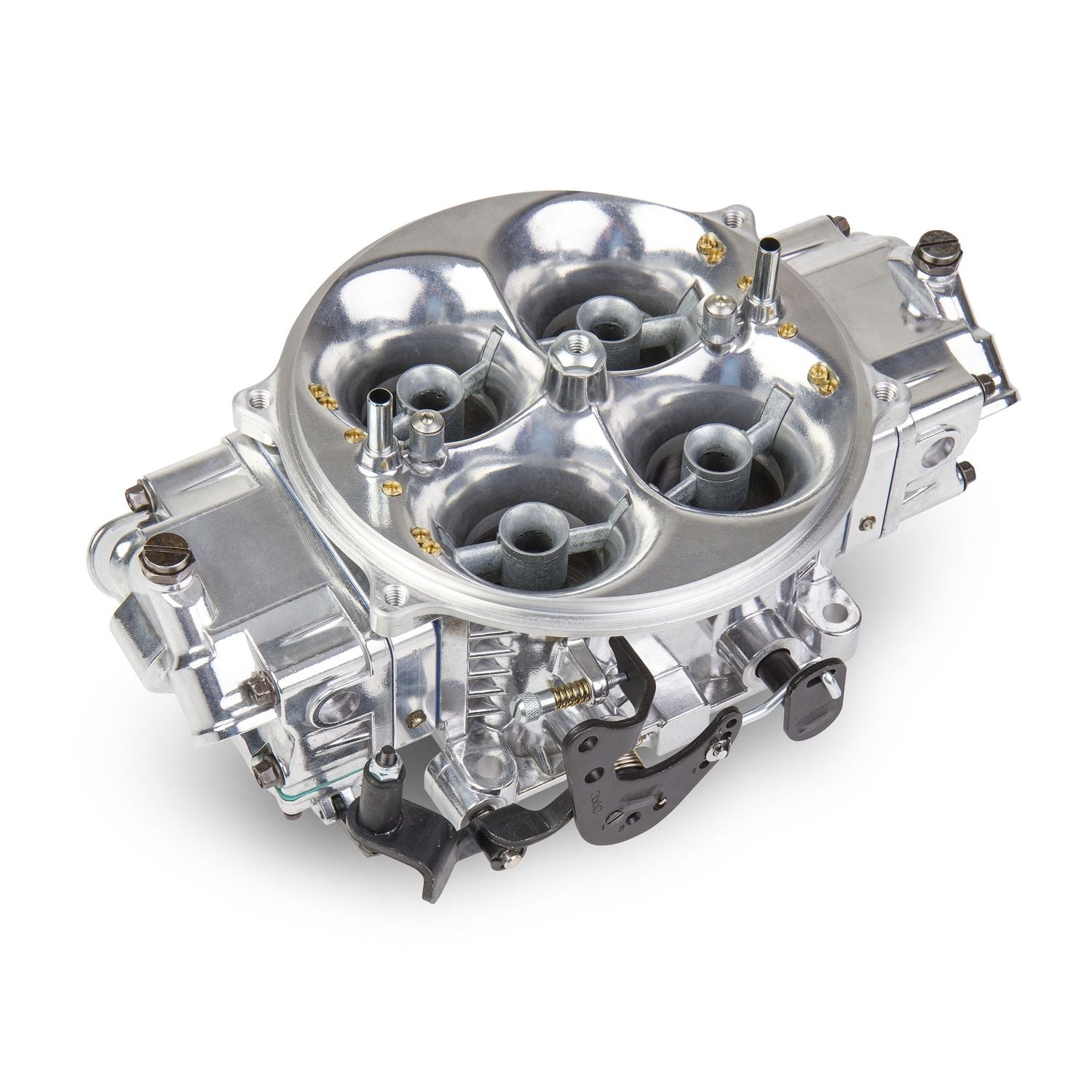

Gen 3 Ultra Dominator® SP Carburetor

Holley engineers have taken the state-of-the-art Gen 3 Ultra carburetors and created a budget friendly version that is perfect for street/strip applications as well as all out bracket or sportsman drag cars. The new Holley SP Dominator carburetors feature the patent pending Gen 3 main–body which is 5/16" taller than the previous generation! This new height allowed for larger radius air entries to deliver smoother flow that equates to improved throttle response and consistency. An extended air cleaner flange is incorporated for easy air scoop attachment when using the available air scoop adapter. Other features include all aluminum construction, tunable billet metering blocks, throttle position sensor mounting points and knurled (hand adjustable) curb idle screws. Each calibration has been dyno and track tested to deliver proven performance!

• All Aluminum Construction Saves 3.8 lbs. Over Original Models
• 28% Weight Savings
• Shiny With Billet Aluminum Metering Block and Black Hardware
• Calibrations Optimized For Todays Race Engines and New Fuels
• Fully Machined From Venturi Throat To Throttle Bore For Perf
• Annular Booster Deliver Excellent Signal and Throttle Response
• Screw In Air Bleeds Offer Precise Tuning Capabilities
• Metering Blocks Feature Improved True Gasket Sealing
• Dual 50CC Accelerator Pumps Fuel From Idle To Full Throttle
• 4 Corner Idle Allows You To Precisely Control Your Idle System
• Clear Sight Windows On Fuel Inlet Side For Fuel Level Adjustment
• Notched Float and Jet Extension Are Factory Installed

Attributes:

• GTIN: 00090127725252
• Brand Name: Holley
• Throttle Bore: 2.000 in.
• Type: Automotive
• Usage: Racing
• Venturii Size: 1.690 in.
• WARNING CA Proposition 65: Yes
• WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Barrel: Four
• Billet Color: Clear SP Dominator
• Carburetor Type: 4500
• CFM: 1050
• Choke: None
• Circuit: 3
• Emission: Without EGR
• Finish: Shiny
• Flange: 4500
• Fuel Inlet: Dual
• Fuel Type: Gasoline
• High Speed Air Bleed: 40
• Idle Air Bleed Size: 53
• Intermediate Air Bleed: 63
• Material: Aluminum
• Primary Main Jet: 84
• Primary Power Valve: 5.5
• Secondary Main Jet: 94
• Secondary Pump Nozzle Size: 35
• Secondary Type: Mechanical
• Supercharged Application: No

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 14.4000 x 12.7000 x 9.3000 inches
• Weight: 13.3000 lb
