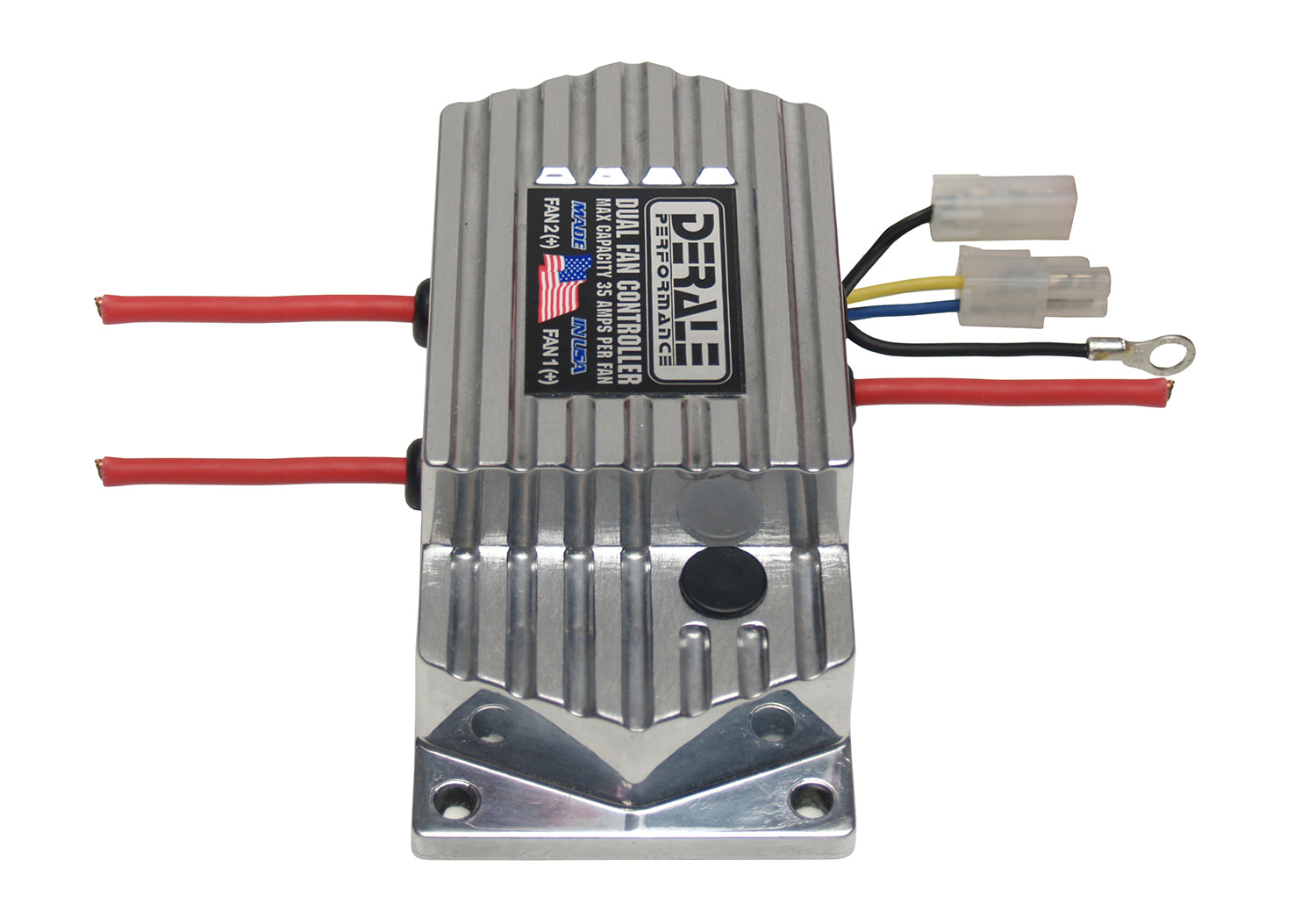

Derale High Amperage Adjustable Dual Electric Fan Controller, 3/8" NPT Thread In Probe 16789

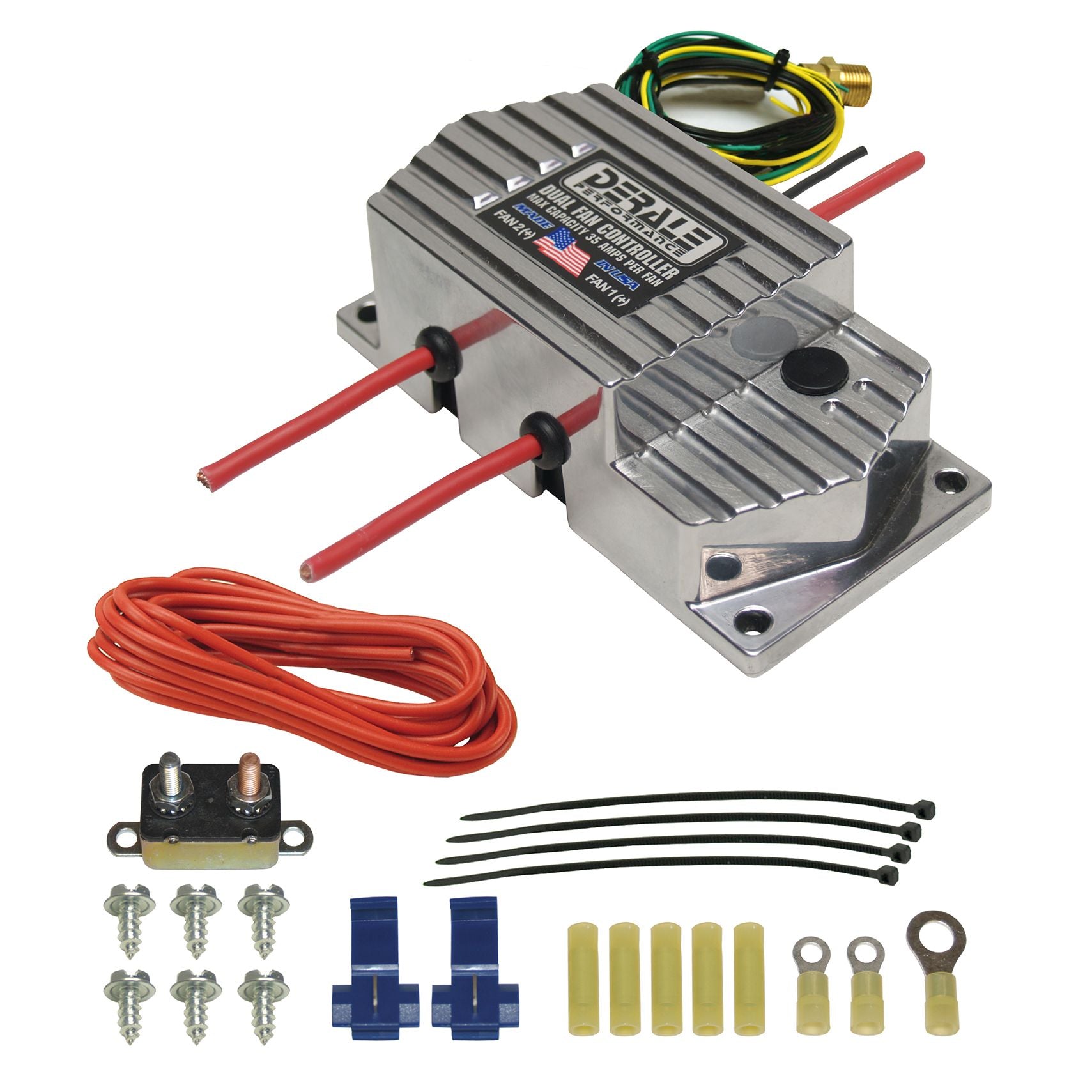

Designed with quality and performance in mind, this High Amperage Dual Fan Controller breaks new ground in the industry of electric fan controllers. 100% USA made, a bulletproof design, 35 amp per fan amperage rating, adjustability from 150°-240°F, and a die cast bright finish aluminum cap, come together to make this dual fan controller stand out from the crowd. It's capable of controlling two separate 35 amp fans at different turn-on temperatures, with only a single probe. The first electric fan will be activated at the temperature set by the user followed by the second electric fan when the temperature becomes 10°F warmer. Each electric fan will turn off at 10°F below its turn-on temperature. Kit comes complete with wiring harness, fusible link, all necessary electrical connectors and 3/8" NPT thread-in probe.

Attributes:

• GTIN: 00083277167898
• Brand Name: Derale
• Amp Rating: 35 amp per fan
• Color: Black
• Height: 1-9/16
• Length: 4-5/8
• Width: 2-3/8

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4.375 x 7 x 2.25 inches
• Weight: 1.625 lb

PDF:
