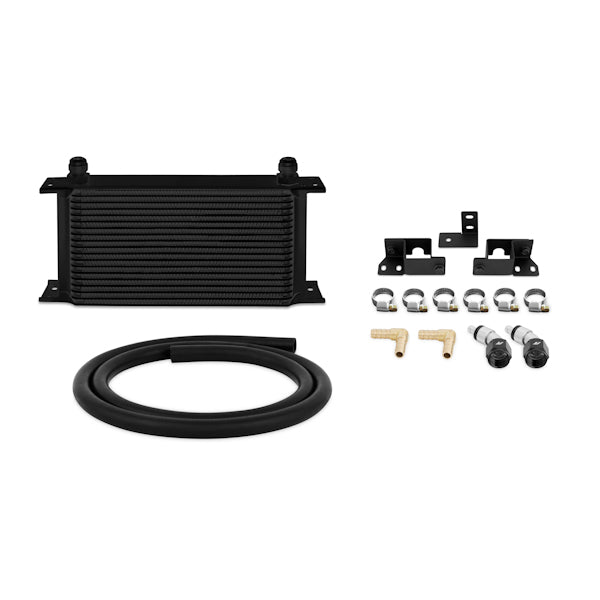

Mishimoto Jeep Wrangler JK Transmission Cooler Kit, 2007-2011 MMTC-WRA-07BK

The Jeep JK is known to experience high transmission fluid temperatures, especially when off-roading or driving in hot climates.Mishimoto has developed an ideal upgrade for reducing temperatures with our direct-fit transmission cooler kit, engineered specifically for the JK chassis.This kit uses precision-engineered brackets to mount a large 19-row cooler in the front grille area, thus maximizing airflow and providing significant increases in cooling efficiency.This kIt'significantly reduces transmission fluid temperatures, resulting in decreased transmission wear and improved vehicle safety.The Mishimoto Jeep JK Transmission Cooler Kit includes all lines and hardware necessary for an easy installation.This kit is a perfect complement to the Mishimoto Jeep JK oil cooler kit and the Mishimoto all-aluminum radiator for the ultimate cooling solution for your Jeep JK.As with all our products, this kit includes the Mishimoto lifetime warranty.

• Direct fit for 2007-2011 Jeep Wrangler JK
• 19-row bar-and-plate oil cooler for efficient cooling
• Reduces transmission fluid temperatures to prevent damage and reduce wear
• Includes brackets for easy installation
• Includes lines and fittings for leak-free performance
• Mishimoto Lifetime Warranty

Attributes:

• GTIN: 00748354009552
• Brand Name: Mishimoto
• TechSpec Rows: 19
• TechSpec Core Construction: N/A
• TechSpec Core Length (in): 11
• TechSpec Core Height (in): 5.43
• TechSpec Core Thickness (in): 1.97
• TechSpec Engine Codes: EGH
• TechSpec Chassis Codes: JK
• TechSpec Installation Notes: 22 in-lbs recommended for all worm-gear clamps.--These clamps have an operating range of 18-27 in- 2-3NM.--Do not exceed the maximum torque rating of 27 in-lbs----Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb
• TechSpec Caution: It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team.
• TechSpec Overall Height (in): 12.95
• TechSpec Overall Length (in): 6.44
• TechSpec Overall Width (in): 1.97
• TechSpec Inlet: -10AN
• TechSpec Outlet: -10AN
• TechSpec Includes: Application Specific Mounting Brackets--19-Row Oil Cooler--6ft Black Rubber 3/8-in Transmission--45 -10AN to 3/8-in Barbed Push-On Fittings--Brass 90 Barbed Push-On Fittings--Worm Gear Clamps--Mounting Hardware Set--Mishimoto Lifetime Warranty
• TechSpec Applications: 2007-2011 Jeep Wrangler--2007-2011 Jeep Wrangler Unlimited
• TechSpec Fluid Capacity (qts): N/A
• TechSpec Note: Requires modification to factory transmission cooler lines.
• SellingPoint01: Direct fit for 2007-2011 Jeep Wrangler JK
• SellingPoint02: 19-row bar-and-plate oil cooler for efficient cooling
• SellingPoint03: Reduces transmission fluid temperatures to prevent damage and reduce wear
• SellingPoint04: Includes brackets for easy installation
• SellingPoint05: Includes lines and fittings for leak-free performance
• SellingPoint06: Mishimoto Lifetime Warranty
• SellingPoint07: N/A
• SellingPoint08: N/A
• SellingPoint09: N/A
• SellingPoint10: N/A
• SellingPoint11: N/A
• SellingPoint12: N/A
• SellingPoint13: N/A
• SellingPoint14: N/A
• SellingPoint15: N/A

Extended Information:

• Country of Origin: China
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 18 x 8 x 14.5 inches
• Weight: 9.5 lb
