COMP Cams Magnum 230/230 Hydraulic Roller Cam SK-Kit for Ford 351W COMP-SK35-452-8

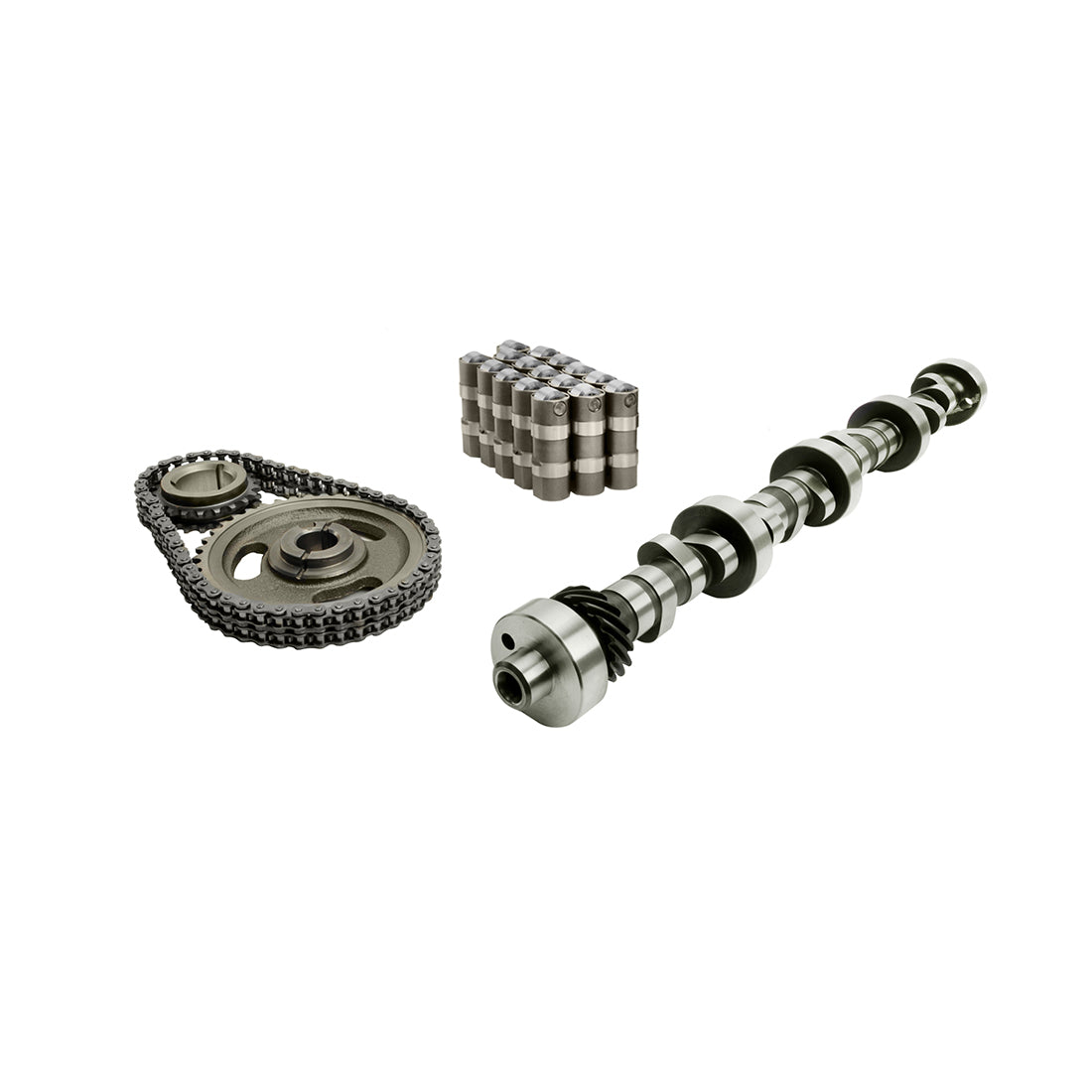

SK-KIT - Small Kit Includes: Camshaft, Lifters, Timing Chain Set, Assembly Lube, Decals and Instructions.

• With an aggressive lobe profile this Cam kit provides better throttle response and increases top in power.

Attributes:

• GTIN: 00036584017509
• Brand Name: COMP Cams
• Pushrods Included: No
• Gaskets Included: No
• K-Kit Upgrade: K35-452-8
• Engine Family: Ford 351W 8 Cylinder (1969-1996)
• Amazon ASIN: B001GF58O6
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: No
• C.A.R.B. Exemption Reason: N/A
• C.A.R.B. E.O. Number: N/A
• Kit Type: SK-Kit - Small Kit
• Camshaft Series: Magnum
• Usage: Street/Strip
• Cam Type: Hydraulic Roller
• Basic Operating RPM Range: 2,500-6,000
• Intake Duration at .050 Inch Lift: 230
• Exhaust Duration at .050 inch Lift: 230
• Advertised Intake Duration: 290
• Advertised Exhaust Duration: 290
• Lobe Separation: 110
• Intake Valve Lift: 0.544
• Exhaust Valve Lift: 0.544
• Lifters Included: Yes
• Valve Springs Required: Yes
• Assembly Lubricant Included: No
• Camshaft Gear Attachment: 1-Bolt
• Camshaft Material: Austempered Ductile Iron
• Lifter Type: Hydraulic Roller
• Timing Chain and Gears Included: Yes
• Valve Stem Seals Included: No
• Retainers Included: No
• Locks Included: No

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 26 x 10.5 x 5 inches
• Weight: 23 lb
