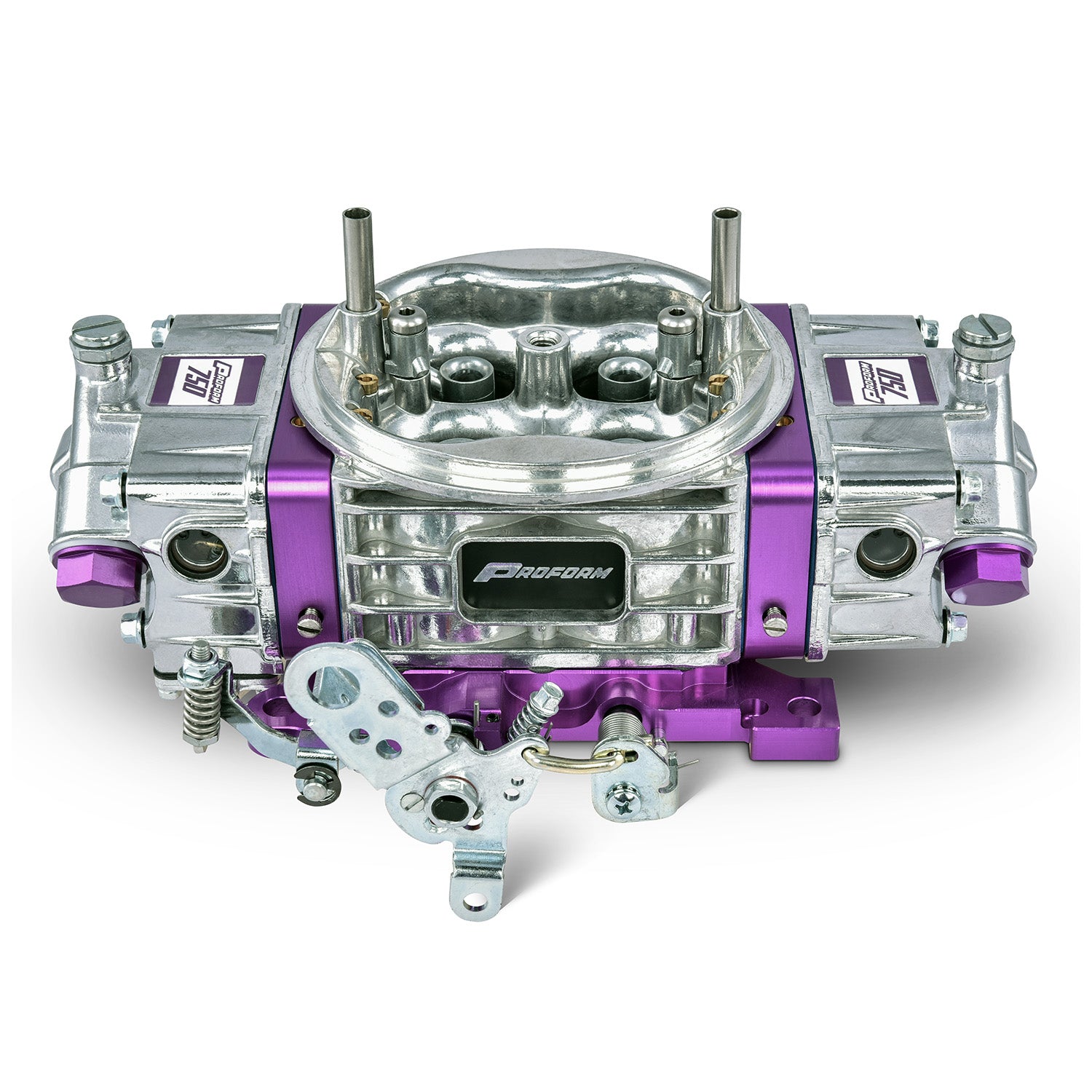

Proform Race Series Carburetor; Circle Track Model; Gas; 750 CFM; Mech. Secondaries 67215

PROFORM's Next Gen Race Series carbs are now available for Circle Track racers! PROFORM's new Race Series Carburetor is hand assembled in the U.S. utilizing the PROFORM's Next Gen (new in 2022) High-Flow Carburetor Main Body, durable billet metering blocks, a high performance billet throttle baseplate, and Next Gen (new in 2022) Aluminum Fuel Bowls. The PROFORM Race Series Carb includes: PROFORM High-Flow Carburetor Main Body with Dyno-Proven Horsepower and Torque Gain, Adjustable Screw-In Air Bleeds, No Air Horn, Choke Tower, or Choke Control, and the best part is that it uses standard service and tuning components. PROFORM Billet Throttle Base Plates with Adjustable Secondary Air Flow Cam Bracket, and Power Valve Blow Out Protection, Timed and Full Vacuum Tubes for Accessories and Tuning, Button Torx Head Throttle Plate Screws, Slabbed Shafts, Slip-Link Mechanical Secondary Linkage, Serviceable Throttle Levers. PROFORM Billet Metering Blocks that are Durable, No Warping or Porosity Problems, Changeable Idle Feed Restriction, and new Fuel Control Baffling. PROFORM Next Gen Aluminum Fuel Bowls that are Lightweight and include Sight Glass Windows for easy float adjustment, and in 2022 Internal Baffling and a Lower Fuel Ramp for Increased Fuel Control. This Circle Track specific model also includes wedge shaped fuel bowl floats to reduce fuel build up while continuously turning.

Attributes:

• GTIN: 00037995672158
• Brand Name: Proform
• Air Bleed Material: Brass
• Air Bleed Material: Brass
• Air Bleed Size (Inner High Speed): 35 / 35
• Air Bleed Size (Outer Idle): 70 / 70
• Air Bleeds Included: Yes
• Air Bleeds Included: Yes
• Base Plate Material: Billet Aluminum
• Booster Style: Down-Leg Boosters
• Calibration: Universal
• CFM: 750 CFM
• Choke: No Choke
• Color: Silver
• Discharge Nozzle Size (Primary / Secondary): .031 in. / .031 in.
• EGR: Without EGR
• Emissions: 49 State Legal
• Feature/Benefit: Lightweight Aluminum Construction
• Finish: Vibratory Tumble Polished
• Flange Style: Square Bore
• Ford Kickdown Bracket Included: No
• Fuel Inlet Thread: 7/8-in. x20
• Fuel Inlet: Dual
• Fuel Line Inlet Distance: 9-11/16 inch
• Fuel: Gasoline
• Height (IN): 3.25 inch
• Idle/High Speed Air Bleed Sizes: 70 / 35
• Main Body Material: Lightweight Aluminum
• Material: Aluminum
• Metering Block Material: Billet Aluminum
• Needle & Seat: 110
• Number of Barrels: 4
• Part Type: Carburetor
• Primary Main Jet Size: 76 / .080
• Primary Power Valve (Hg): 4.5
• Secondaries: Mechanical Secondaries
• Secondary Main Jet Size: 76 / .080
• Series: Race Series
• Throttle Linkage: Universal

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.5 x 11.25 x 7.5 inches
• Weight: 9.8 lb
