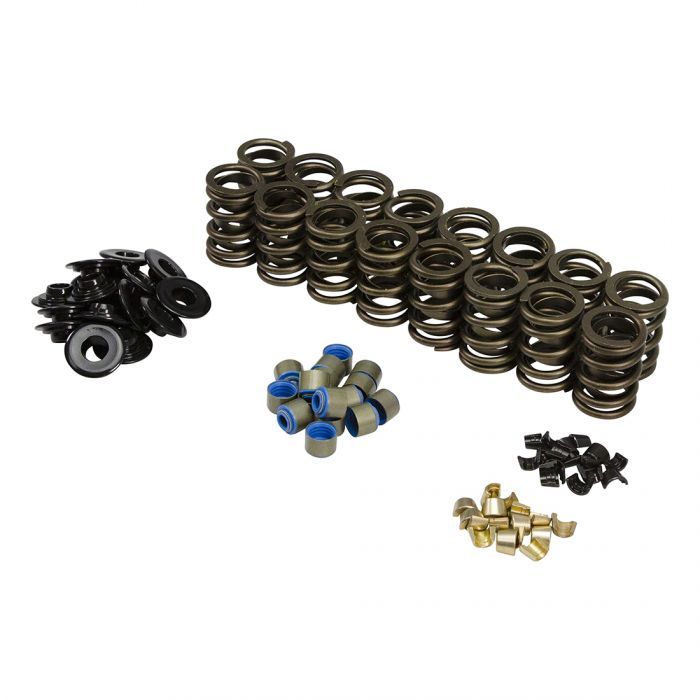

COMP Cams SPRING KIT, FORD GT40 / GT40P CYLINDER HEAD, .570" MAX LIFT COMP-GT40CS-KIT

COMP Cams GT40 Valve Spring Kit is designed to maximize the potential of GT40 and GT40P Cylinder Heads when using a flat tappet camshaft. This kit allows up to .570" lift and provides spring rates that can handle significantly more aggressive lobe profiles. This kit has been developed to make your valve train upgrade as easy as possible by combining quality components in a package that does not require any machining! These components will drop right onto stock GT40& GT40P cylinder heads.

• Drop-in valve spring kit for Ford GT40 & GT40P Cylinder Heads
• No machining required
• Includes 8 standard and 8 +.050 locks to achieve correct installed height with factory staggered valve tip lengths, Includes metal body, Viton valve stem seals
• -.570" max lift

Attributes:

• GTIN: 00036584419884
• Brand Name: COMP Cams
• Valve Spring Style: Single
• Number of Springs Per Valve: 1
• Installed Height (in): 1.8
• Load at Installed Height (lbs): 110
• Open Height (in): 1.3
• Load at Open Height (lbs): 318
• Recommended Max Lift (in): 0.57
• Outside Diameter of Outer Spring (in): 1.486
• Inside Diameter of Outer Spring (in): 1.052
• Inside Diameter of Inner Spring (in): N/A
• Spring Rate (lbs/in): 416
• Damper Spring Included: Yes
• Maximum Coil Bind Height (in): 1.17
• Valve Spring Finish: Raw
• Retainer Material: Chromoly
• Lock Style: 10 Degree
• Valve Stem Diameter (in): 11/32
• Valve Stem Seal Type: Positive Stop
• Valve Stem Seal Material: Viton
• Integrated Spring Seat: No
• Spring Seat OD (in): N/A
• Spring Seat Step Diameter (in): N/A
• Machine Work Required: No
• Inside Diameter: 1.052
• Installed Height: 1.8
• Installed Pressure: 110
• Open Pressure: 318
• Outside Diameter: 1.486
• Spring Type: Single Spring

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: x x inches
• Weight: 0 lb
