Derale Transmission Cooling Pan, Reduces Fluid Temps up to 50 DegreeF, Increase Capacity 14210

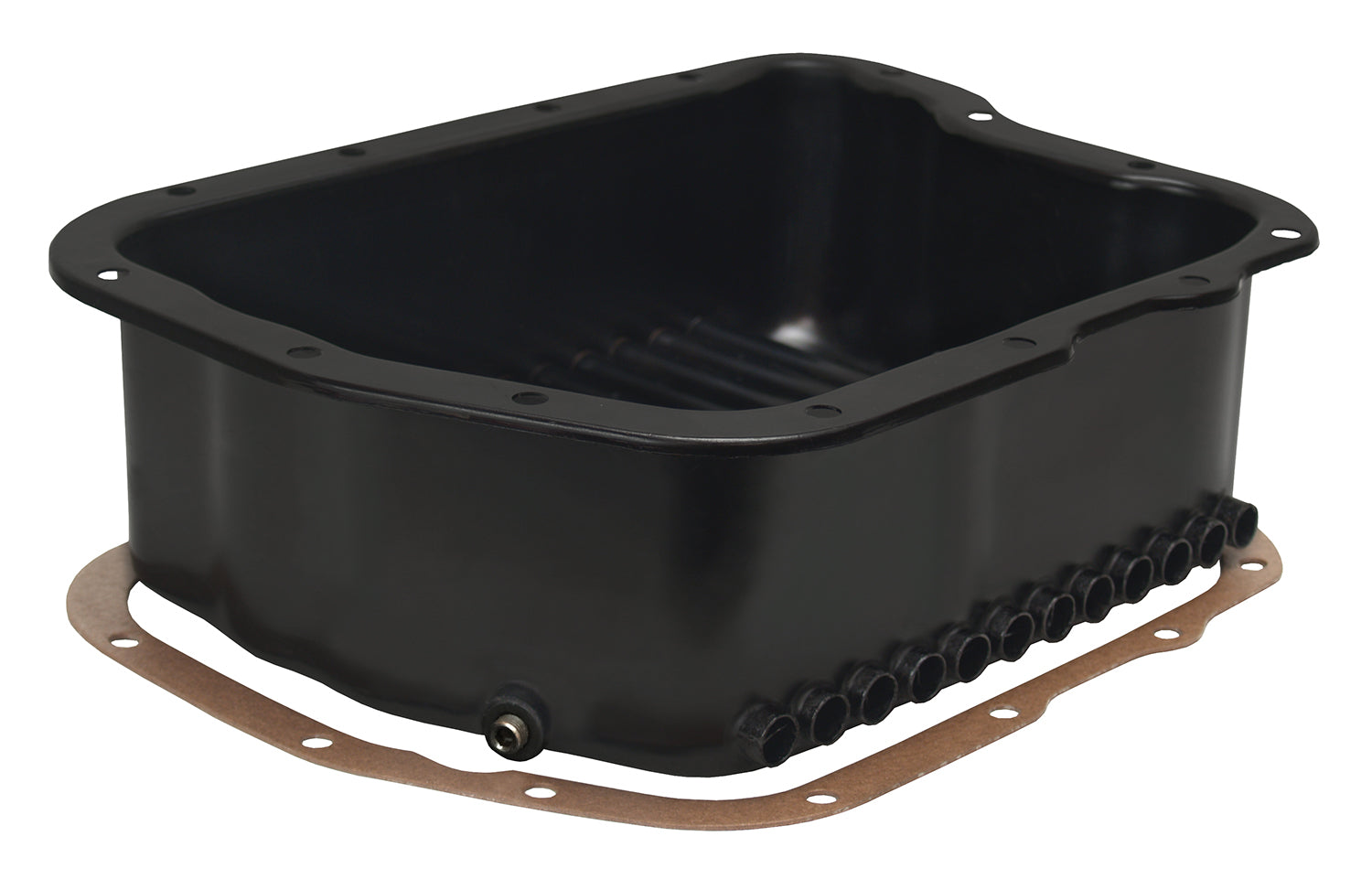

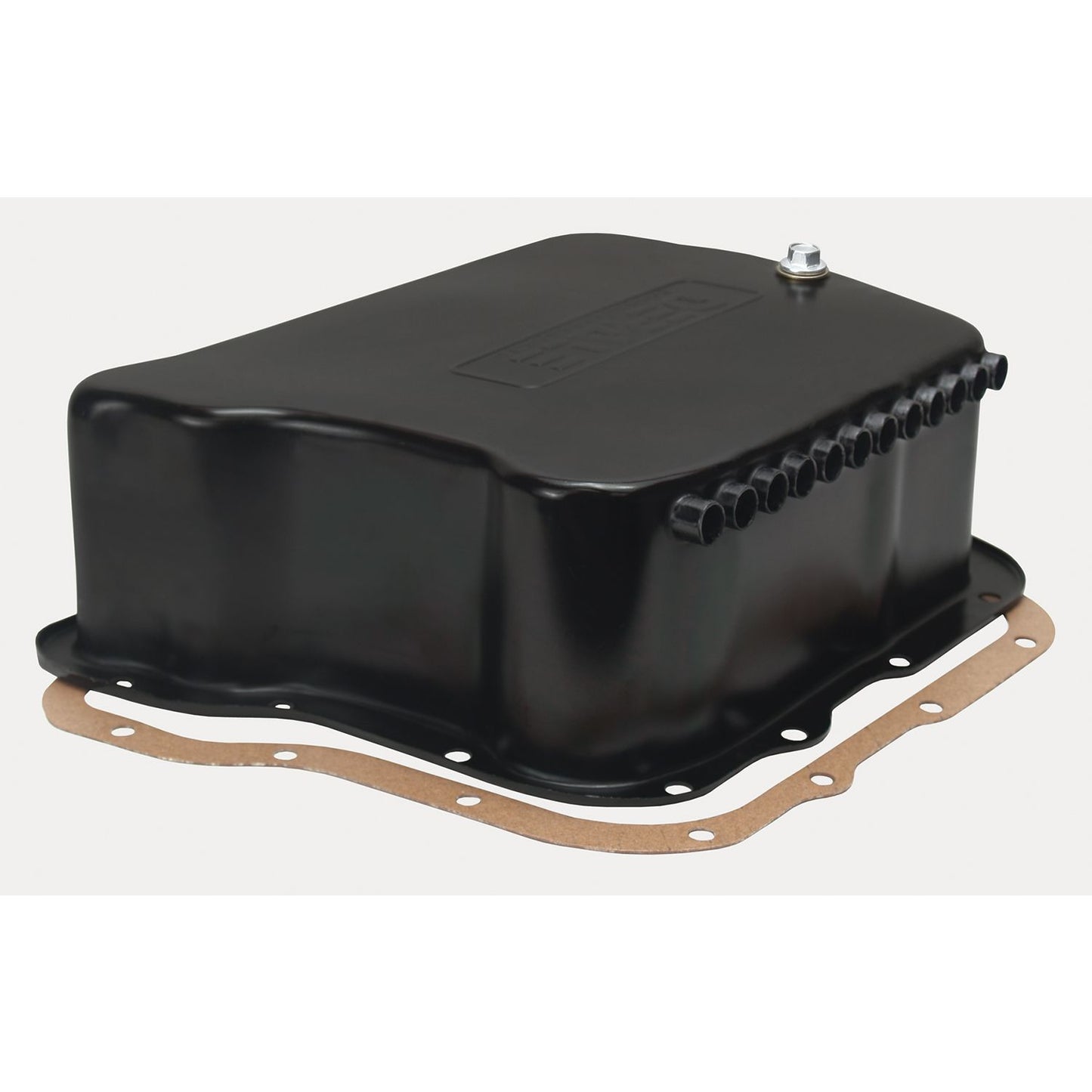

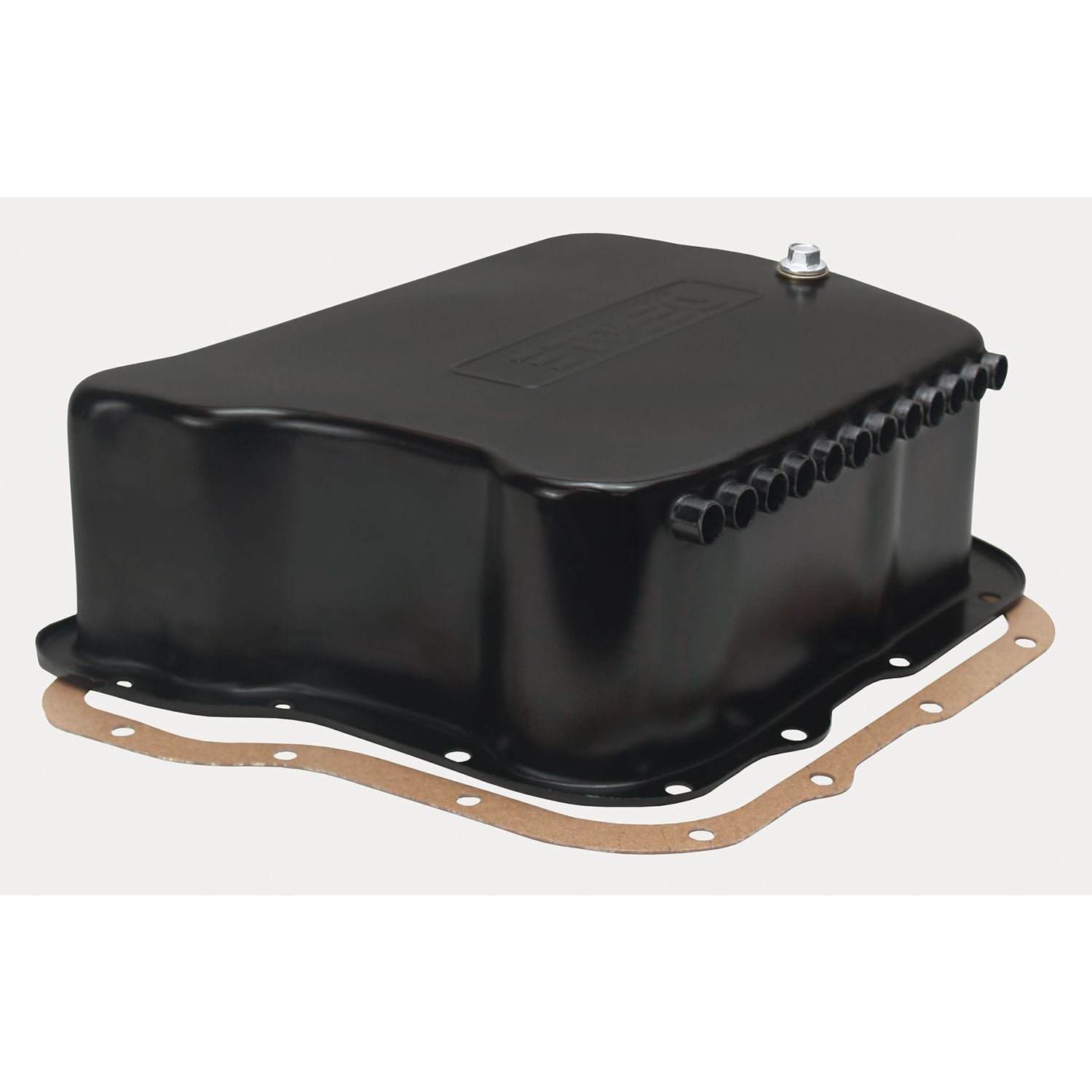

Derale's Transmission Cooling Pan #14210 uses air passing beneath the vehicle and redirects it to help lower transmission oil temperatures. Designed for Chryslers popular Torqueflight automatic family including the A727, later A518 (46RH, 46RE) and A618 (47RH, 47RE, 48RE) models and several model derivatives, this pan features brazed, turbulator-equipped airway tubes passing through the lower section of the transmission pan for more efficient cooling, each is individually pressure tested to ensure a leak-free pan. We've included a much stronger magnetic drain plug and rubber/steel reusable washer, in addition to a 1/8" NPT temperature sender bung located in the side of the pan. Finished with a durable black two-stage coating, each pan also includes neoprene gasket and 1/8" NPT temperature sender plug.

Attributes:

• GTIN: 00083277142109
• Brand Name: Derale
• Color: Black
• Extra capacity from A518 pan: 2 qts. 3 oz.
• Extra capacity from A727 pan: 5 qts. 16 oz.
• Pan depth: 4-1/2
• Temp bung size: 1/8 NPT
• Tube depth: 3-5/8

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 15 x 22.625 x 7.5 inches
• Weight: 10.25 lb
