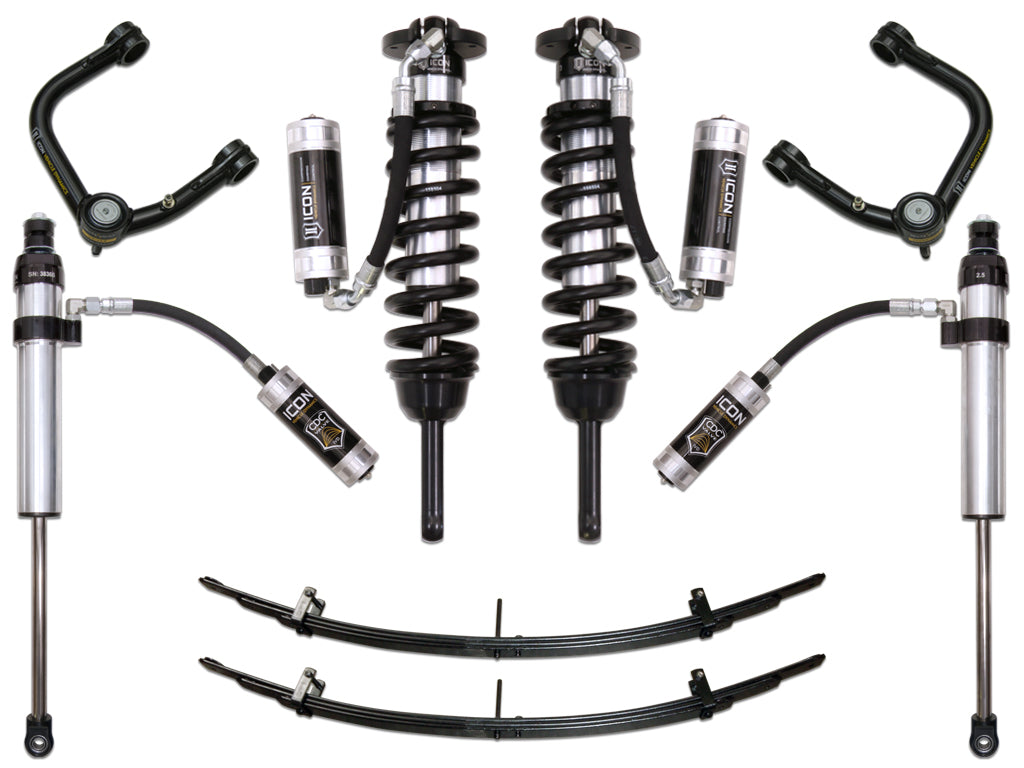

ICON Vehicle Dynamics 05-15 TACOMA 0-3.5"/ 16-UP 0-2.75" STAGE 6 SUSPENSION SYSTEM W TUBULAR UCA K53006T

This system features billet aluminum upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Shocks are fully rebuildable and revalveable
• Bolt-on system means no cutting or welding necessary for install
• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Increased wheel travel and ride quality over stock
• Rear 2.5 Aluminum Series remote reservoir shocks feature anodized, one-piece impact extruded aluminum shock bodies and 7/8" shafts
• Adjustable coilovers with CDCV provide up to 3.5" of front lift height on 2005 to 2015 models and up to 2.75" on 2016-up models
• FK Rod End bearings for extended longevity and minimal deflection
