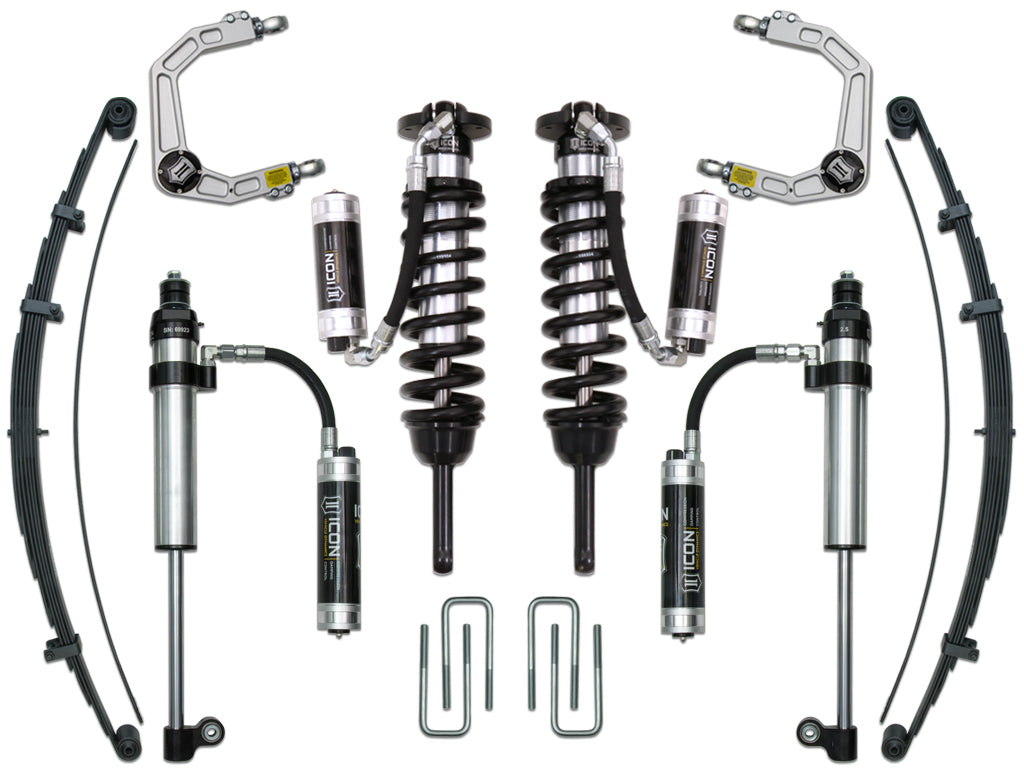

ICON Vehicle Dynamics 05-15 TACOMA 0-3.5"/ 16-UP 0-2.75" STAGE 9 SUSPENSION SYSTEM W BILLET UCA K53009

ICON Vehicle Dynamics 2005-UP Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. Throughout the development of these systems ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 9 system goes a step further in delivering ICON performance to the Tacoma with the addition of rear suspension components that include an ICON RXT multi-rate leaf spring and a unique RXT-specific 2.5 Series shock.

• Increased wheel travel and ride quality over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Shocks are fully rebuildable and revalveable
• Bolt-on system means no cutting or welding necessary for install
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers with CDCV provide up to 3.5" of front lift height on 2005 to 2015 models and up to 2.75" on 2016-up models
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• 2.5 Aluminum Series remote reservoir RXT rear shocks feature one-piece impact extruded aluminum cylinders and 7/8" shafts
• Multi-Rate Leaf Spring with 3 user-adjustable spring rates for unique vehicle configurations
• ICON RXT CDCV Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location
