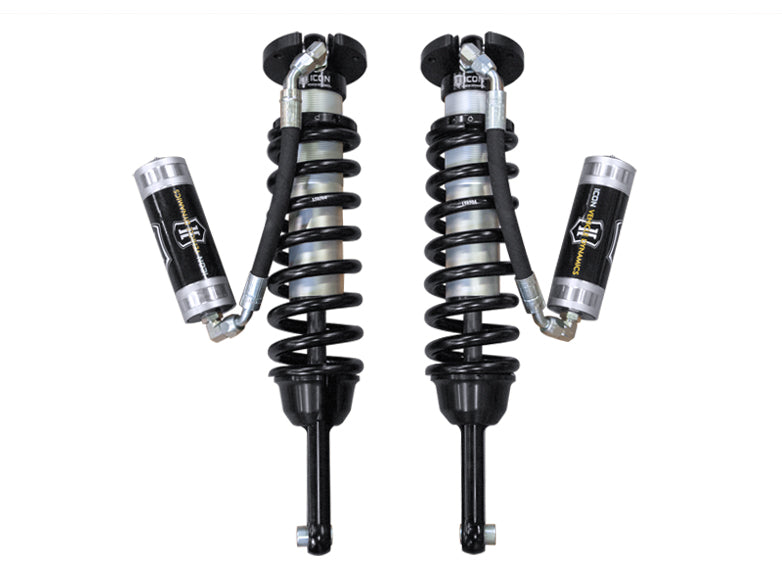

ICON Vehicle Dynamics 05-UP TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT 58735

Name: ICON Vehicle Dynamics 05-UP TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT 58735
Brand: ICON VEHICLE DYNAMICS
SKU: ICON-58735
Price: 2001.95 USD
Availability: InStock

ICON VEHICLE DYNAMICS

Part #
ICON-58735
UPC #
00840103404288

$2,001.95 USD

~~$2,102.05 USD~~ $2,001.95 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your Tacoma's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock. These coil-over’s are meant to be installed with an aftermarket uniball upper control arm kit to ensure the proper amount of wheel travel and to prevent premature ball joint wear.

Adjustable ride height from 0" - 3.5"
Race shock piston with flutter stack compression valving
Cad-plated threaded body / Extreme Weather Plating Option Available
Billet aluminum upper mount
5/8" PTFE-lined spherical bearing
Completely re-buildable
Hose Length Optimized for Increased Fluid Transfer
Mounting Bracket Orients Reservoir for Optimum Tire Clearance
External Reservoir Ensures Maximum Cooling
Chrome-silicon spring
250 PSI nitrogen-charged internal reservoir

Attributes

GTIN: 00840103404288
Brand Name: ICON Vehicle Dynamics
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Damping: NO
2917: yes
52: 2.5
50: No
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
51: yes
Grade Type: Performance
48: Eyelet
Material: Aluminum
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: Recommended Aftermarket Tires: 33" x 11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: Yes
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
409: Top of Upper Mount Plate
408: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate: 650
49: Mounting Plate
