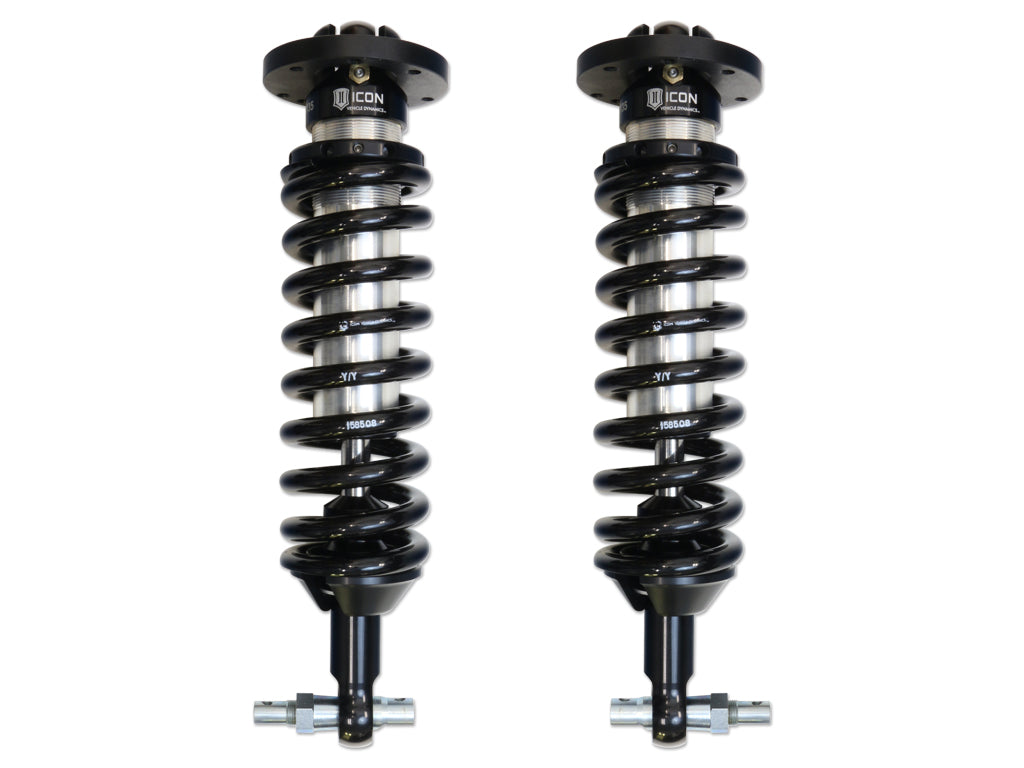

ICON Vehicle Dynamics 07-18 GM 1500 1-3" 2.5 VS IR COILOVER KIT 71505

Name: ICON Vehicle Dynamics 07-18 GM 1500 1-3" 2.5 VS IR COILOVER KIT 71505
Brand: ICON VEHICLE DYNAMICS
SKU: ICON-71505
Price: 1820.99 USD
Availability: InStock

ICON VEHICLE DYNAMICS

Part #
ICON-71505
UPC #
00840103405964

$1,820.99 USD

~~$1,912.04 USD~~ $1,820.99 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

These coil-overs are valved specifically for the new body style (GMT 900 Platform) Chevrolet and GMC half ton, 2WD and 4WD applications. They not only drastically improve the off road characteristics of the vehicle, but increase the on road handling and performance as well. These shocks add an additional inch of wheel travel when used in conjunction with an ICON Vehicle Dynamics Arm (PT# 78600). They also offer an additional amount of lift height compared to our standard travel coil-over shocks.

Less body-roll than stock truck
2.5" Diameter shock Body
Lifetime guarantee on coil-springs
Clears 33" Tall Tires
Internal Nitrogen Reservoir for Compact Design and Optimum Performance

Attributes

GTIN: 00840103405964
Brand Name: ICON Vehicle Dynamics
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Damping: NO
2917: yes
52: 2.5
50: No
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
51: yes
Grade Type: Performance
48: BAR PIN
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: NO
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
409: Top of Upper Mount Plate
408: Flat on Bar Pin
Spring Color: Black
Spring Material: Steel
49: Mounting Plate
