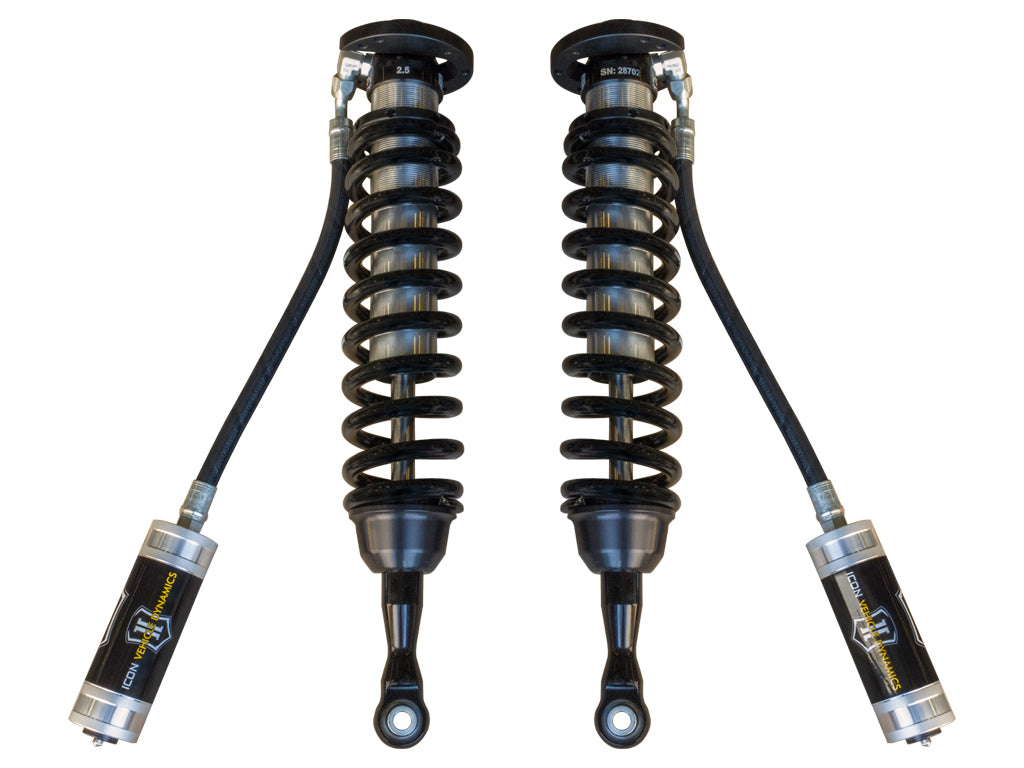

ICON Vehicle Dynamics 07-21 TUNDRA 2.5 VS RR COILOVER KIT 58750

Name: ICON Vehicle Dynamics 07-21 TUNDRA 2.5 VS RR COILOVER KIT 58750
Brand: ICON VEHICLE DYNAMICS
SKU: ICON-58750
Price: 1975.95 USD
Availability: InStock

ICON VEHICLE DYNAMICS

Part #
ICON-58750
UPC #
00840103404479

$1,975.95 USD

~~$2,074.75 USD~~ $1,975.95 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

ICON Vehicle Dynamics has taken their already perfect performing coil-over shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your Tundra's front suspension. These coil-over’s come complete with all the hardware necessary to complete the installation.

Adjustable ride height from 1" - 3" of lift over stock
Mounting Bracket Orients Reservoir for Optimum Tire Clearance
External Reservoir Ensures Maximum Cooling
Chrome-silicon spring
250 PSI nitrogen-charged internal reservoir
Race shock piston with flutter stack compression valving
Kit Includes Sway bar relocation brackets
Kit also Includes Reservoir Mounting Brackets
Cad-plated threaded body
Billet aluminum upper mount
5/8" PTFE-lined spherical bearing
Completely re-buildable
Hose Length Optimized for Increased Fluid Transfer

Attributes

GTIN: 00840103404479
Brand Name: ICON Vehicle Dynamics
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Damping: NO
2917: yes
52: 2.5
50: No
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
51: yes
Grade Type: Performance
48: Eyelet
Maximum Lift: 3
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 6” Backspace / 25mm Offset
Remote Reservoir: Yes
Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
Shaft Diameter: 0.875
409: Top of Upper Mount Plate
408: Center of Eylet
Spring Material: Steel
Spring Rate: 650
49: Mounting Plate
