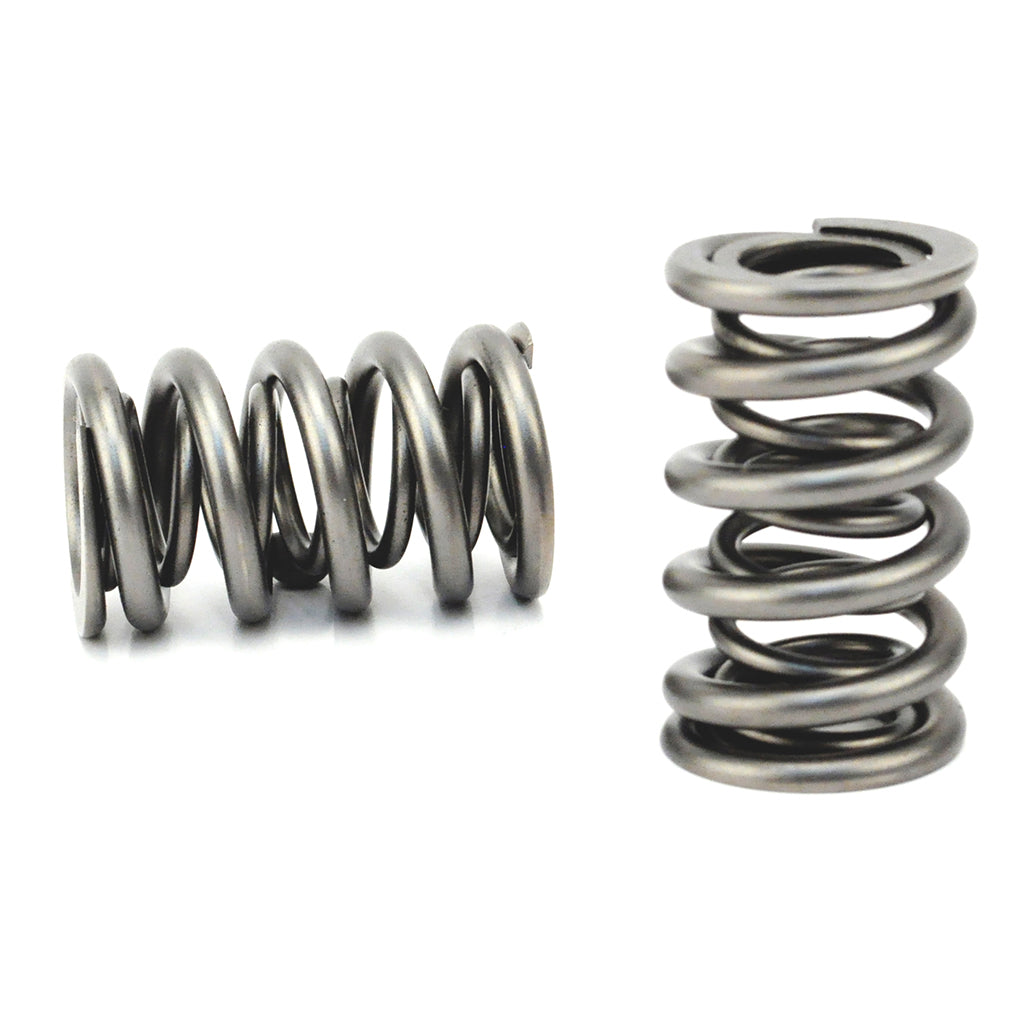

COMP Cams 1.550" High Lift Dual Valve Spring for Racing Applications COMP-26547-1

Attributes:

• GTIN: 00036584380986
• Brand Name: COMP Cams
• C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• C.A.R.B. E.O. Number: N/A
• Number of Springs: 1
• Compatible .520" Guide Diameter Spring Seat: 4641-1
• Valve Spring Series: Dual
• Damper: No
• Compatible Retainer: 1732-1
• Compatible Spring Cup (O.D. Locator): N/A
• Compatible .640" Guide Diameter Spring Seat: 4643-1
• Compatible .570" Guide Diameter Spring Seat: 4642-1
• Compatible Shims: 4757
• Outer Spring Outside Diameter: 1.55
• Spring Rate: 583
• Open Load: 810
• Seat Pressure: 285
• Installed Height: 2.15
• Coil Bind Height: 1.19
• Inner Spring Inside Diameter: 0.784
• Outer Spring Inside Diameter: 1.106
• Spring Style: Dual
• Amazon ASIN: B07M9GWJZN
• C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
• C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
• C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4.5 x 2 x 1.1 inches
• Weight: 0.26 lb
