ICON Vehicle Dynamics 10-UP FJ/4RNR/10-UP GX EXT TRAVEL 2.5 VS IR COILOVER KIT 700 58647-700

Name: ICON Vehicle Dynamics 10-UP FJ/4RNR/10-UP GX EXT TRAVEL 2.5 VS IR COILOVER KIT 700 58647-700
Brand: ICON VEHICLE DYNAMICS
SKU: ICON-58647-700
Price: 1726.35 USD
Availability: InStock

ICON VEHICLE DYNAMICS

Part #
ICON-58647-700
UPC #
00840103404035

$1,726.35 USD

~~$1,812.67 USD~~ $1,726.35 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

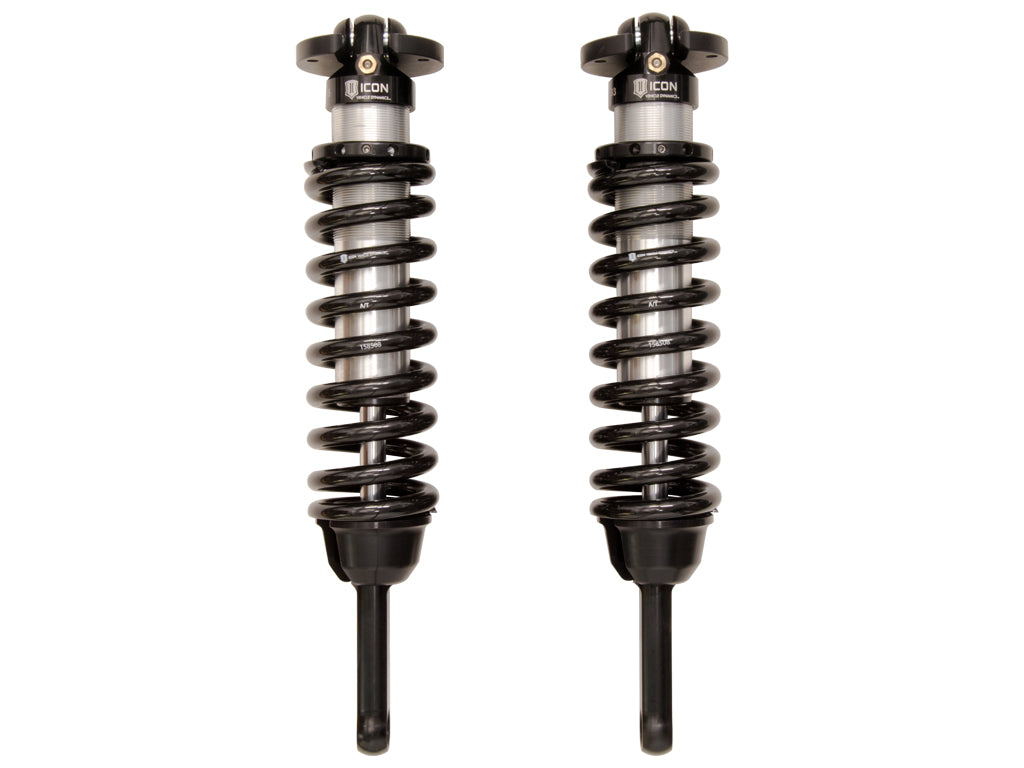

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.

Adjustable coilovers yield 0-3.5" of front lift height
Coil springs rated at 700 lb-in
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Extended Travel length requires installation of aftermarket front upper control arms
Superior low speed control reduces body roll and increases on-road stability
High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
Corrosion resistant CAD plated shock body with 7/8" shaft
FK Rod End bearings provide extended longevity and minimal deflection
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Bolt-in design makes for an easy install into OEM shock location

Attributes

GTIN: 00840103404035
Brand Name: ICON Vehicle Dynamics
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Damping: NO
2917: yes
52: 2.5
50: No
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
51: yes
Grade Type: Performance
48: Eyelet
Material: Aluminum
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: NO
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
409: Top of Upper Mount Plate
408: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate: 700
49: Mounting Plate
