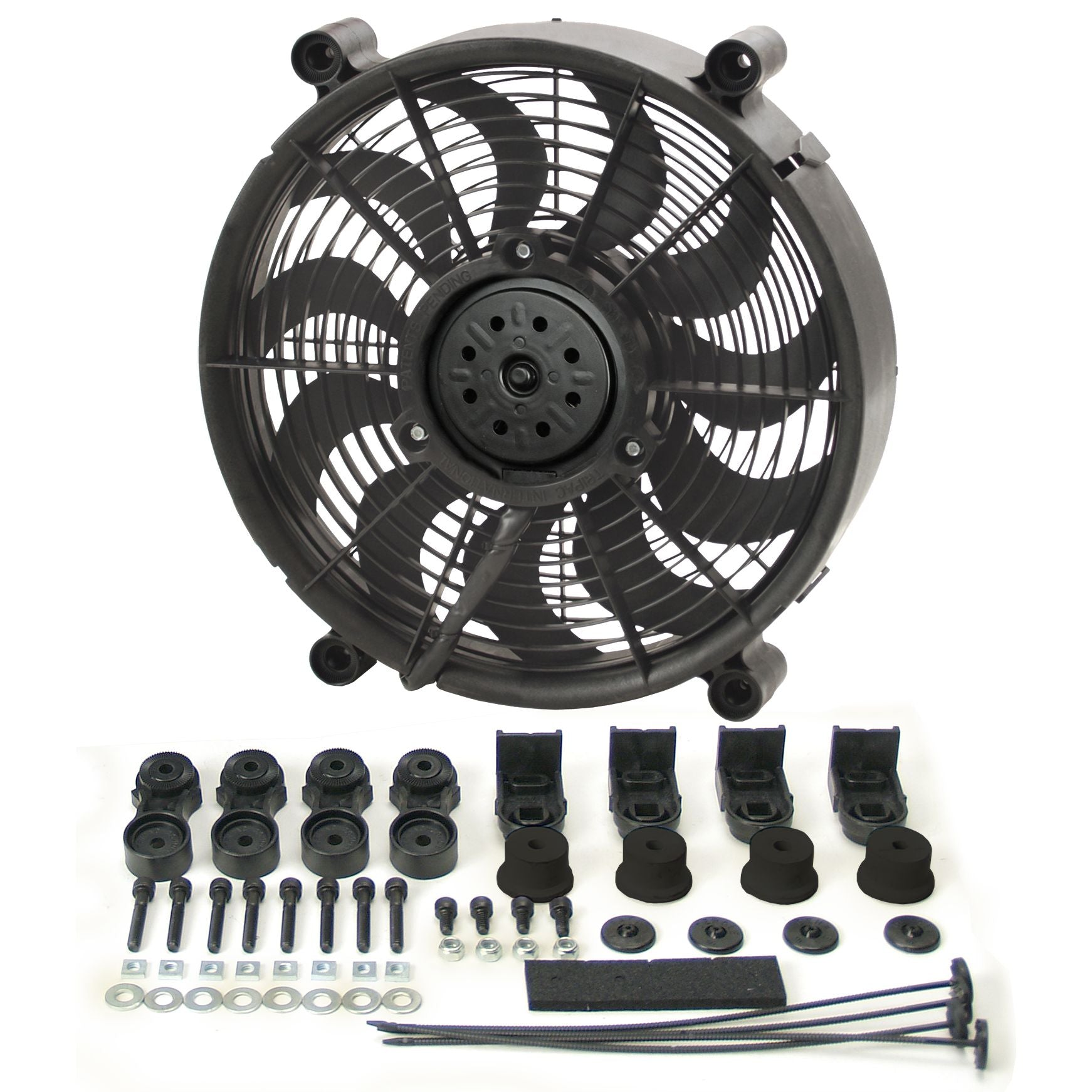

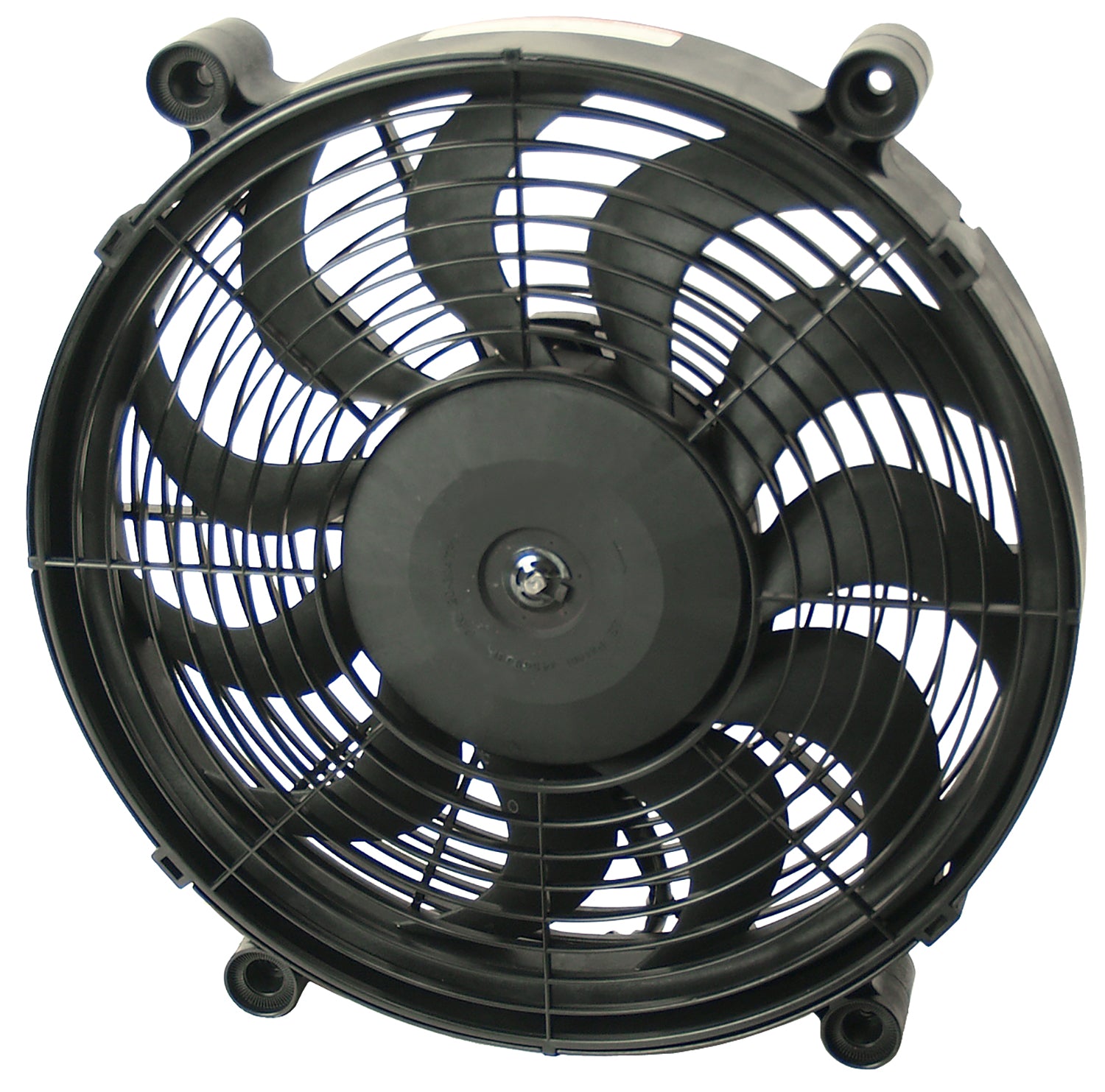

Derale 12" High Output Single RAD Pusher/Puller Fan with Premium Mount Kit 16212

Our most compact version of the High Output Single RAD fan series, this 12" fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, each includes a patented ratchet mounting system for a professional installation. Can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 1450 CFM while drawing up to 21 amps.

Attributes:

• GTIN: 00083277162121
• Brand Name: Derale
• Amp draw high/low: 21/15
• CFM high/low: 1450/1000
• Color: Black
• Depth: 2-5/8
• Height: 12-3/4
• Mounting: 8-1/4 x 11-5/8
• Width: 12-3/4

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 16.375 x 13.125 x 3 inches
• Weight: 7.25 lb
