14 bolt Pinion Guard with Bridge
14 bolt Pinion Guard with Bridge
Artec Industries
Part #
PG1403
UPC #
Regular price
$186.99 USD
Regular price
Sale price
$186.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Product Description
Product Description

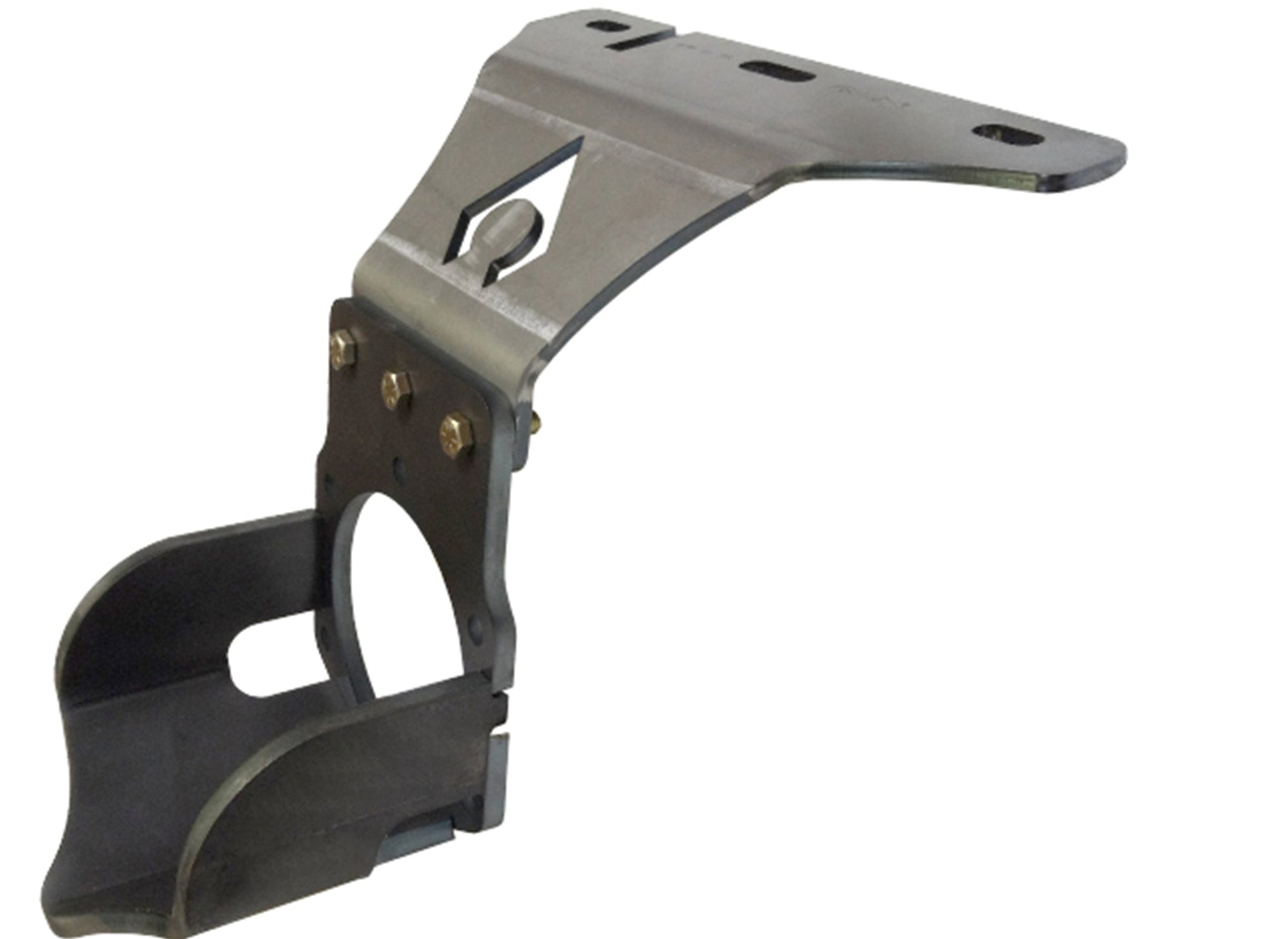

Artec Industries 14 bolt Pinion Guard is designed to keep your vulnerable pinion out of the rocks and in one piece. CNC cut from 3/8" thick mild steel, this guard is meant to take the worst you and the rocks can dish out.

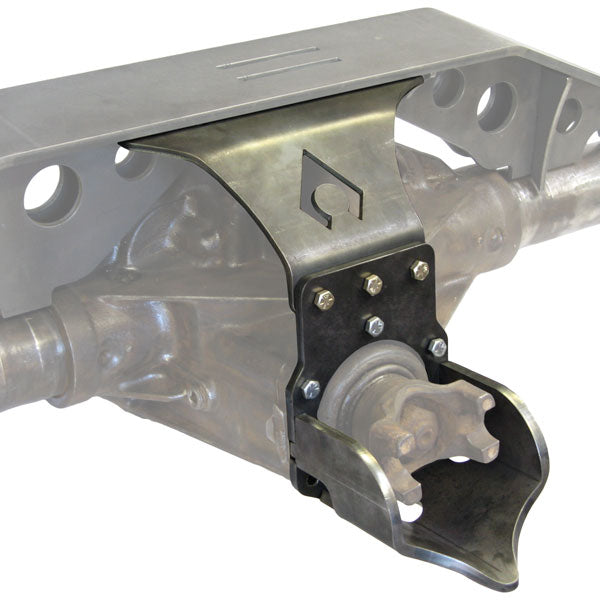

Included bridge to connect to your Artec 14 bolt truss. Bridge is CNC cut and formed from 1/4" thick mild steel and adds rigidity to your existing truss. With minor modifications, the bridge allows the Artec 14 bolt truss to still be "clockable" while installing. Bridge bolts on to pinion guard and welds to truss.

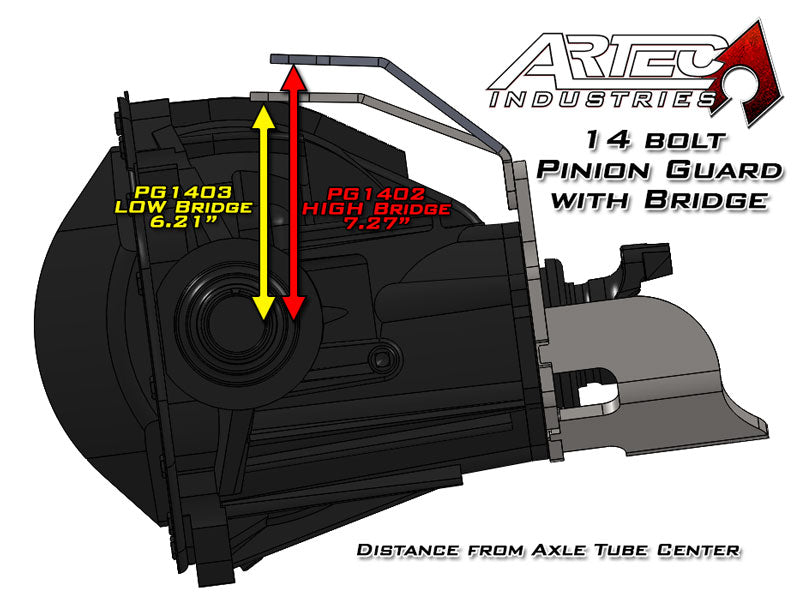

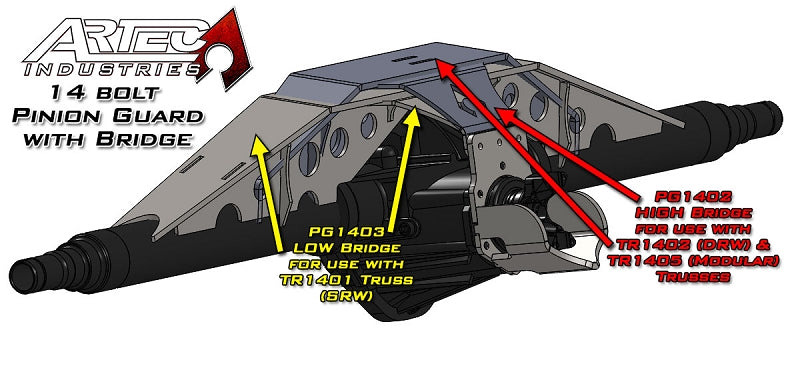

There are 2 options for this item, the "High" - PG1402 and the "Low" - PG1403. The High version is compatible with the TR1402 and TR1405 Rear Trusses and the Low version is compatible with the TR1401 and TR1406 Rear Trusses. **See inset image above for detail of different options**
Includes 3/8" grade 8 hardware. Requires welding from a competant welder.
See also Pinion Guard to be used with 14 Bolt Rear Truss
NOTE: TRIMMING ON THE BRIDGE MAY BE NECESSARY DEPENDING ON THE PINION ANGLE YOU CHOOSE FOR THE TRUSS AND WHAT TRUSS YOU USE.
