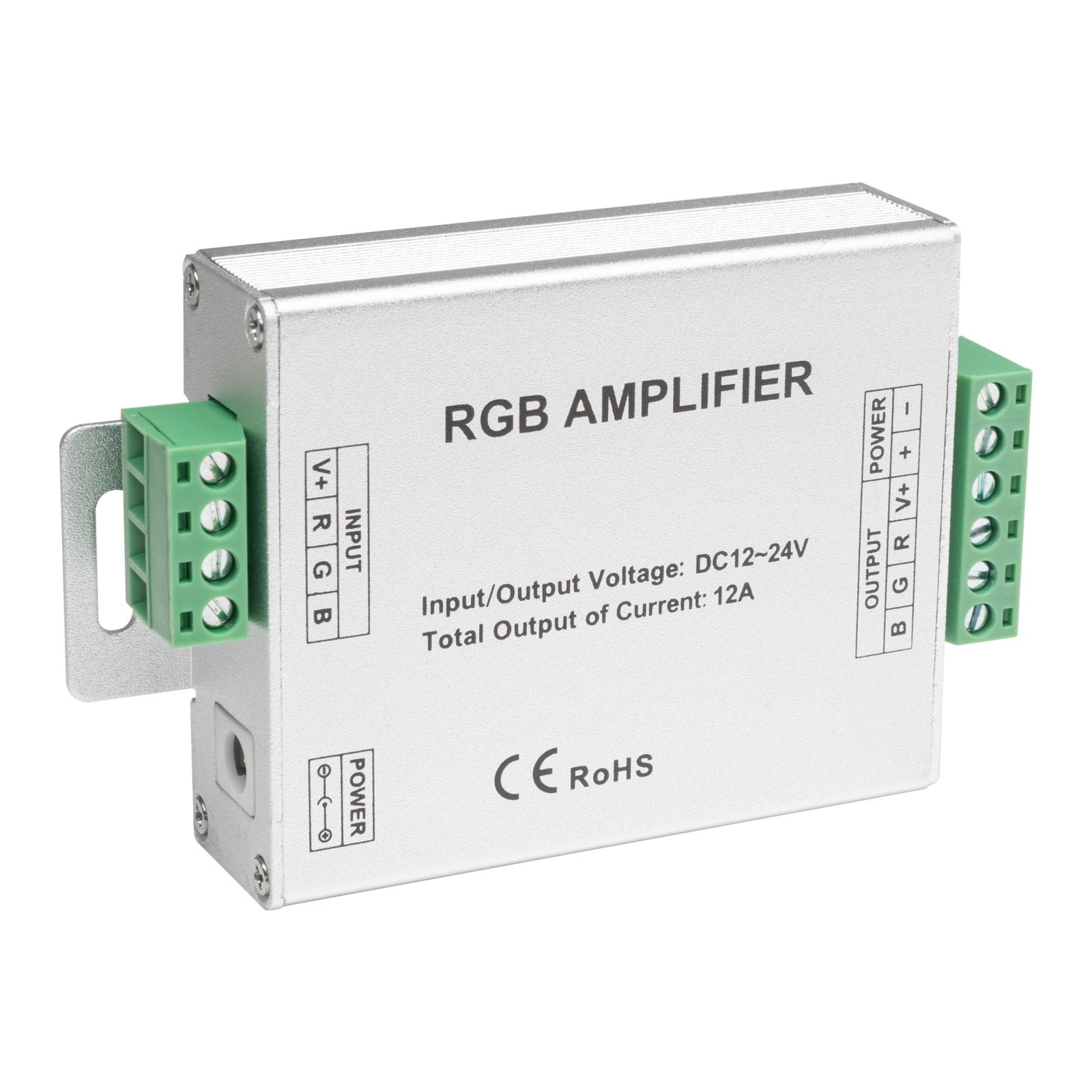

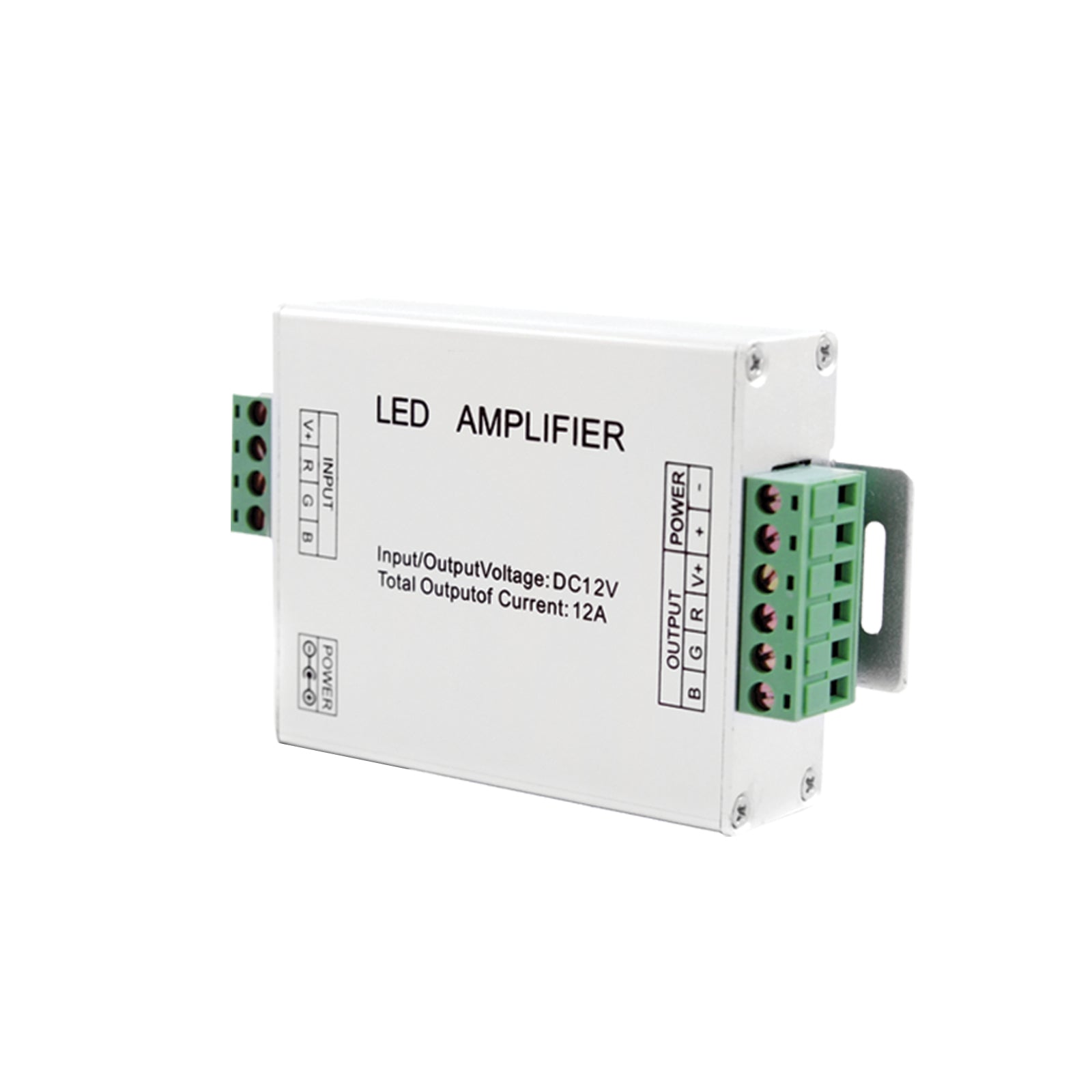

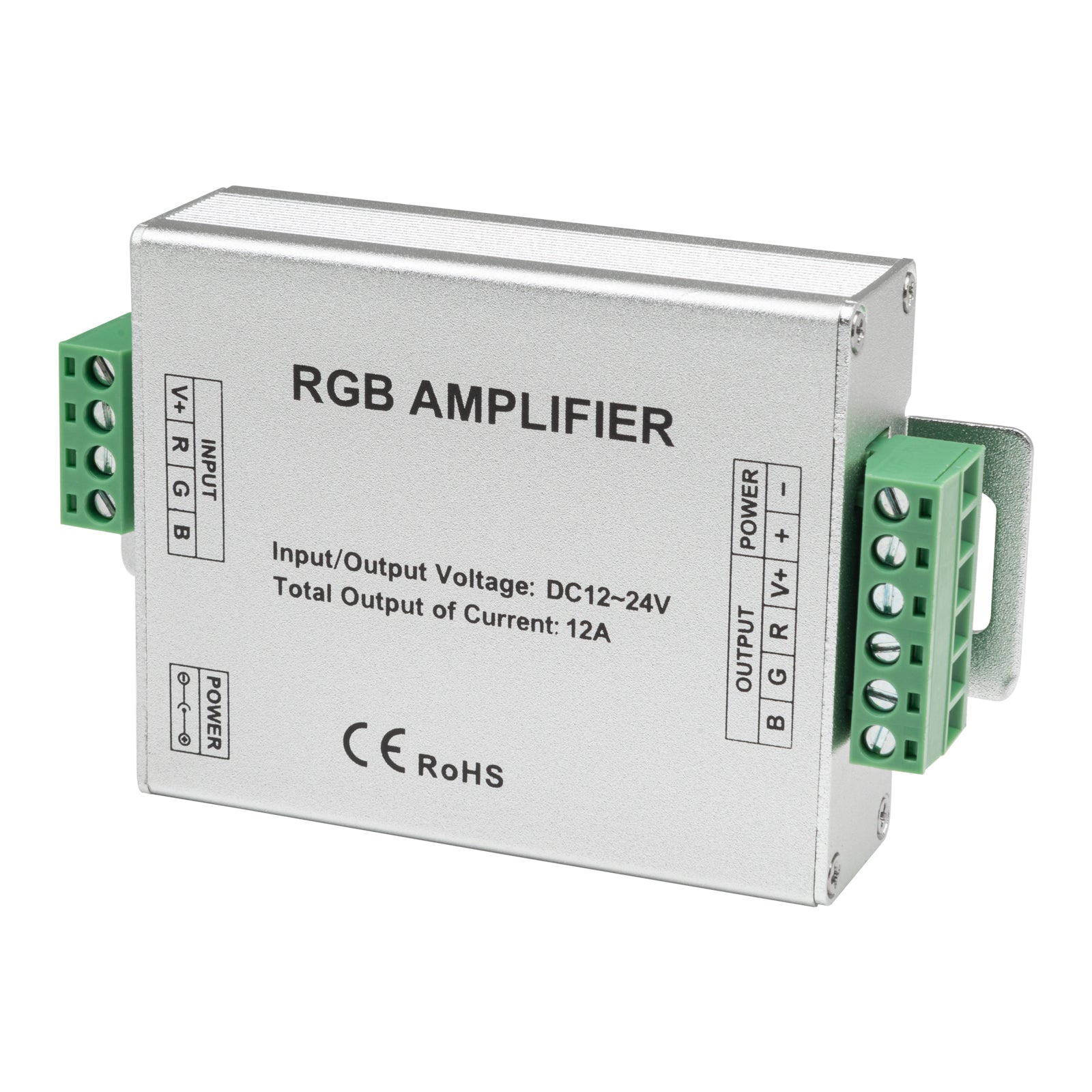

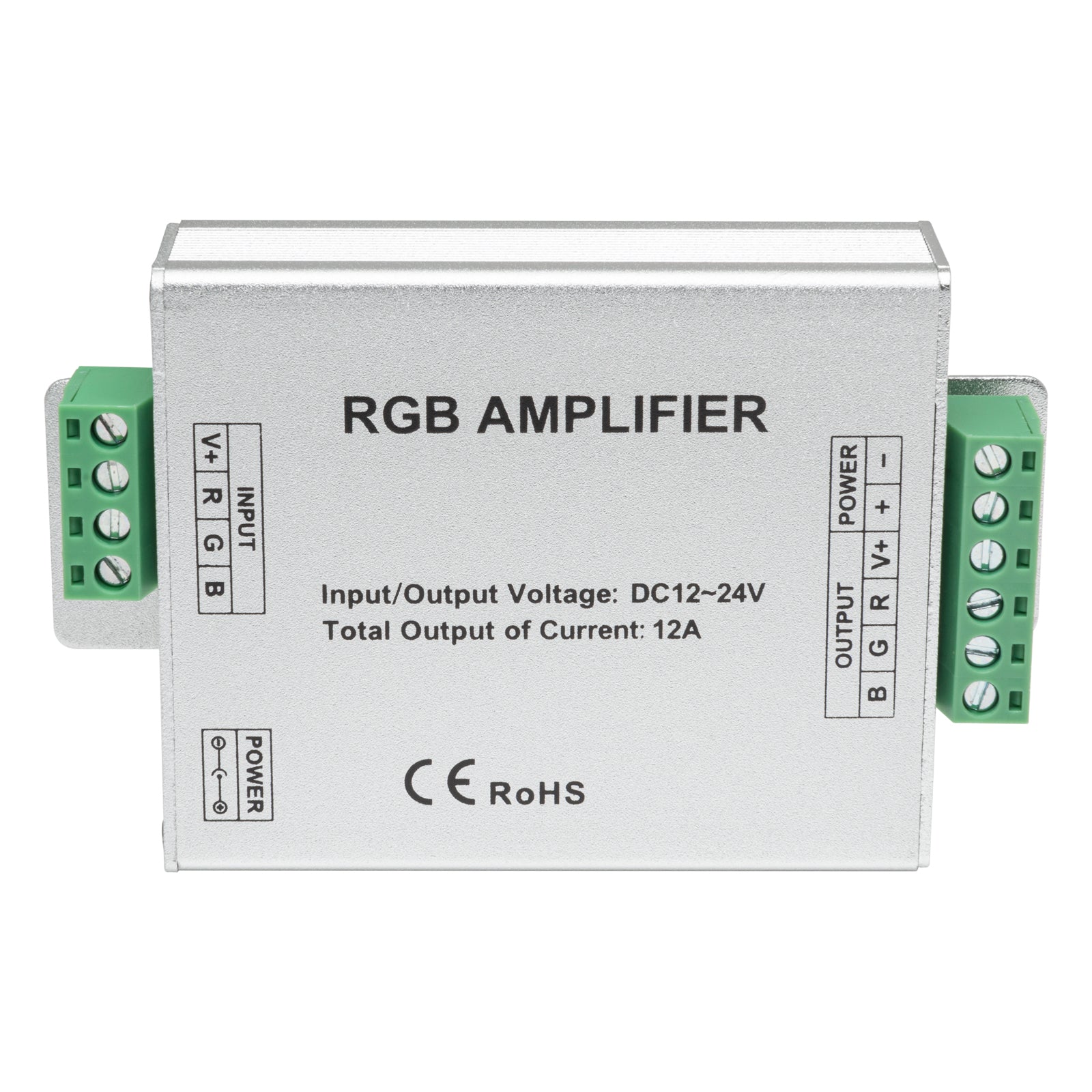

Oracle Lighting 1605-001 - ORACLE 12A RGB LED Amplifier

The ORACLE 12A RGB LED Amplifier increases the load capability and extends the signal of any of our RGB controllers. An RGB LED Amplifier is needed when exceeding the power capabilities and functions of an RGB controller of approximately more than 98 feet of RGB Flex Strip. Product Specs: Supply voltage: 12-24V. Length: 3.8 in. Width: 1.7 in. Height: .70 in. Max load current: 4 Amps/channel (12 Amps total). Net weight: 3.5 oz. Output: 3 channel Working Temperature: -40-1408F. Static power consumption: < 1 Watt. Output Power: 144 Watts. RoHS compliant, FCC, CE Certified, cULus Classified. 2 Year Warranty. Instructions included.

• Increases the load capability and extends the signal of any of our RGB controllers

Attributes:

• GTIN: 00160500120124
• Brand Name: Oracle Lighting
• Add-On: N/A
• Dimensions: Length: 3.8 in., Width: 1.7 in., Height: .70 in.
• Outputs: 4 Amps/channel (12 Amps total)
• Warranty: 2 Year
• Wattage: 144 Watts

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4 x 8 x 1.75 inches
• Weight: 2 lb
