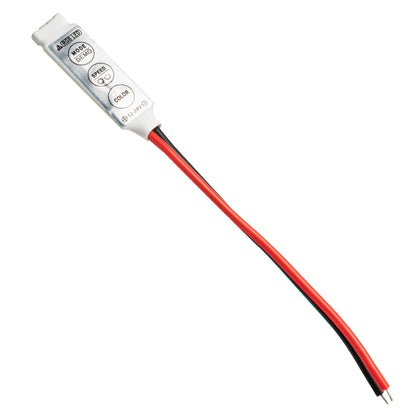

Oracle Lighting 1614-504 - ORACLE In-Line LED RGB Controller

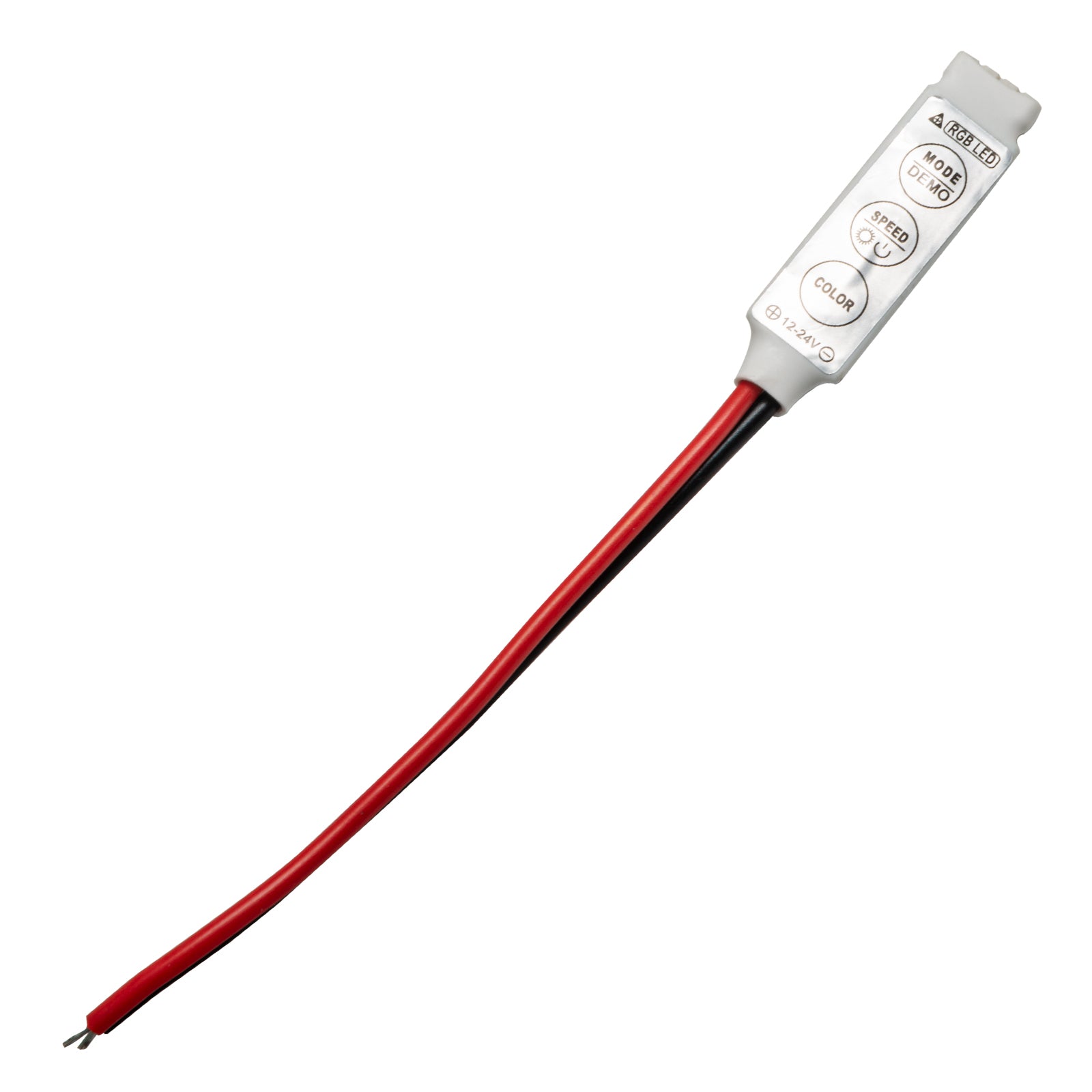

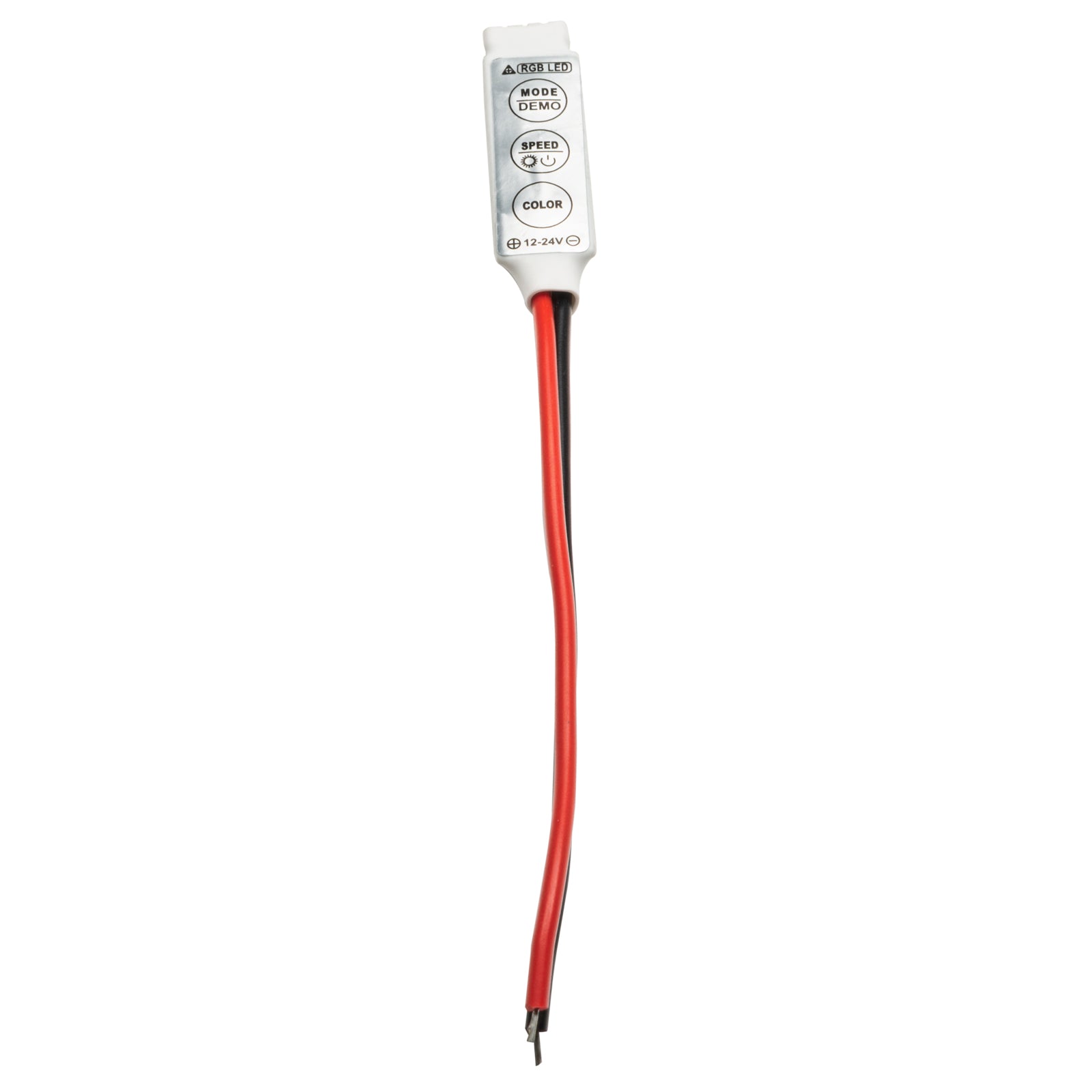

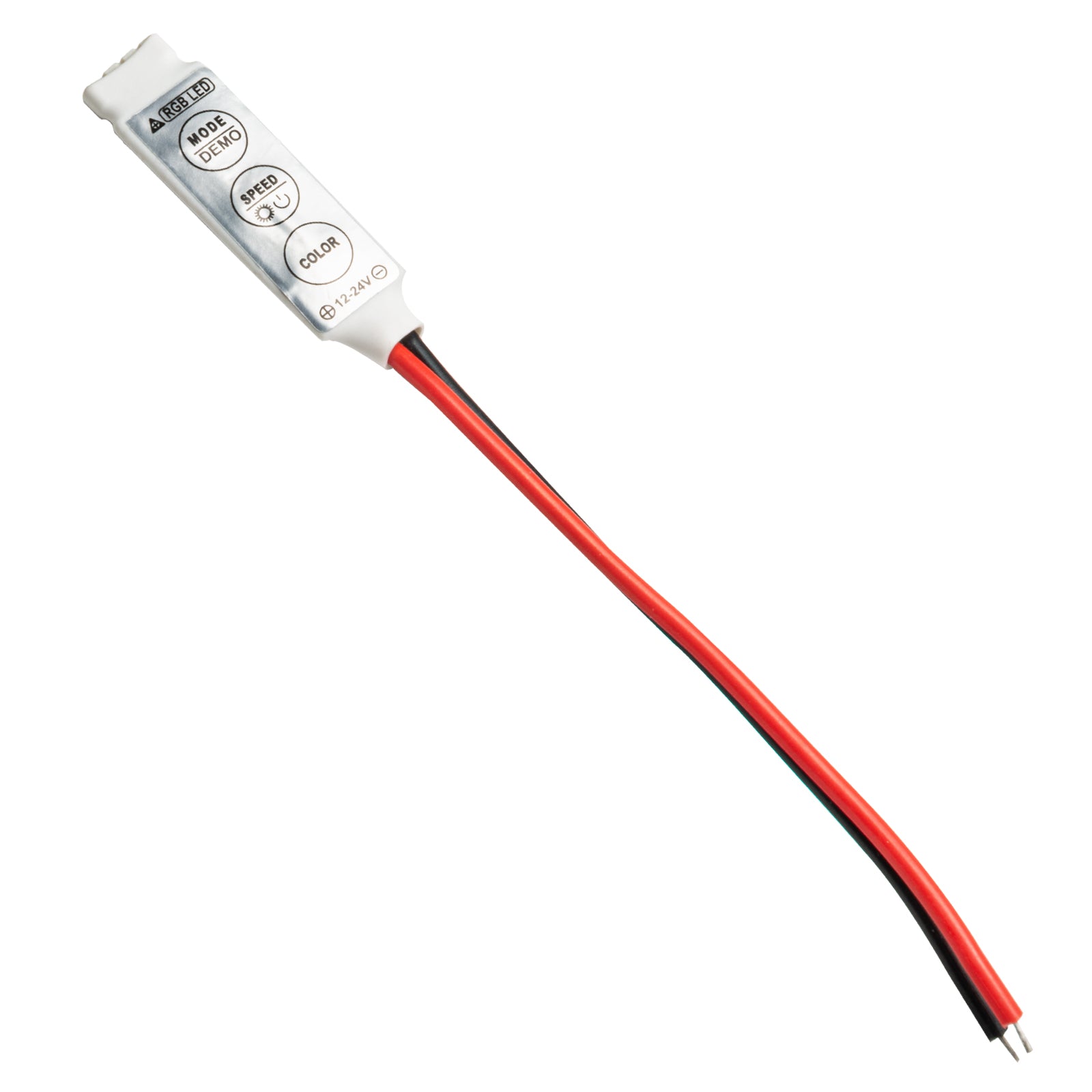

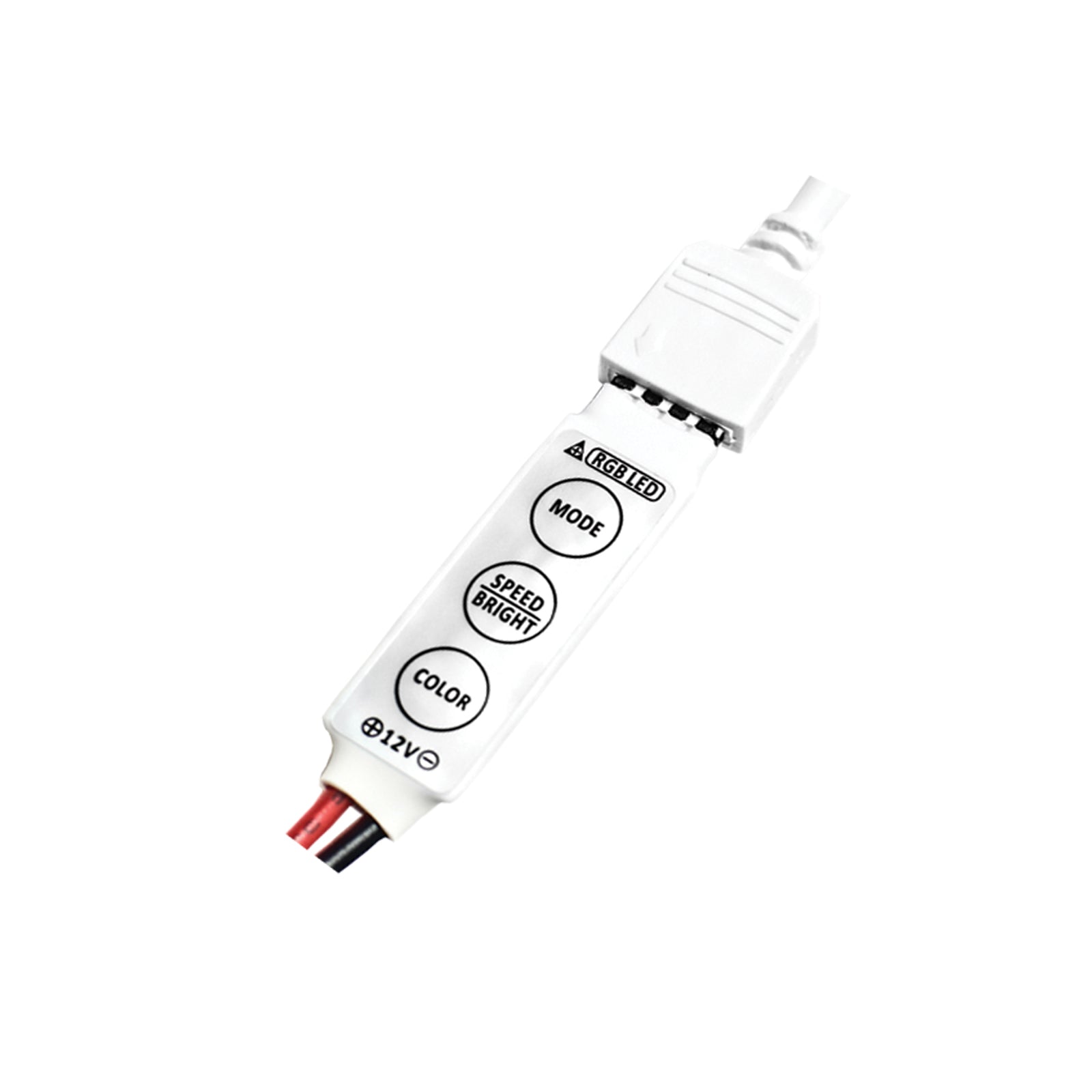

Easy to install LED controller from ORACLE Lighting. The In-Line LED Controller wires directly between a power source and an LED product such as our Flex Strips. For simple control over RGB flex strips. Connect one end to power source. With supplied RGB plug, connect the other end to color coded wires on RGB flex strip. Modes include: - Breathing Mode - Heartbeat Mode - Primary and Secondary Strobe Modes - Control Dimming Mode - Color Control Also included:- Speed Variable Button - Visible markings for the + and - 12V and LED sources. Specifications:- Voltage: 8-16V - Length: 1.6 in - Width: 0.4 in - Height: 0.1 in - Max load current: 12 Amps - Output: 3 channels - Working temperature: -4-140F - Static power consumption: < 1 Watt - Output Power: 144 Watts - Color Control: 20 Static Colors - Dynamic Modes: 5 - Levels of Control: 256- Levels of Speed: 6- Levels of Brightness of Static Color:8- RoHS compliant, FCC, CE Certified, cULus Classified - 2 Year Warranty

• Modes include: Breathing Mode, Heartbeat Mode, Primary and Secondary Strobe Modes, Control Dimming Mode

Attributes:

• GTIN: 00161450420135
• Brand Name: Oracle Lighting
• Add-On: N/A
• Dimensions: Length: 1.6 in., Width: 0.4 in., Height: 0.1 in.
• Voltage: 8 16V
• Warranty: 2 Year
• Wattage: 144 Watts

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 1.6 x 1 x 1 inches
• Weight: 1 lb
