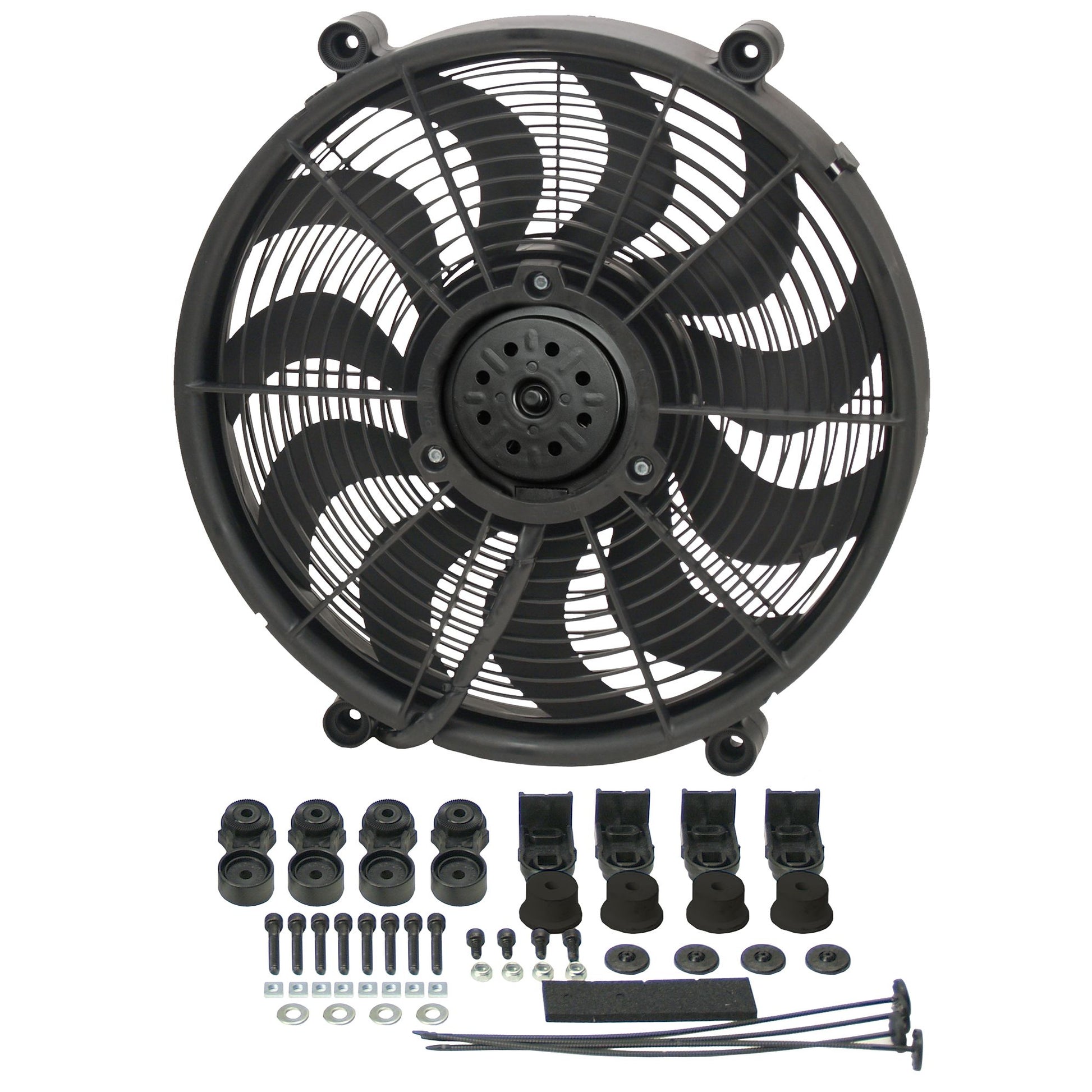

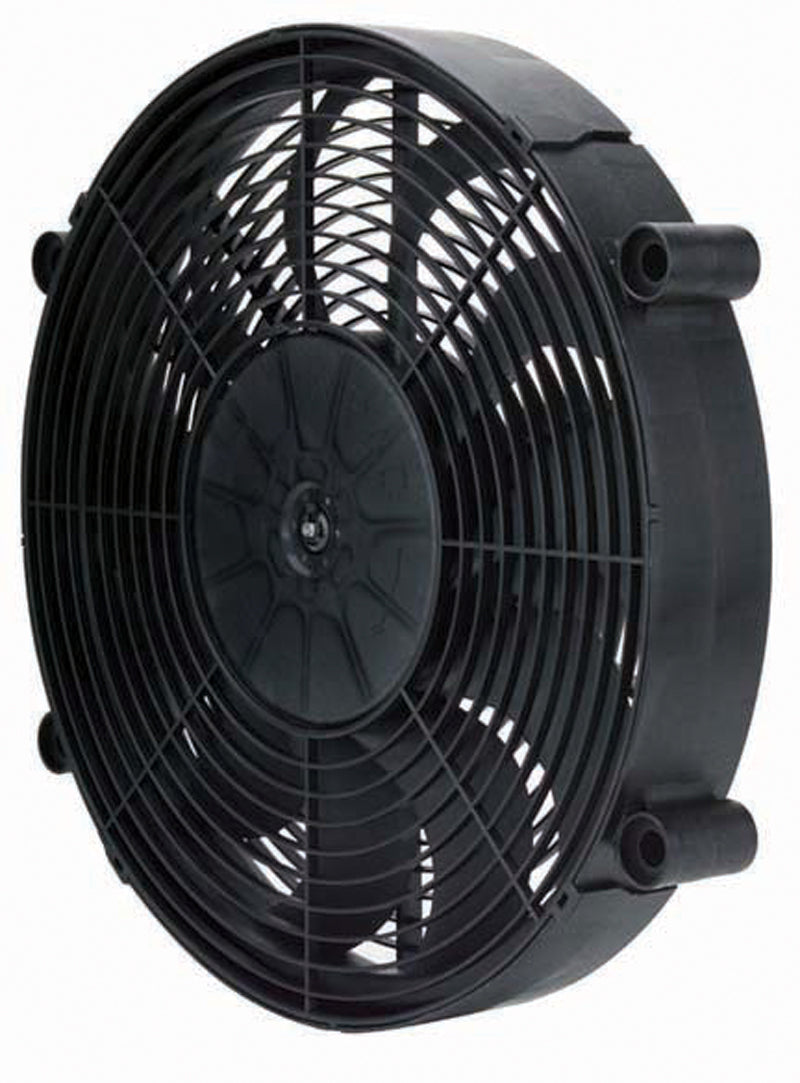

Derale 17" High Output Single RAD Pusher/Puller Fan with Premium Mount Kit 16217

Our most popular, this 17" High Output Single RAD fan is a self-shrouded, symmetrical design with four molded mounting points. Motivated by a 2-speed 265 watt Bosch motor driving 11 patented skewed blades, each includes a patented ratchet mounting system for a professional installation. Can be used as a pusher or puller fan by simply flipping brackets without changing direction of the unit. Moves up to 2400 CFM while drawing up to 23.5 amps.

Attributes:

• GTIN: 00083277162176
• Brand Name: Derale
• Amp draw high/low: 23.5/17.4
• CFM high/low: 2400/1800
• Color: Black
• Depth: 2-5/8
• Height: 16-7/8
• Mounting: 8-7/8 x 15-5/8
• Width: 16-7/8

Extended Information:

• Country of Origin: United States
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 19 x 17.25 x 4.5 inches
• Weight: 9.5 lb
