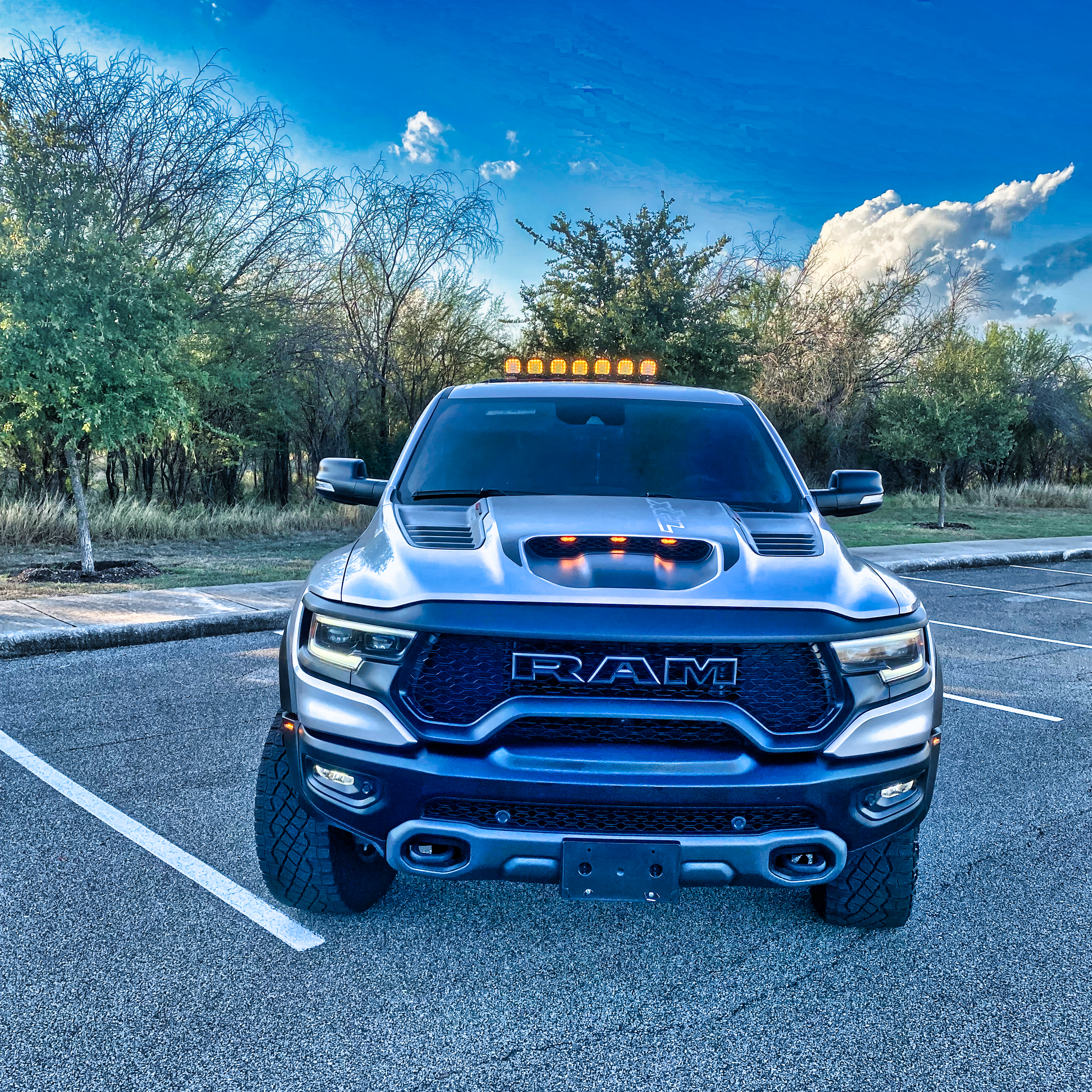

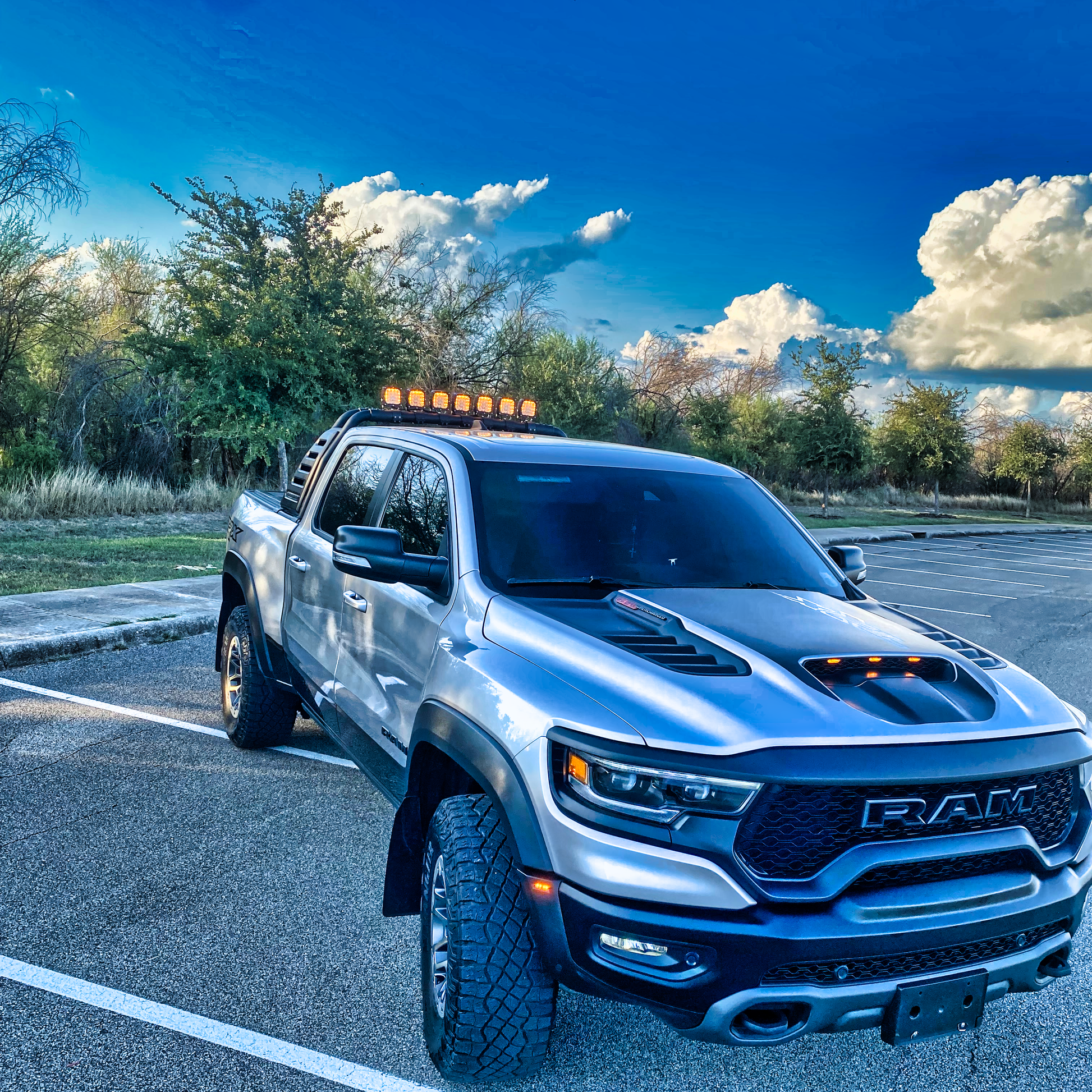

2019-2024 RAM 1500 TRX RamBar Lights

Fits: 2019–2024 RAM 1500 TRX

Fits the RamBar as well as other bed cages. This kit contains 7 lights.

How it installs:

• ! These are lights only — no RAM bar and no RAM brackets included
• How you mount them is up to you — you can use light mounting brackets made for the RamBar (these brackets), or drill through the RamBar and install directly
• Choose between Spot or Flood beam pattern

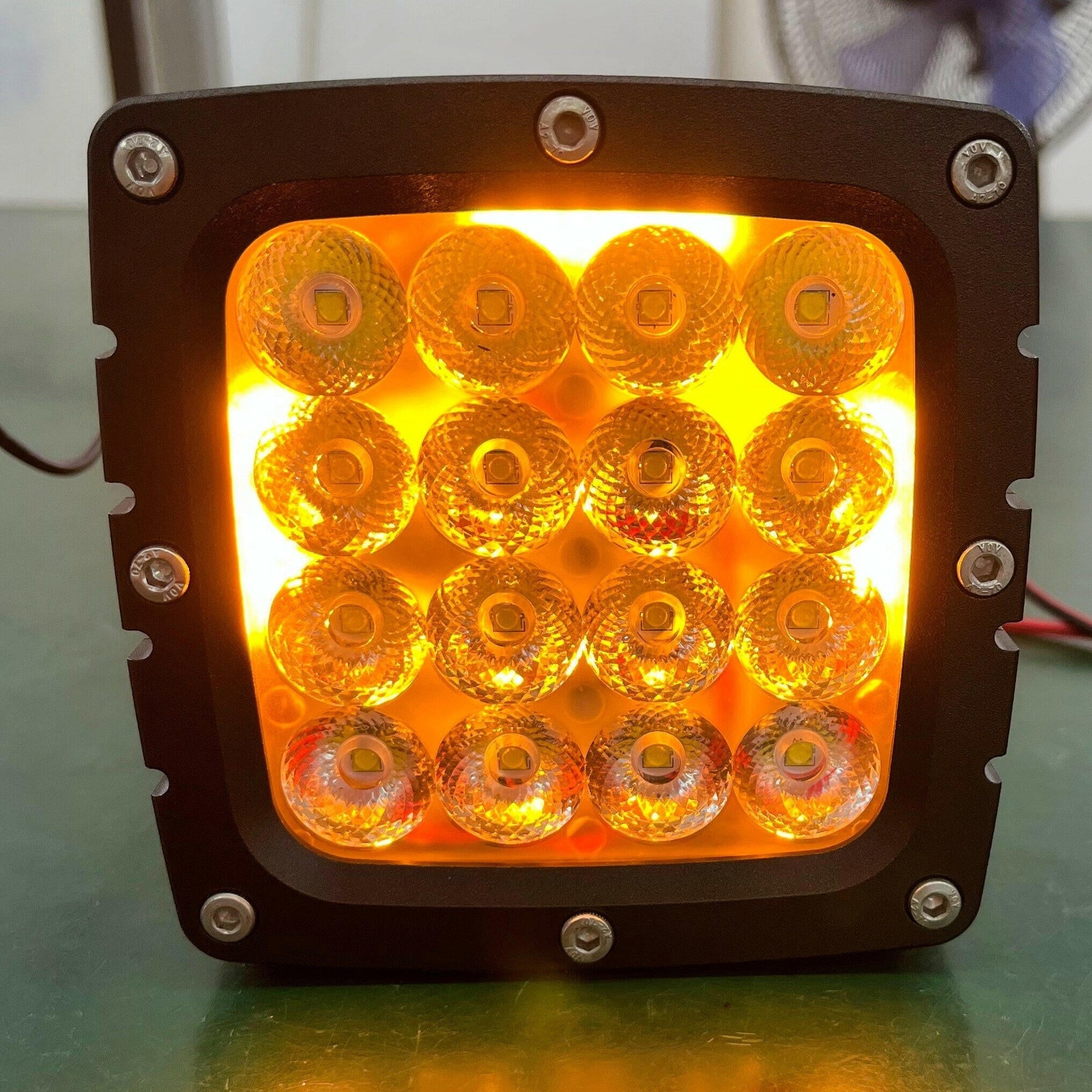

• Dual Function — each light has two power wires (one for White light, one for Amber DRL). Whichever one gets 12V with a switch is the color that performs
• 7 lights — 80W each (560W for the full kit)
• Includes mounting hardware

BUILD QUALITY:

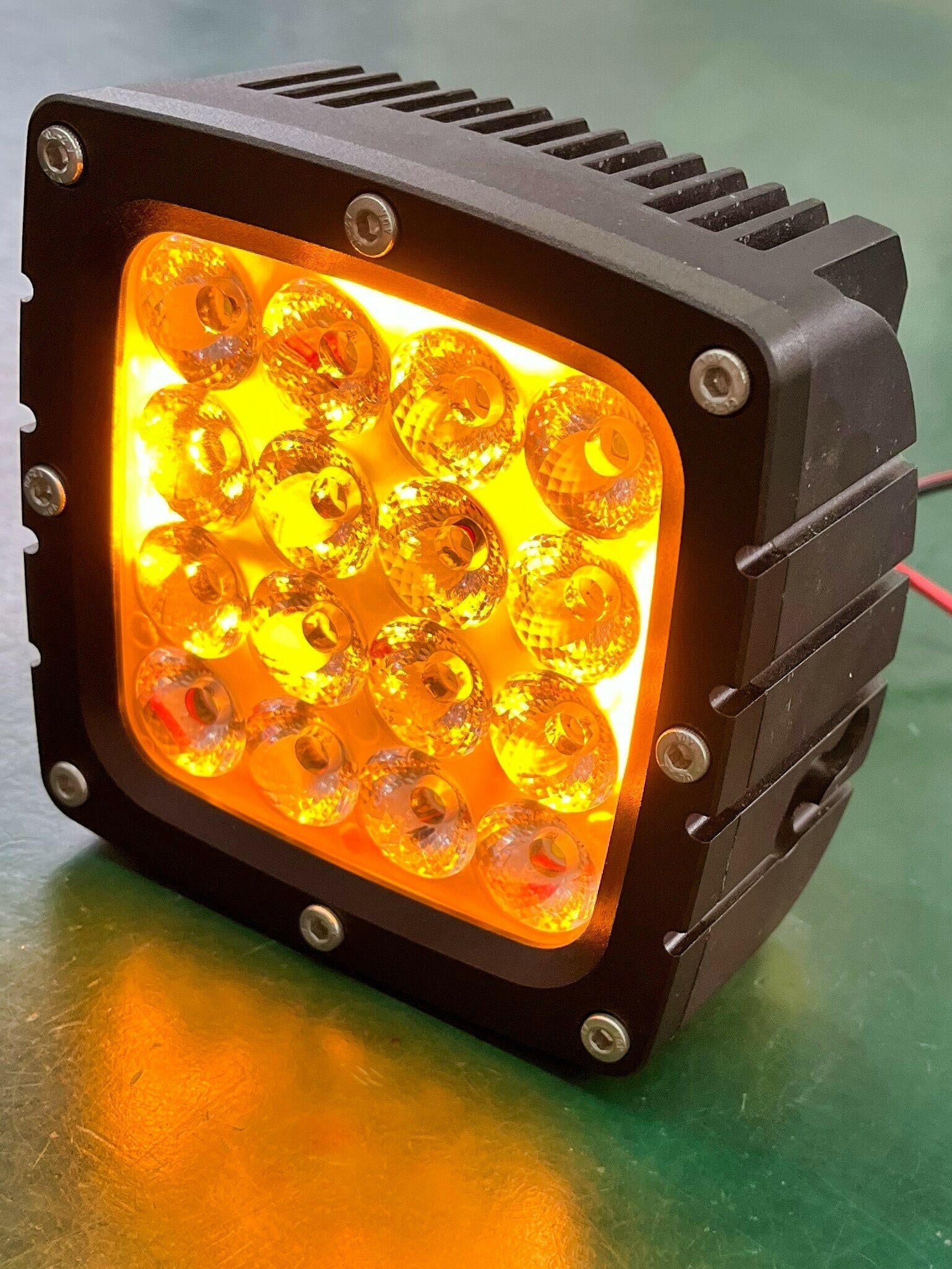

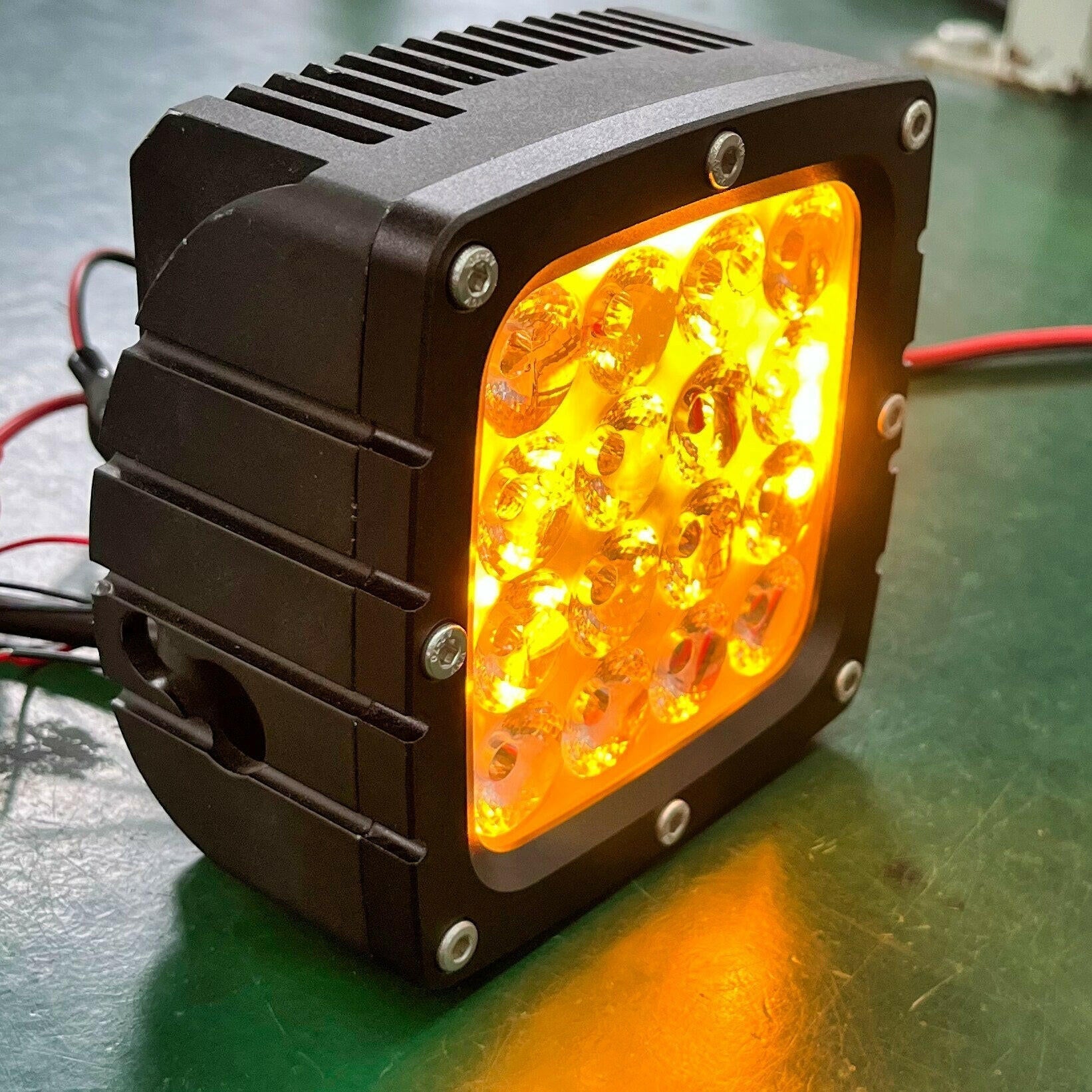

• CNC'd 6063 aluminum housing with an anodized surface and breather
• 5W CREE XT-E LEDs — up to 6,800 lumens each
• Optical PC lens, 10° spot / 45° flood, 6000K color temperature
• IP68/69K waterproof rating
• Rated for a 50,000+ hour lifespan
