ICON Vehicle Dynamics 21-UP BRONCO HOSS 2.0 PKG 2.5 FRONT EXP COILOVER 48602

Name: ICON Vehicle Dynamics 21-UP BRONCO HOSS 2.0 PKG 2.5 FRONT EXP COILOVER 48602
Brand: ICON VEHICLE DYNAMICS
SKU: ICON-48602
Price: 535.55 USD
Availability: InStock

ICON VEHICLE DYNAMICS

Part #
ICON-48602
UPC #
00840103414300

$535.55 USD

~~$562.33 USD~~ $535.55 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

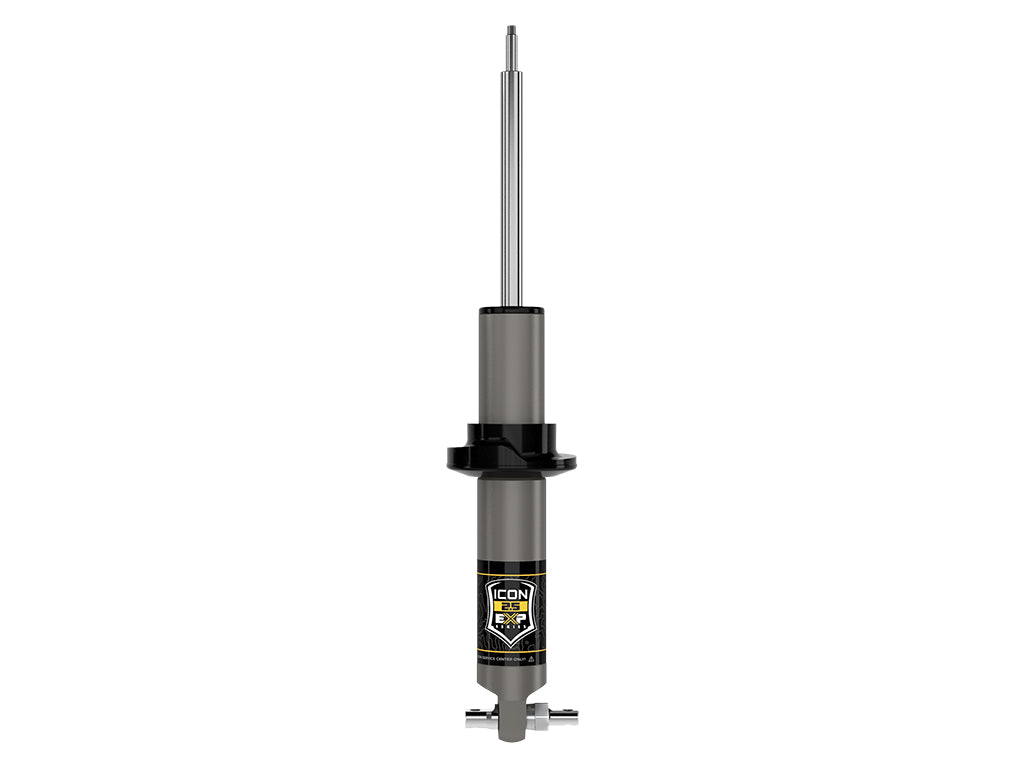

The 2021-Up Ford Bronco EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.

Vehicle specific design for 2021-UP Ford Bronco with HOSS. 2.0 Suspension Package
Vehicle specific tuned for superior shock damping and control
2.5 Aluminum Series Shock with Internal Reservoir
Adjustable ride heights from 0-2” of front lift over stock with the use of snap ring
Utilizes factory coil and coil hardware
Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearing for extended longevity and minimal deflection
High strength alloy CNC machined lower bar pin
100% Bolt-on - no cutting or welding necessary for installation
Fully rebuildable and re-tunable

Attributes

GTIN: 00840103414300
Brand Name: ICON Vehicle Dynamics
Add-On Part: 42000 - 21-UP BRONCO HIGH CLEARANCE CRASH BAR KIT
Adjustable Damping: NO
2917: Yes
52: 2.5
50: No
Coil Over Springs Included: No
Damping Type: Oil
Dust Shield: No
51: Yes
Grade Type: Performance
48: BAR PIN
Material: Aluminum
Maximum Lift: 2
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tire packages may require fender trimming and modifications)
Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
Remote Reservoir: NO
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter: 0.875
409: Top of Upper Mount Plate
408: Flat on Bar Pin
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
49: Mounting Plate
