ICON Vehicle Dynamics 21-UP BRONCO HOSS 2.0 PKG 2.5 FRONT EXP COILOVER 48612

Name: ICON Vehicle Dynamics 21-UP BRONCO HOSS 2.0 PKG 2.5 FRONT EXP COILOVER 48612
Brand: ICON VEHICLE DYNAMICS
SKU: ICON-48612
Price: 535.55 USD
Availability: InStock

ICON VEHICLE DYNAMICS

Part #
ICON-48612
UPC #
00840103414324

$535.55 USD

~~$562.33 USD~~ $535.55 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

HOSS 2.0 is Ford's upgraded suspension system for Broncos of the Base, Big Bend, Outer Banks and Black Diamond trim levels WITH the optional Sasquatch package, and it is also standard on Badlands, Wildtrak, First Edition and Everglades. HOSS 2.0 is most easily identified by the YELLOW shock bodies of the OE shocks.

Vehicle specific design for 2021-UP Ford Bronco with HOSS. 2.0 Suspension Package
Vehicle specific tuned for superior shock damping and control

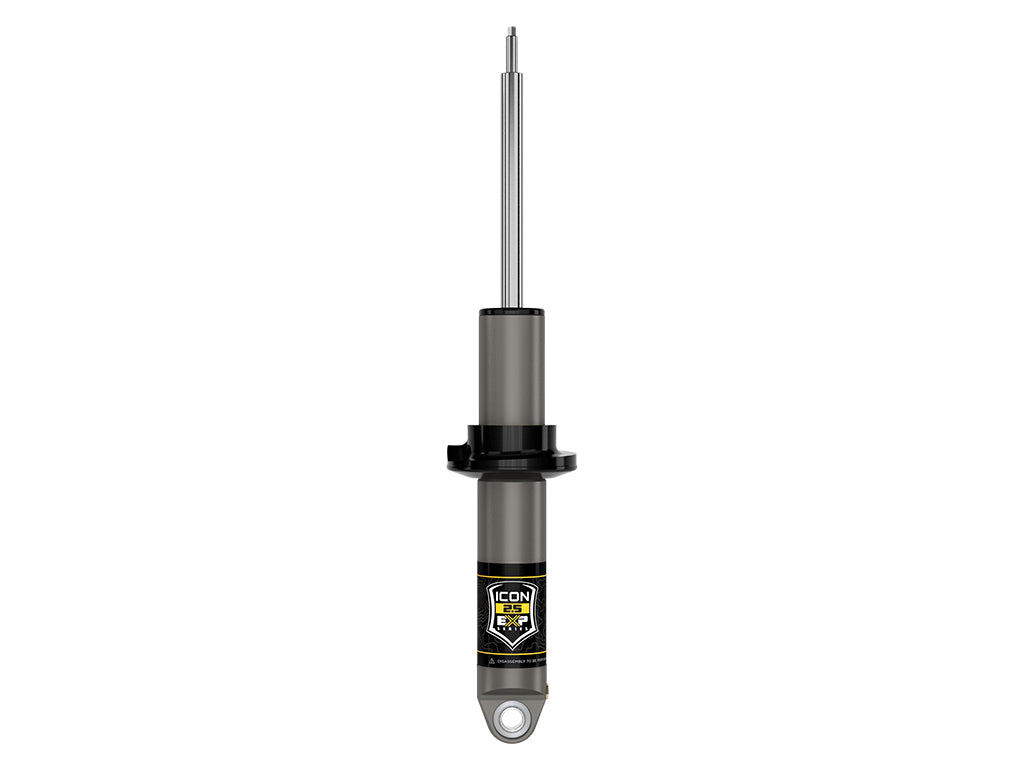

2.5 Aluminum Series Shock with Internal Reservoir
Adjustable ride heights from 0-1.75” of rear lift over stock with the use of snap ring
Utilizes factory coil and coil hardware
Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearing for extended longevity and minimal deflection
100% Bolt-on - no cutting or welding necessary for installation
Fully rebuildable and re-tunable

Attributes

GTIN: 00840103414324
Brand Name: ICON Vehicle Dynamics
51: Yes
Grade Type: Performance
48: BAR PIN
Material: Aluminum
Maximum Lift: 3
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tire packages may require fender trimming and modifications)
Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 18x9" with 5.00” Backspace / 0mm Offset
Remote Reservoir: NO
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter: 0.875
409: Top of Upper Mount Plate
408: Flat on Bar Pin
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
49: Mounting Plate
Adjustable Damping: NO
2917: Yes
52: 2.5
50: No
Coil Over Springs Included: No
Damping Type: Oil
Dust Shield: No
