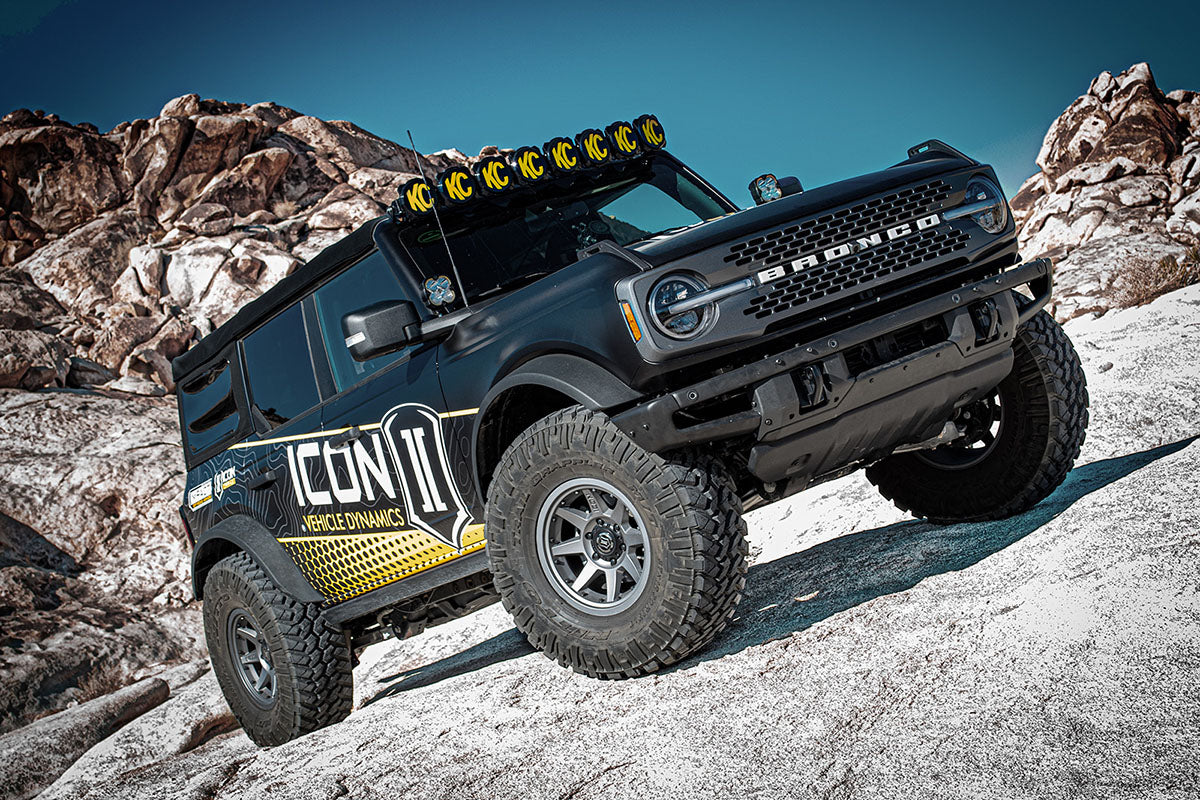

ICON Vehicle Dynamics 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 7 SUSPENSION SYSTEM BILLET K40017

Name: ICON Vehicle Dynamics 21-UP BRONCO SASQUATCH 2-3" LIFT STAGE 7 SUSPENSION SYSTEM BILLET K40017
Brand: ICON VEHICLE DYNAMICS
SKU: ICON-K40017
Price: 9039.70 USD
Availability: InStock

ICON VEHICLE DYNAMICS

Part #
ICON-K40017
UPC #
00840103416298

$9,039.70 USD

~~$9,952.67 USD~~ $9,039.70 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately).

Improved suspension performance and ride quality over stock
Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
Coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Adjustable coilovers yield up to 2-3" of front lift height and 1.25-2.25” of rear lift height over stock 4-door Broncos with the Sasquatch package
PTFE lined spherical bearings and application specific mounting hardware
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
ICON engineered coil springs featuring a unique triple rate rear coil design
High strength alloy CNC machined lower bar pins
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
100% Bolt-on system - no drilling, cutting, or welding necessary for install

Attributes

GTIN: 00840103416298
Brand Name: ICON Vehicle Dynamics
Rear Spring Rate Type: Progressive Triple Rate
Recommended Aftermarket Tires: 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)
Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75” BS / 0mm Offset
3097: Yes
3096: Black
2064: Steel
Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
2371: Yes
5782: Square
5783: Square
7325: 2
7326: 2
Front Spring Rate Type: Linear
3390: Performance
5520: 3
30: Yes
OEM Wheels & Tires Fitment: Yes
