3-4 inch Rod End Kit

Artec Industries

Part #
RE1202R
UPC #
816791028310

$47.29 USD

Sale Sold out

Shipping calculated at checkout.

Product Description

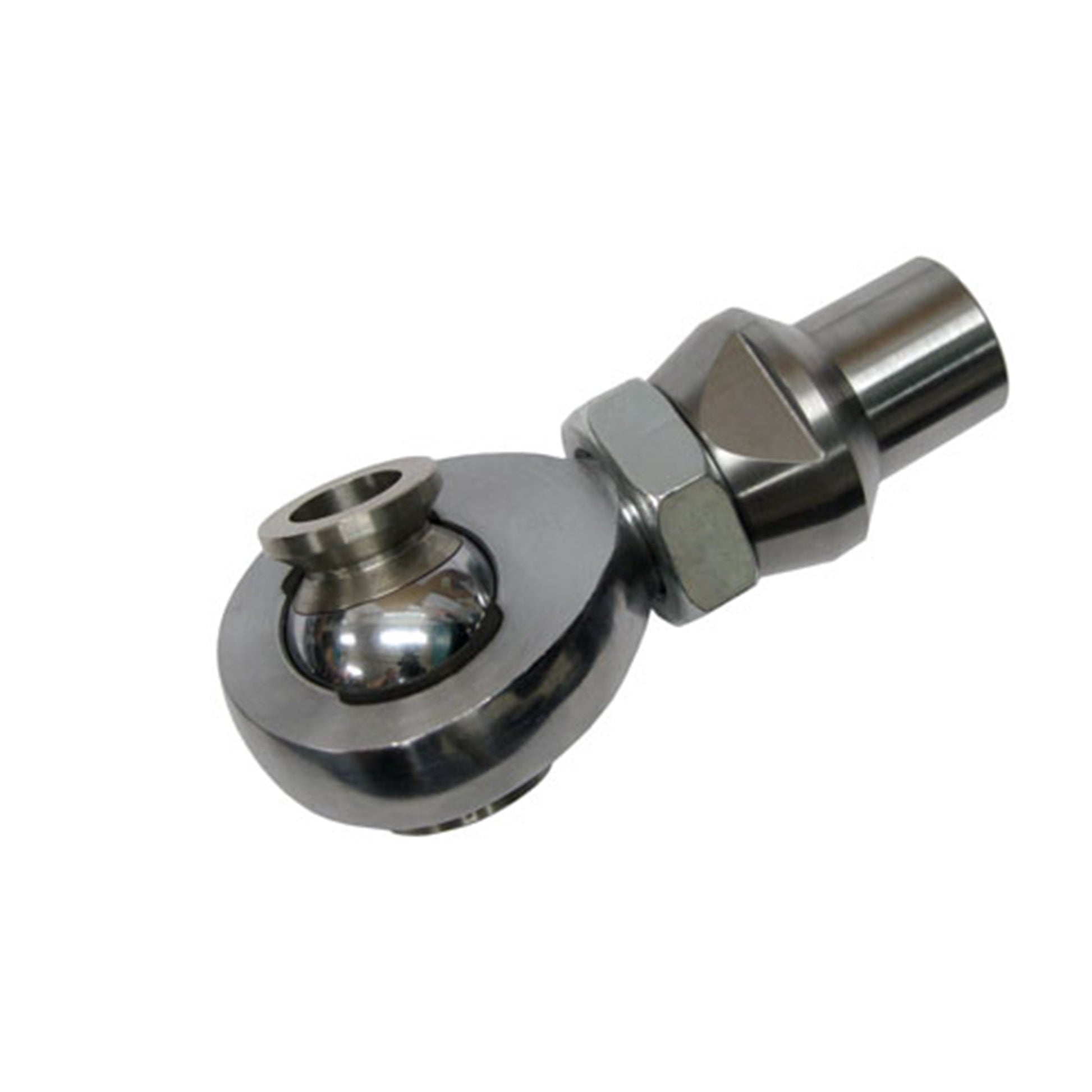

This kit includes one 3/4" -16tpi Chromoly rod end with 3/4" bore, one jam nut, one WRENCH FLAT tube adapter for 1.0 ID -1.5 OD tubing, and two stainless steel 9/16" or 5/8"- 3/4" high misalignment spacers. The mounting width with the spacer is 1.75" with a choice of 9/16" or 5/8" hole.

Great for the builder on a budget. These rod ends from Midwest Control Products Corp are a great way to add strength, reliability, and flexibility to any situation that requires use of a rod end such as in suspension or steering applications. The -12 series utilizes a high strength Chromoly body with a polished chrome finish sure to impress. The ball is made from heat treated bearing steel for strength and hard chrome polished for a smooth surface. The race is injection molded nylon which keeps the joint quiet and tight for years and years of usability.

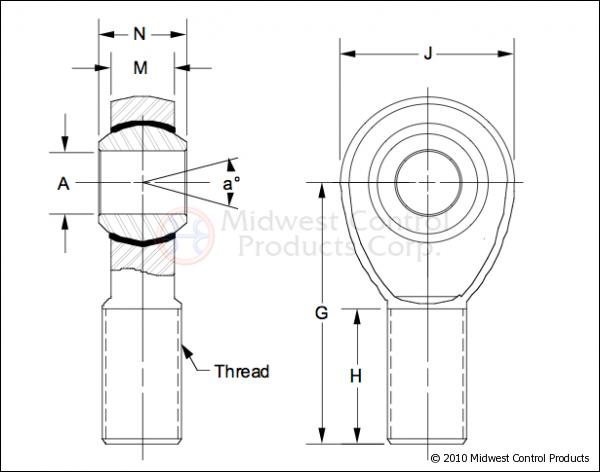

3/4" -16 tpi thread with 3/4" bore. Ultimate Radial Static Load (lbs) 27019.

Part Number

System

Thread
