3D Scan: 2016-2023 Toyota Tacoma Front Suspension (TRD Off-Road)

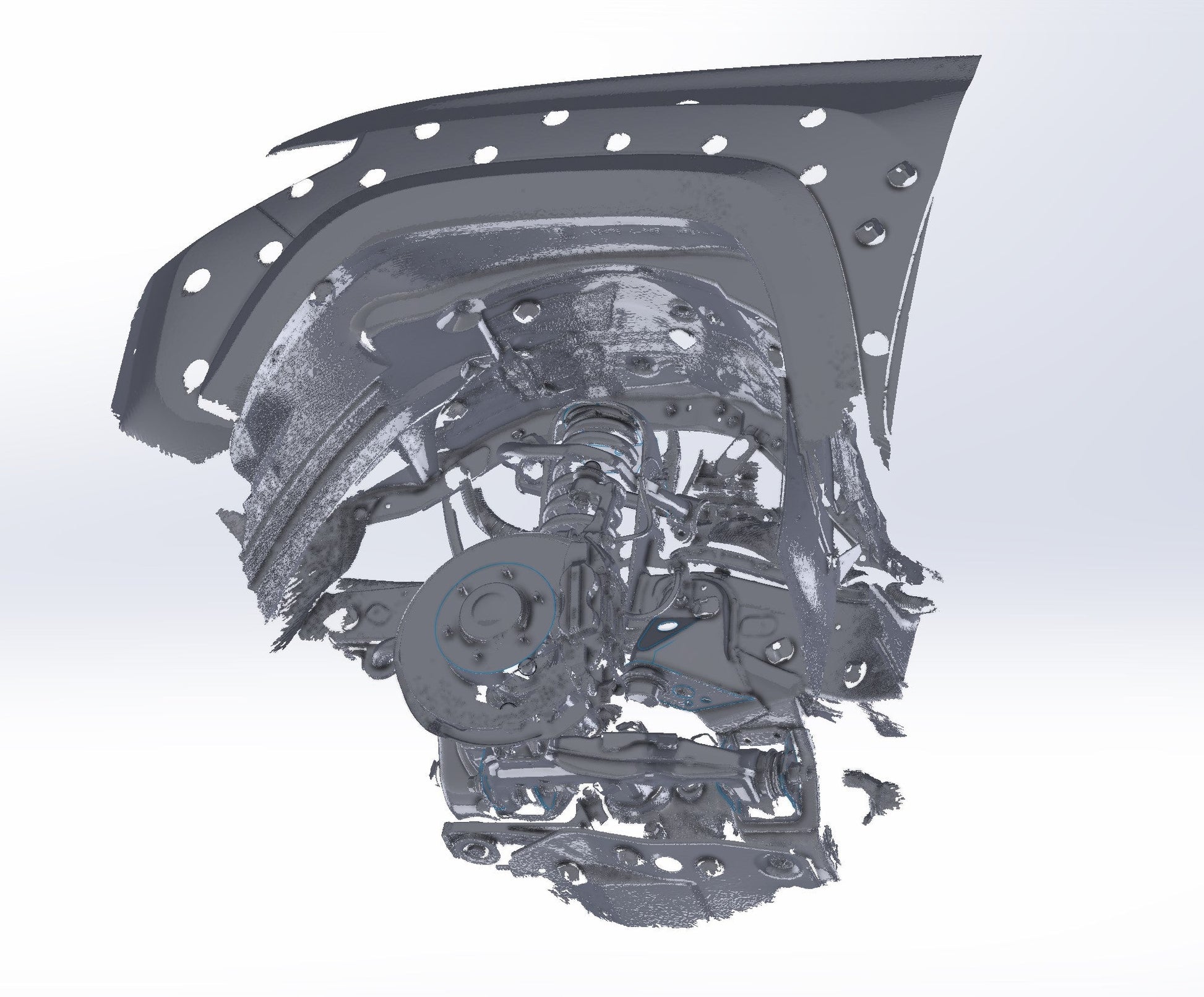

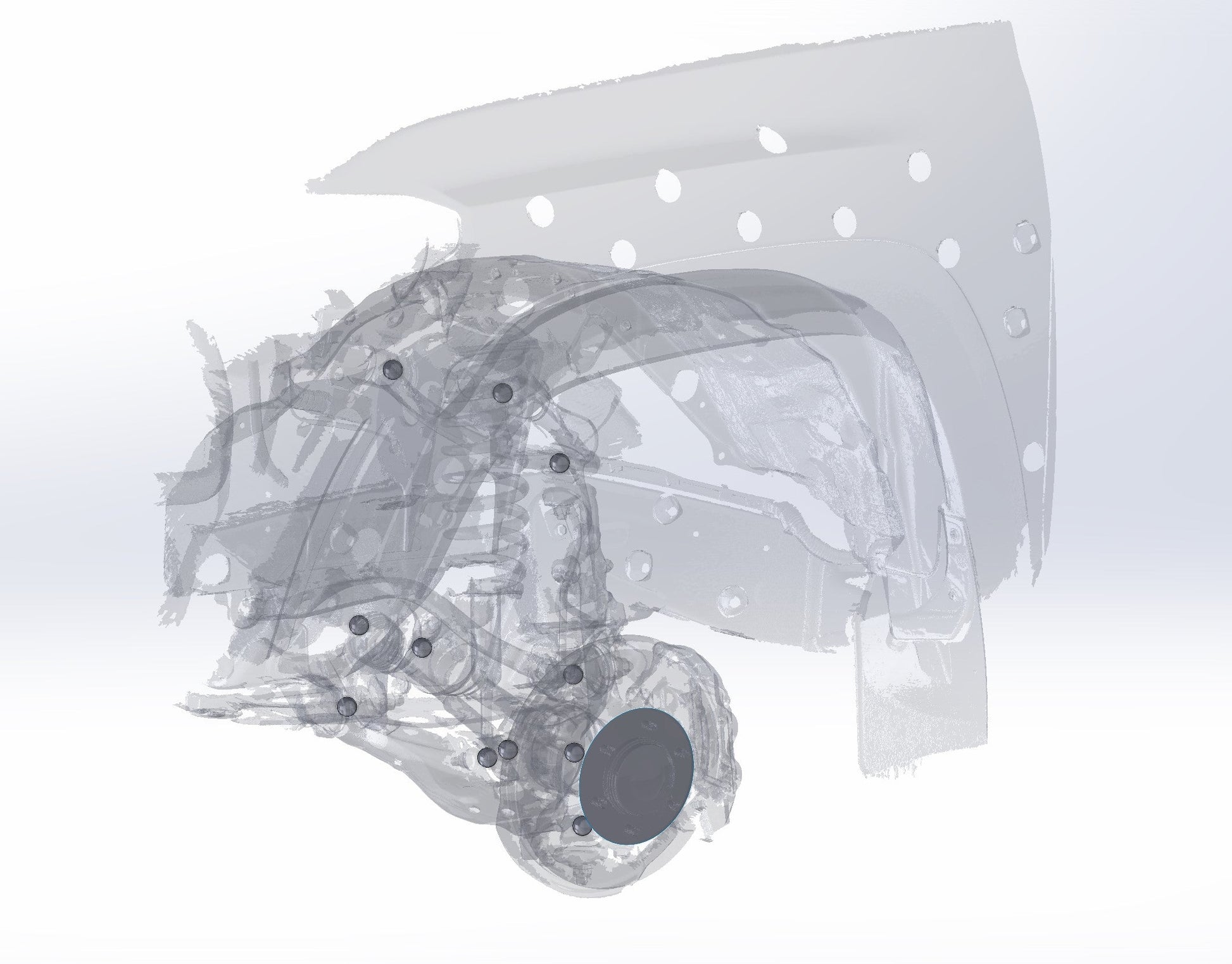

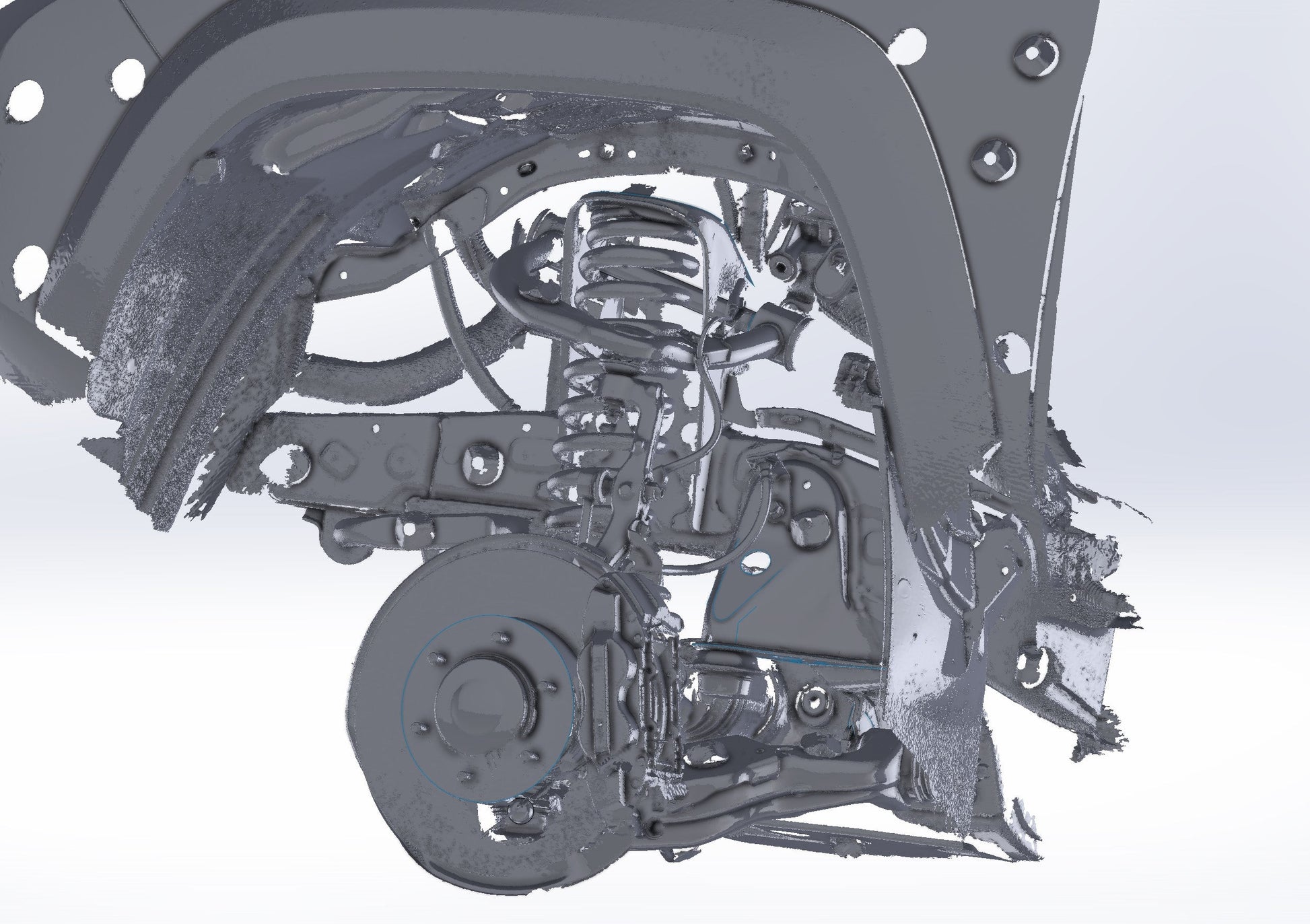

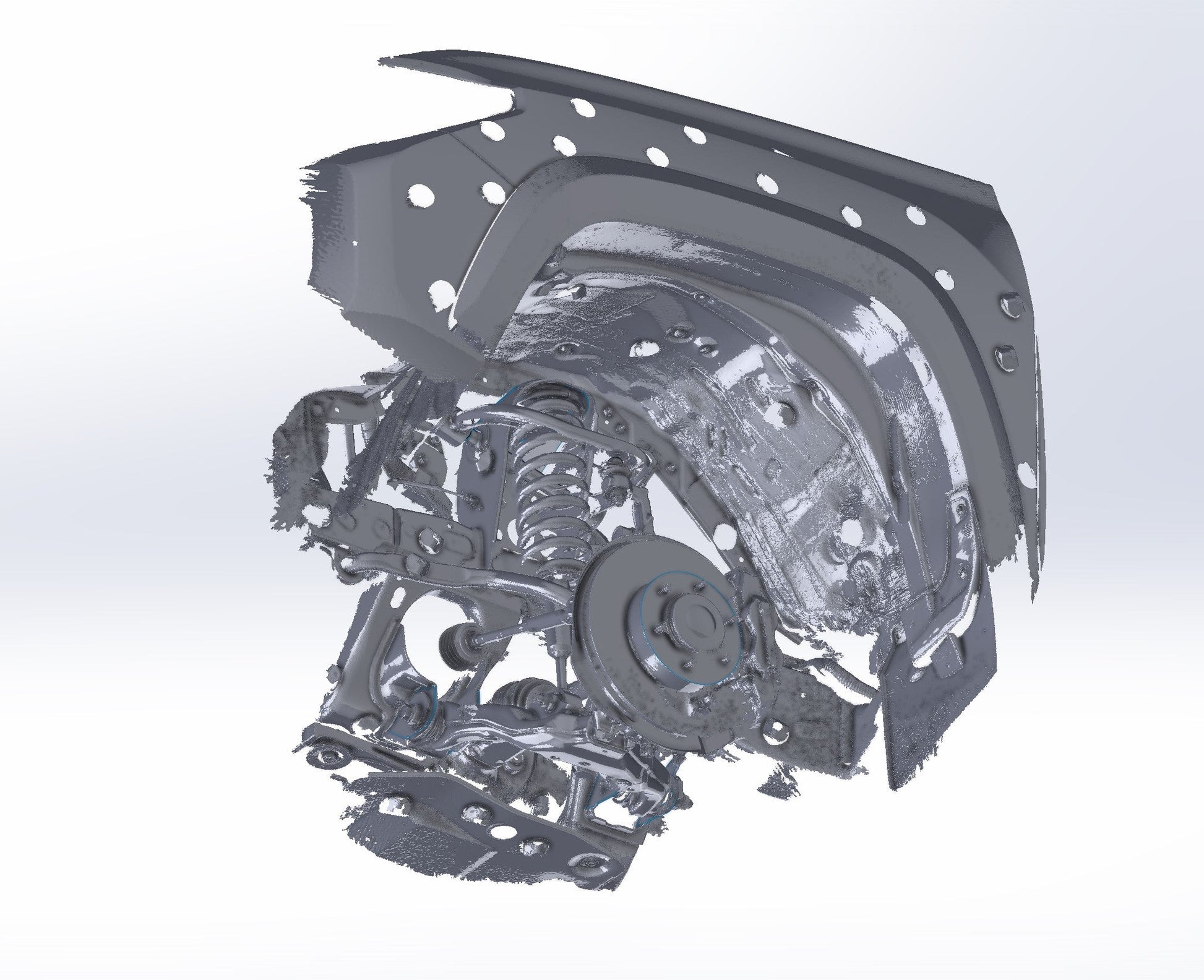

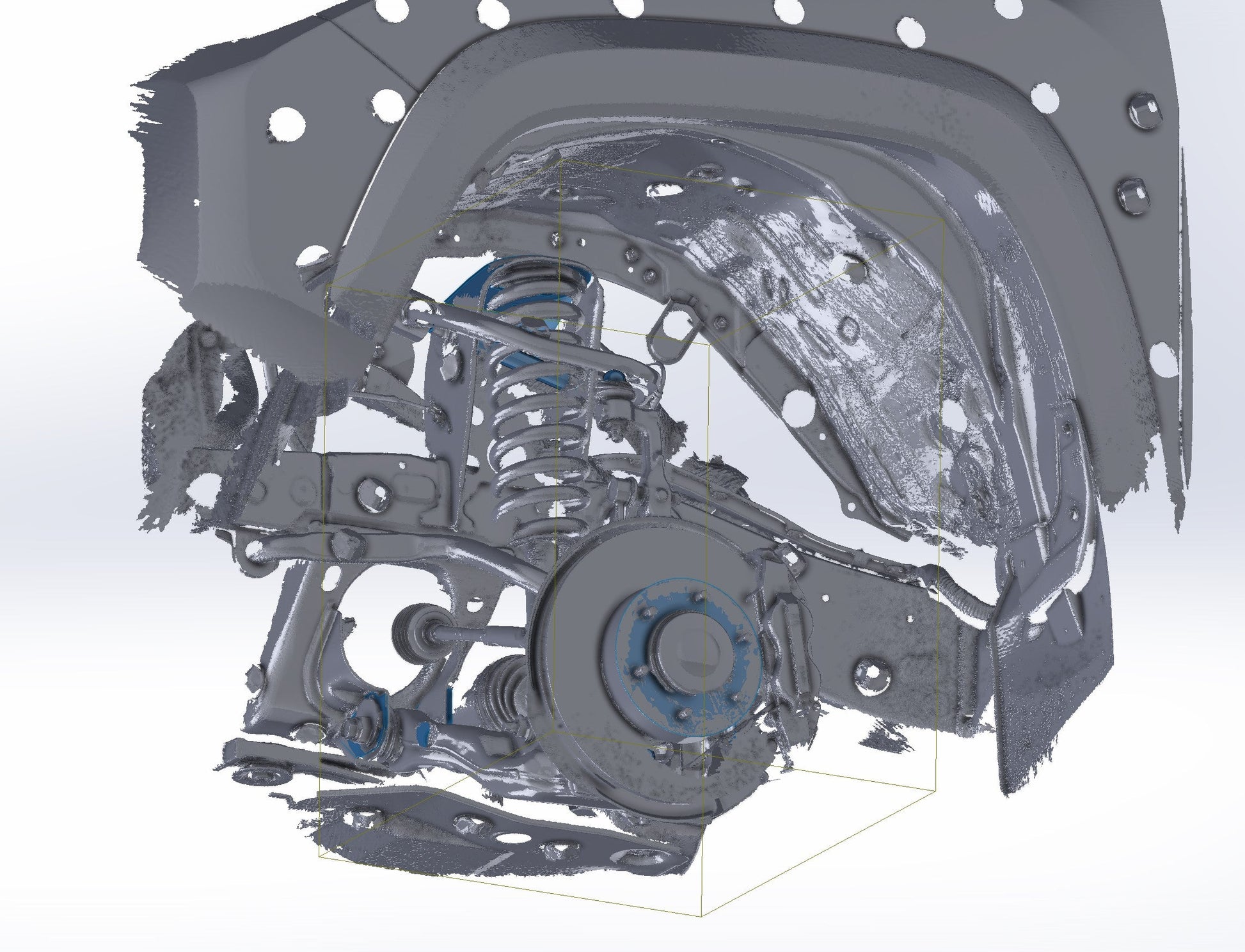

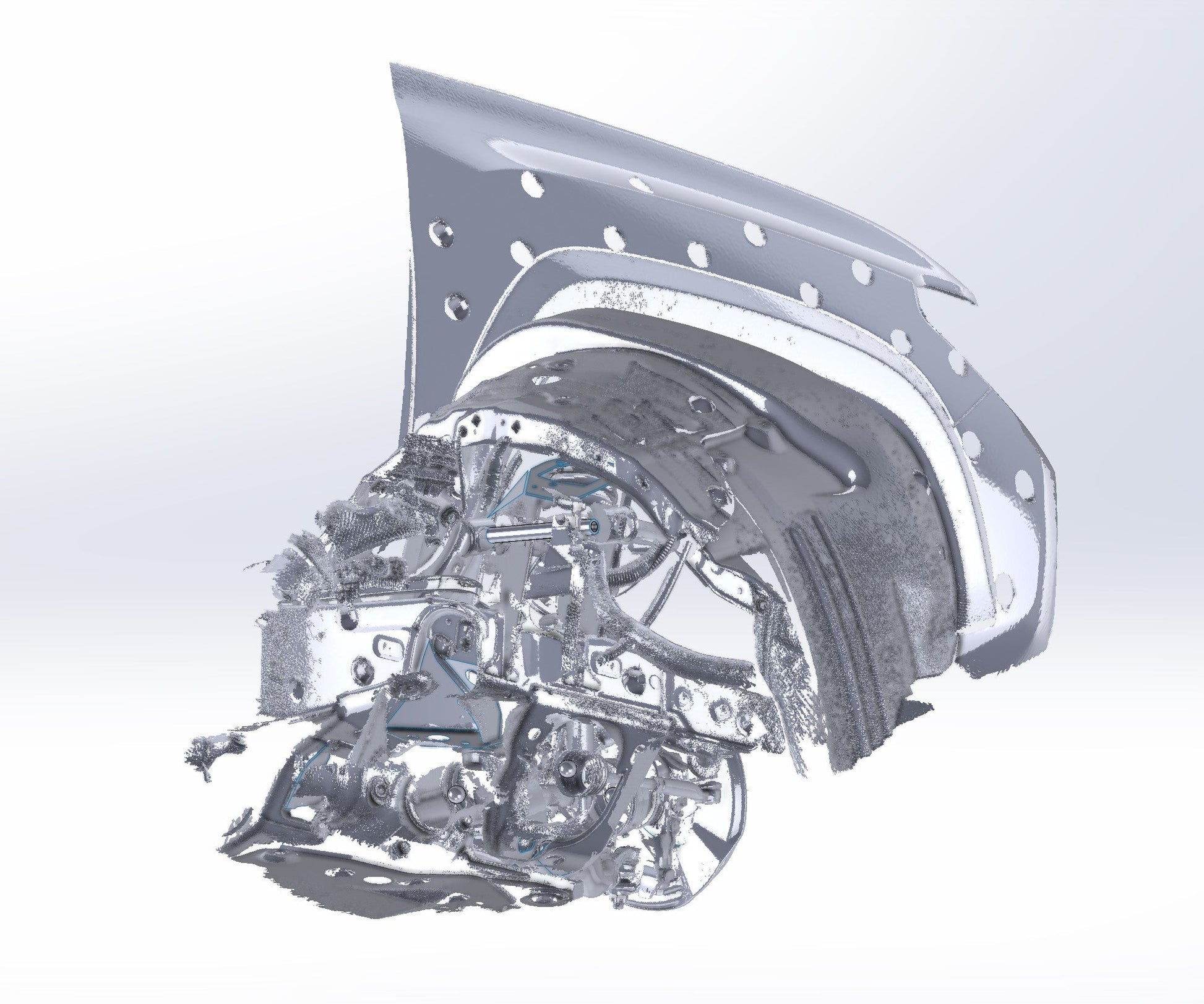

3D Scan data is from a 2020 TRD Off-Road Toyota Tacoma. Upper control arm, lower control arm, shock, spindle upright, chassis, fender, and wheel well shown at full droop (full extension) of stock suspension cycle.

Files Included:

3GTAC-SUFS-SD01-FRONT SUSP.STL

• 3D scan file of wheel well and front suspension area.

3GTAC-SUFS-SD01-UPRIGHT.STL

• 3D scan file of spindle upright. Origin alignment to match suspension at full droop. Please use "3GTAC-SUFS-SD01-SOLIDS AND SURFACES" file to define pivot locations.

3GTAC-SUFS-SD01-SOLIDS AND SURFACES.STEP

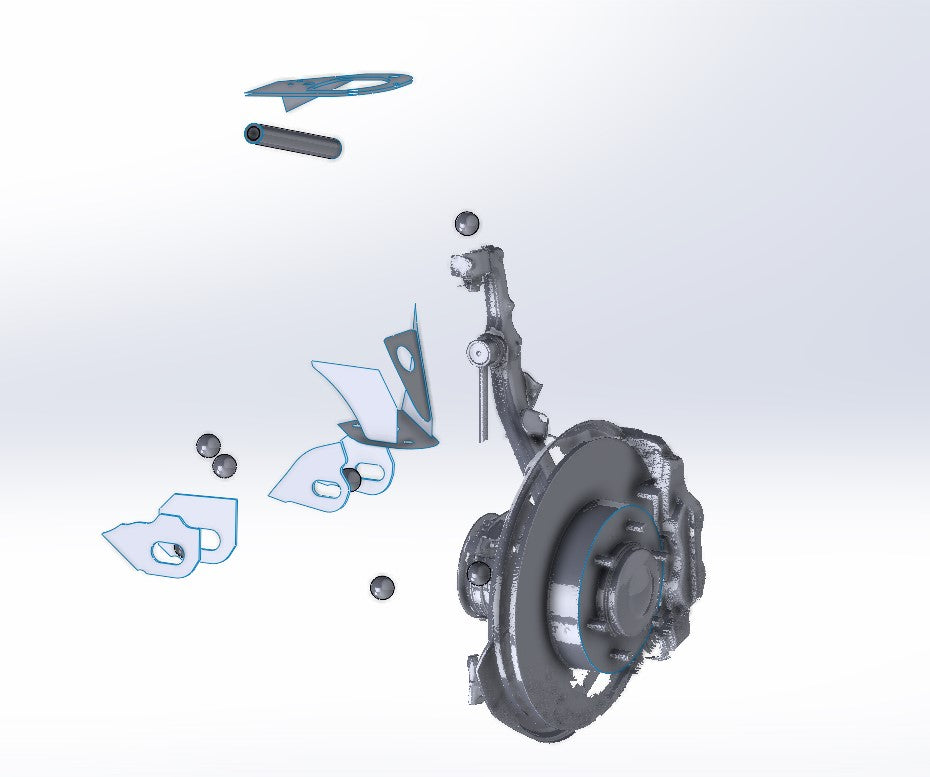

• Solid and surface body file defining front suspension pivot points (LCA, UCA, tie rod, and CV axle pivots) and important suspension features. Chassis side pivot and shock tower surfaces included.
