3D Scan: 2016-2023 Toyota Tacoma Rear Suspension and Underside (TRD Off-Road)

3D Scan data is from a 2020 TRD Off-Road Toyota Tacoma with factory e-locker, zero offset wheels and 285/70r17 tires.

Files Included:

3GTAC-SURS-SD01-REAR SUSP & UNDERSIDE.STL

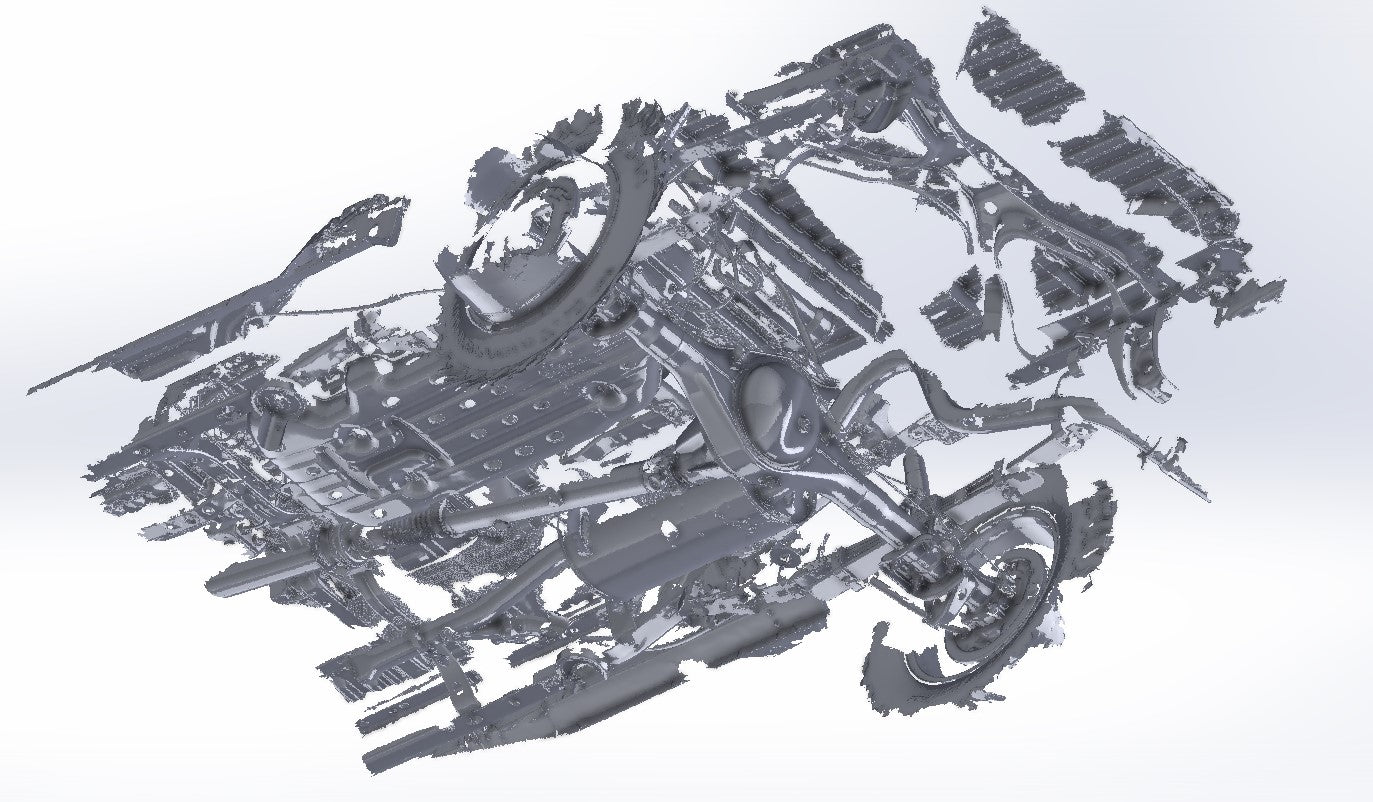

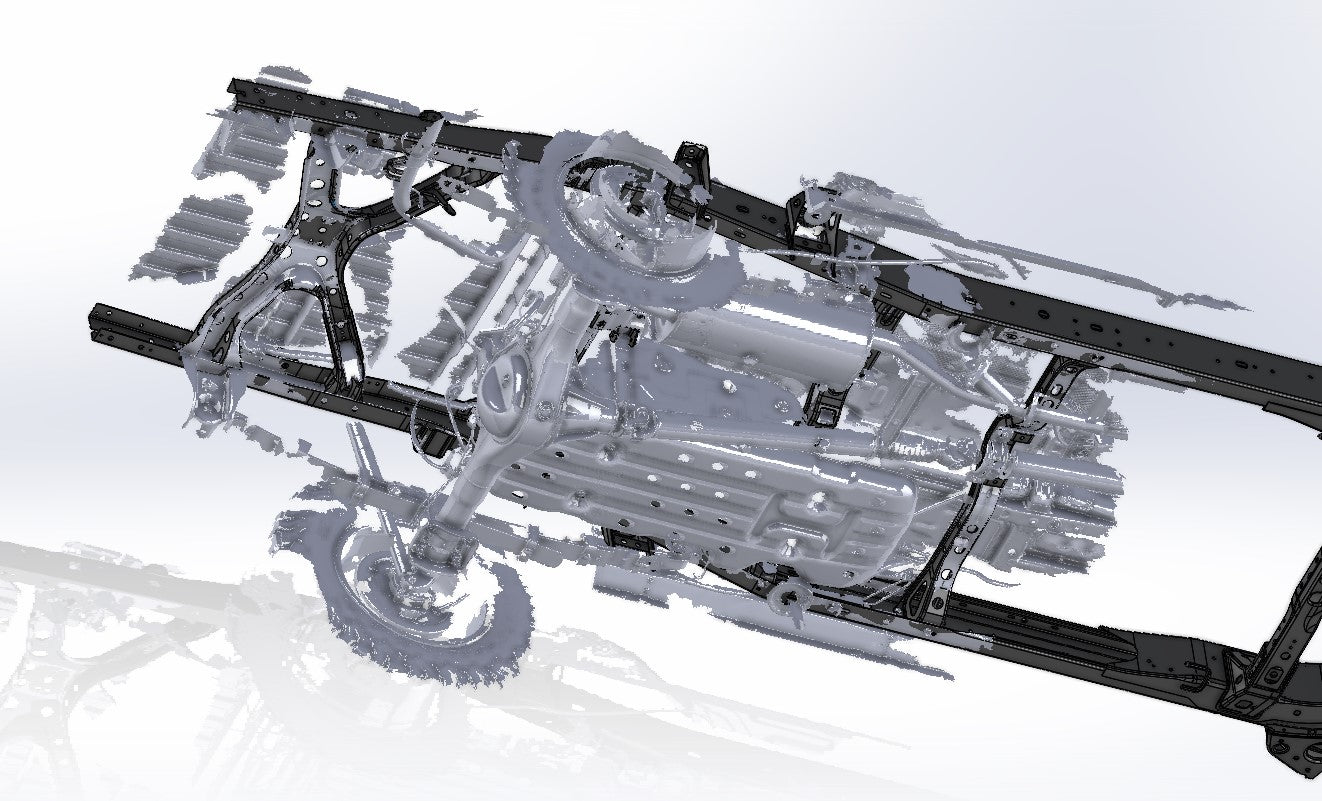

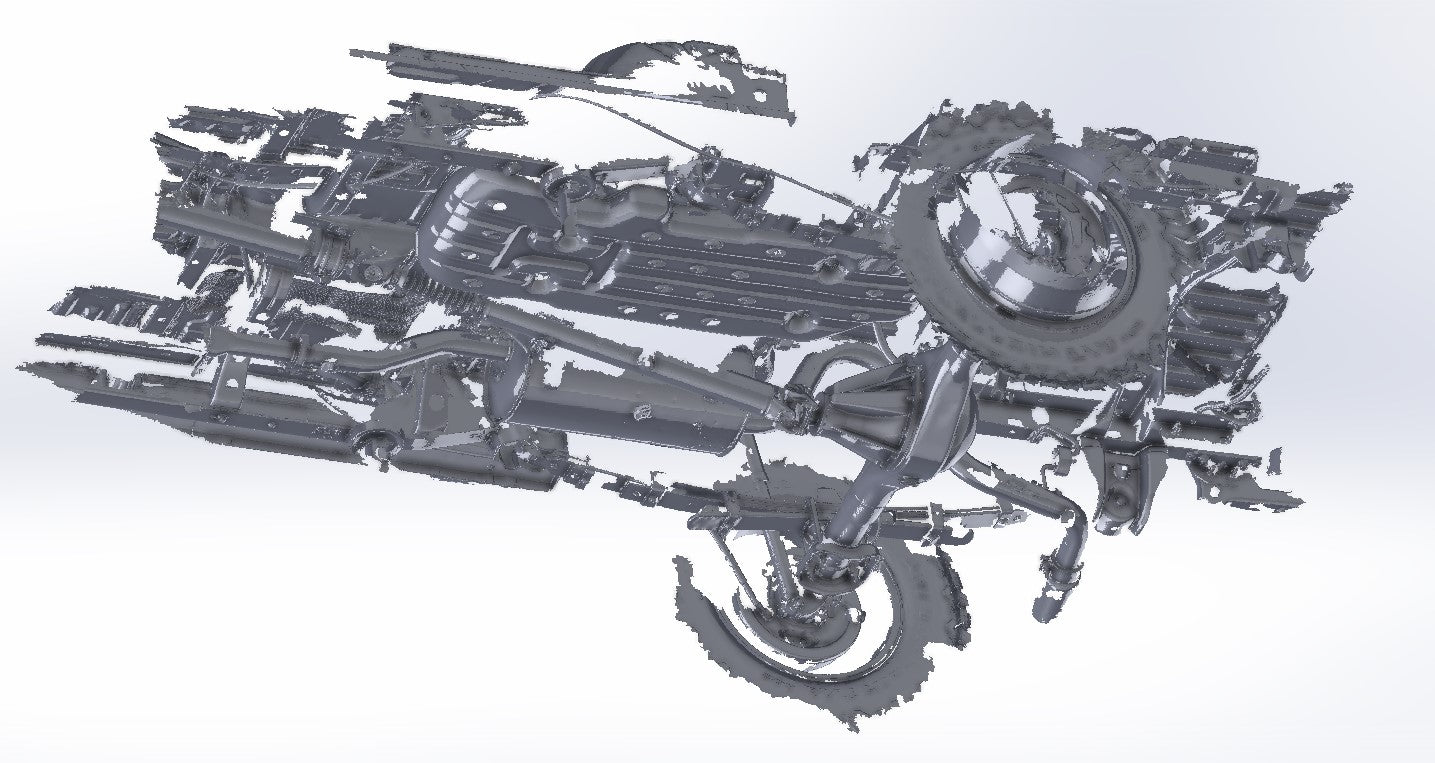

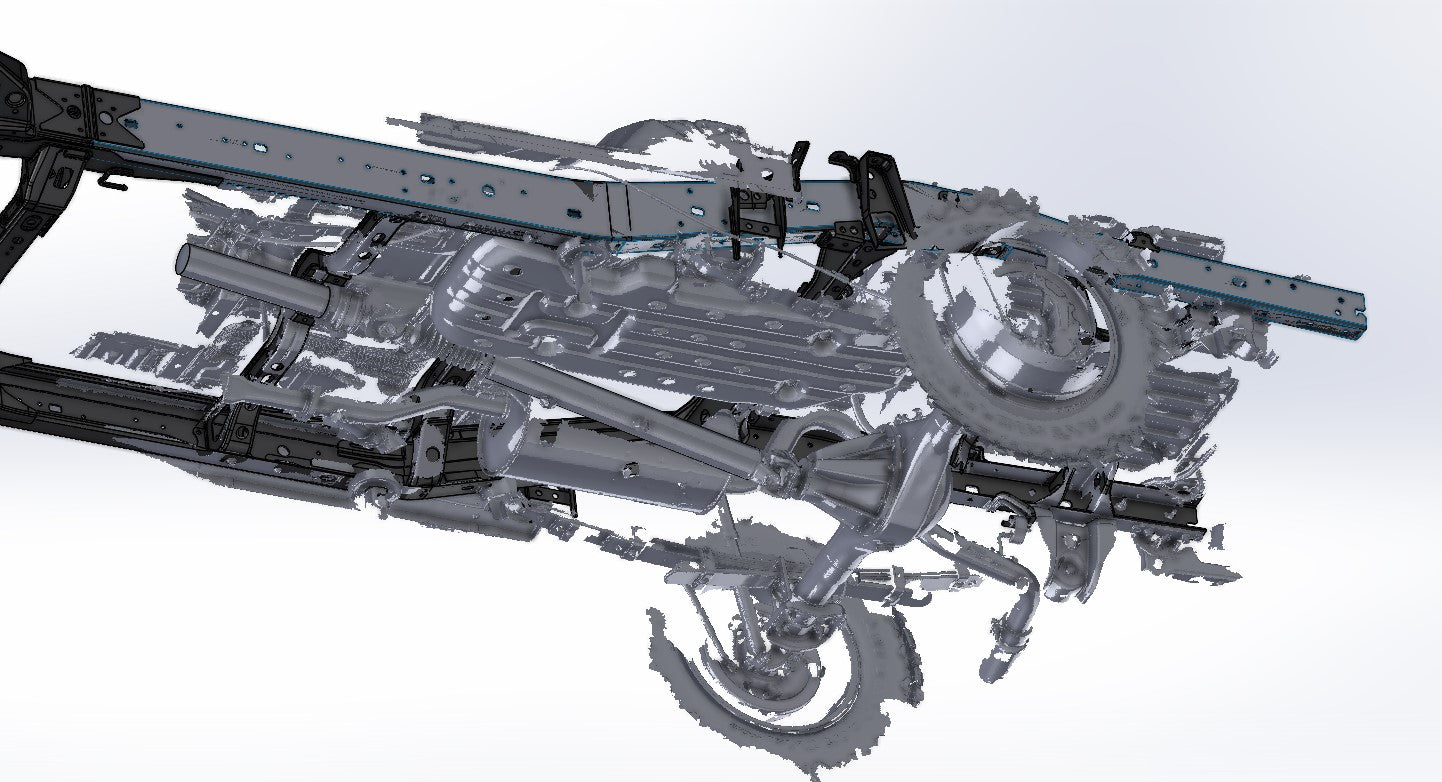

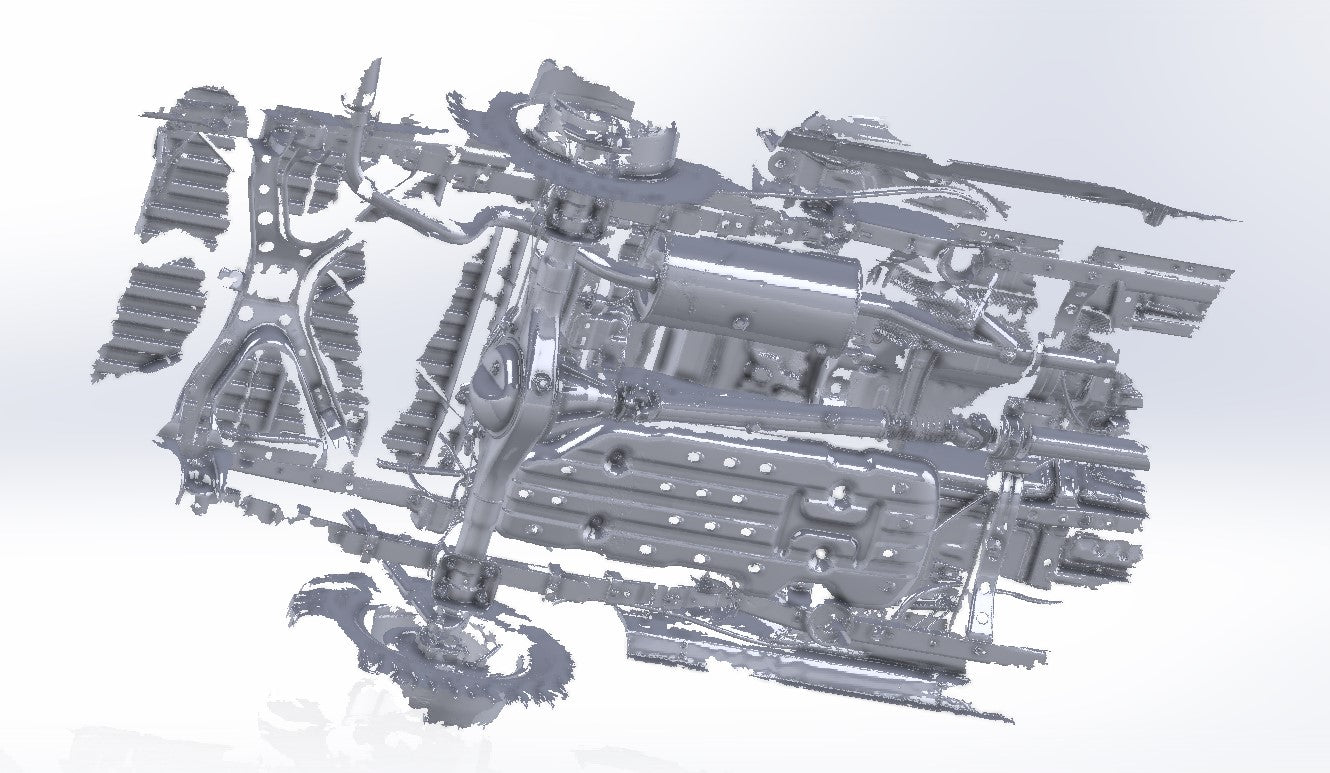

• 3D scan file of rear axle, leaf springs, chassis, cross members, fuel tank, exhaust system, and drive shafts. Accuracy within 1/4" across chassis. Recommended to use OE chassis file when designing high tolerance components.


3GTAC-SURS-SD01-SOLIDS AND SURFACES.STEP

• Solid and surface body file defining axle and drive shaft geometry.
